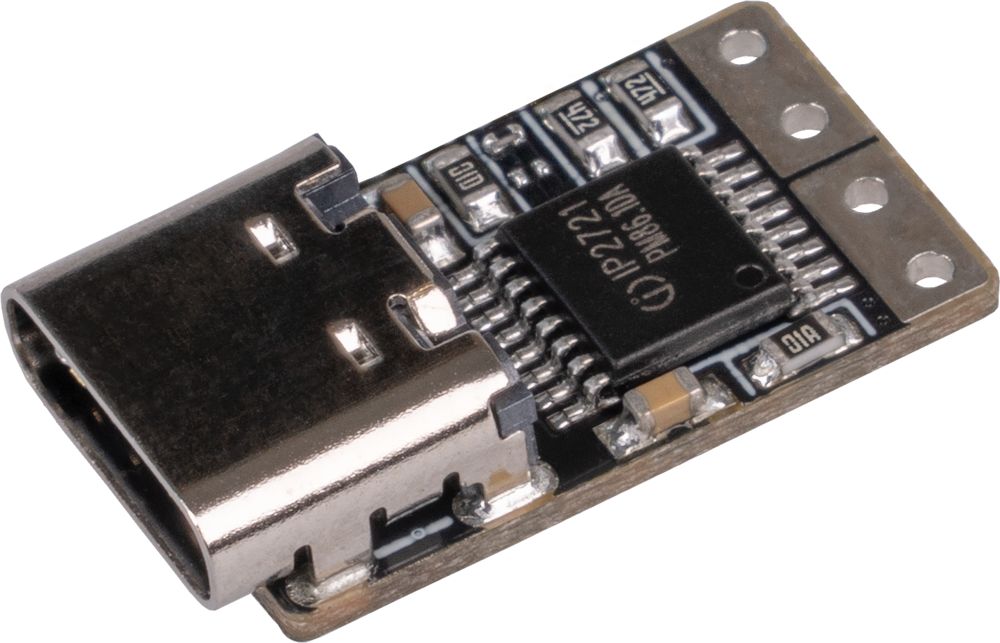

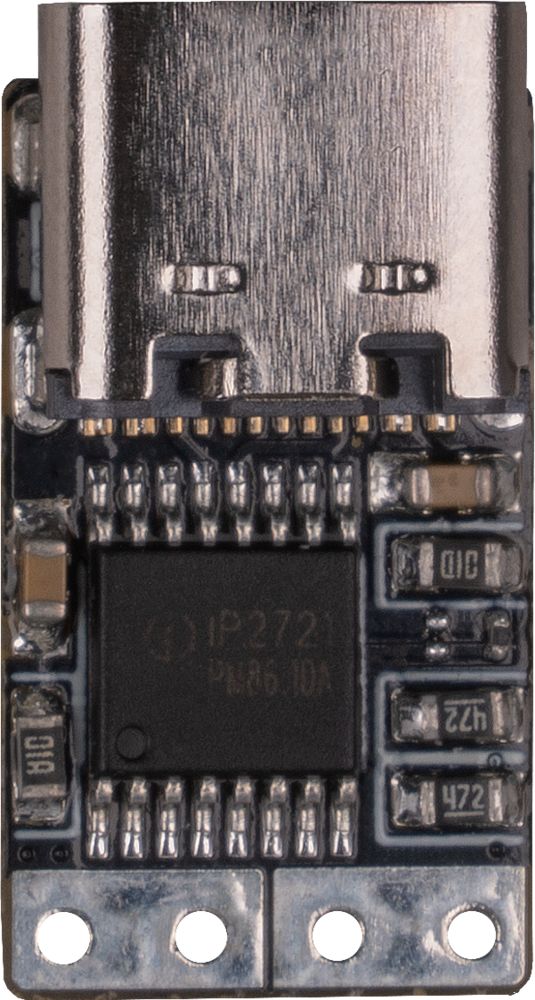

With this small module you can initiate USB-PD protocols and thus, for example, charge a laptop via a PD-compatible USB-C power supply. The output voltage can be adjusted in three steps (5 V, 15 V and 20 V) using resistors.

The module is easy to integrate thanks to its small size and flexible output connector.

Specifications

• OUTPUT VOLTAGE: 5 V / 15 V / 20 V (adjustable with resistors 0201 Imp.)
• INPUT VOLTAGE: (up to 20 V / 100 W) USB-PD compatible power supply (not included)
• OUTPUT CURRENT: 5 A at 20 V, 3 A below 20 V
• OUTPUT POWER: up to 100 W
• INPUT CONNECTOR: USB-C
• OUTPUT CONNECTOR: Solder pins
• SPECIAL FEATURES: Adjustable output voltage
• Dimensions: 19 x 10 x 5 mm
• Included in the package: COM-ZYPDS module
