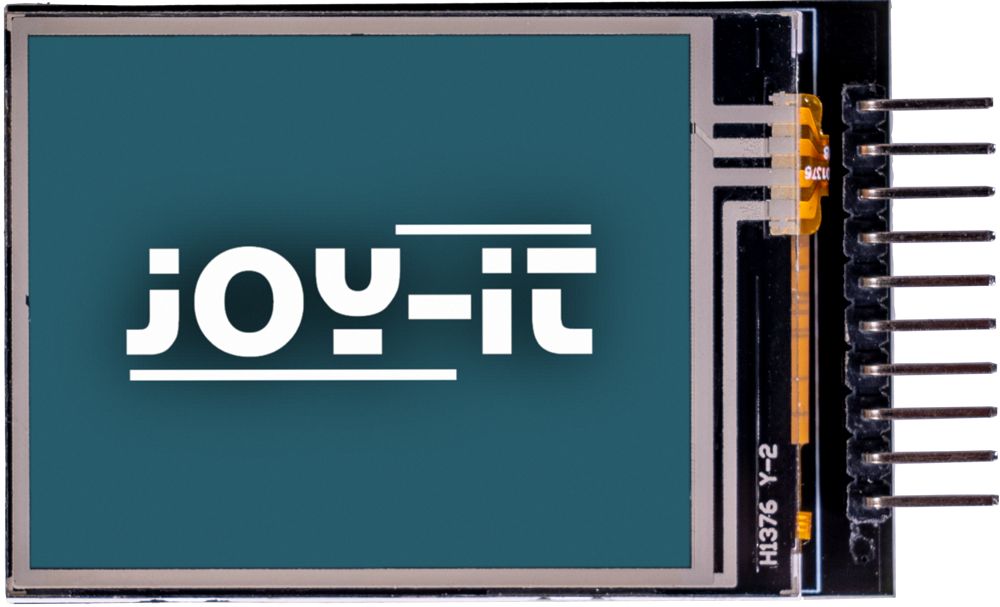

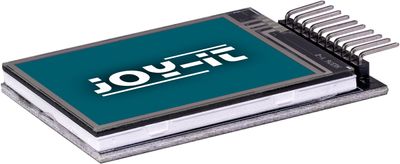

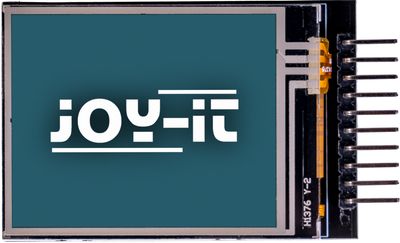

This small LCD touchscreen is perfect for your Micro:bit, Raspberry Pi, or Arduino project. The TFT display has a size of 4.57 cm (1.8") and is widely usable in your projects thanks to its SPI interface. It can show 262 000 colours and offers a maximum resolution of 128x160 pixels.

Specifications

• DISPLAY: 1.8" (4.57 cm)
• VISIBLE AREA: 28.03 x 35.04 mm
• RESOLUTION: 128 x 160 pixels
• CONTRAST: 1:400
• SCREEN: JD-T18003-T01
• DRIVER: ST7735R
• TOUCH CONTROLLER: XPT2046
• TOUCH TECHNOLOGY: Resistive
• POWER SUPPLY VOLTAGE: 3.3 V
• LOGIC VOLTAGE: 3.3 V
• COLOURS: 262 000
• INTERFACE: SPI
• COLOR: Black
• SPECIAL FEATURES: LED backlight, touch function
• COMPATIBLE WITH: Raspberry Pi, micro:bit, Arduino (3.3 V logic)
• DIMENSIONS: 57 x 5 x 35 mm
• SUPPLIED ITEMS: 1.8" touchscreen

Links

• RB-TFT1.8-T Datasheet (English)
