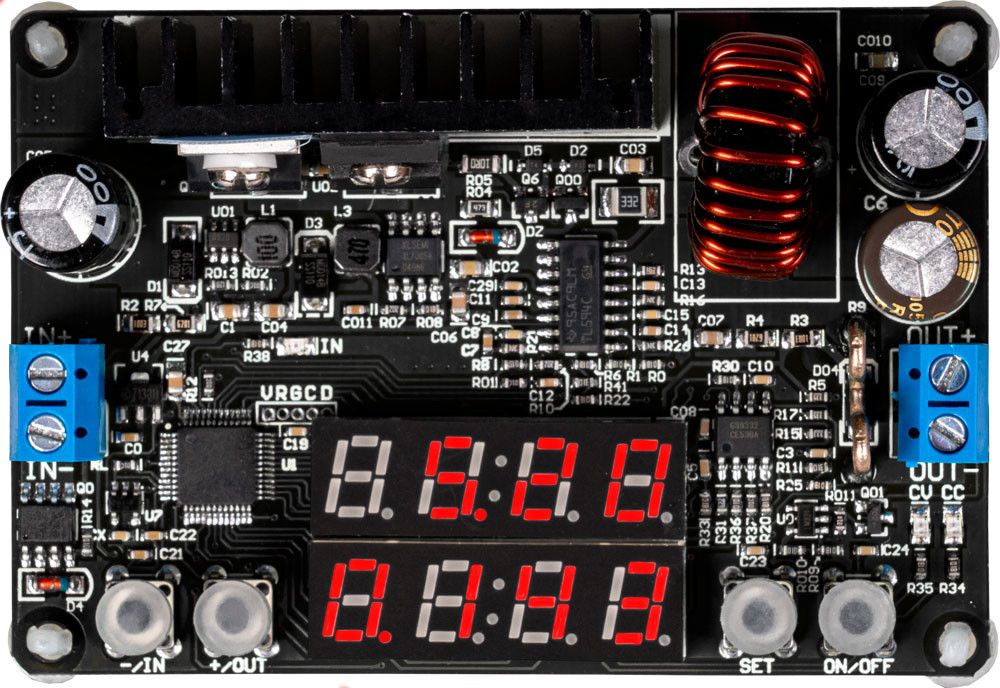

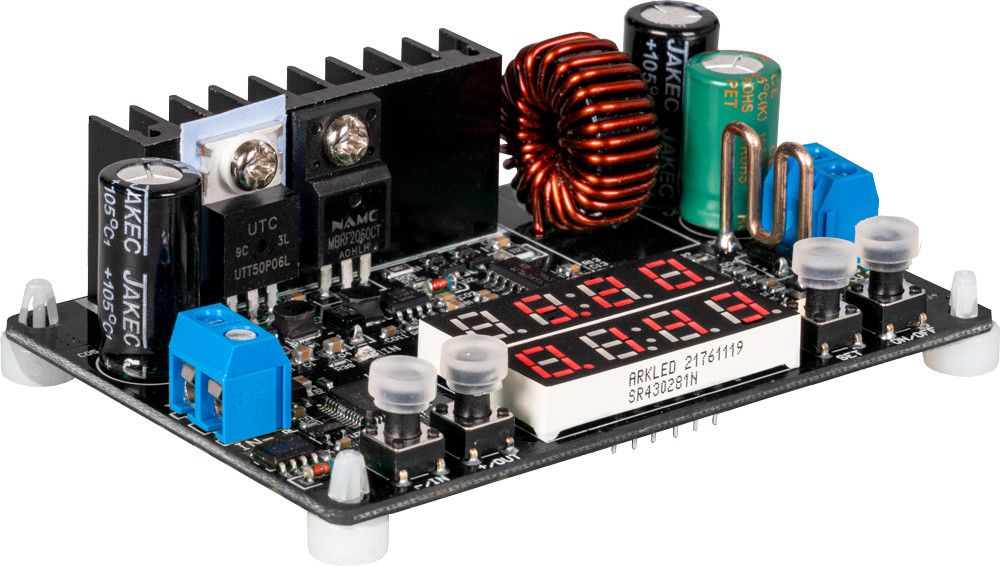

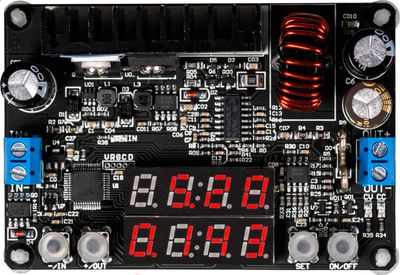

This voltage converter module can convert input voltages from 6 - 40 V down to an output voltage of 0 - 32 V.

The segment can show input and output voltage as well as output current.

The module can be used in constant voltage or constant current mode.

Main features

• Model: Step-down converter with adjustable output
• Special feature: Current and voltage display on the module, Constant voltage and constant current operation
• Dimensions: 85 x 58 x 26 mm
• Weight: 67 g
• Items delivered: Voltage converter module

Further specifications

• Input voltage: 6 - 40 V
• Output voltage: 0 - 32 V
• Output current: Max. 5 A
• Output power: Max. 160 W
• Connector: 2 x 2 pin screw terminal
• Output voltage resolution: 0,01 V
• Output current resolution: 0,001 A
• Output voltage accuracy: ± (0,5% +3 digits)
• Output current accuracy: ± (1% +5 digits)
• Residual ripple (at 40 V to 32 V / 5 A): 100 mVpp
• Input to output voltage ratio: x1,1

Note! Not for professional use, not to be used as part of a functioning device.
