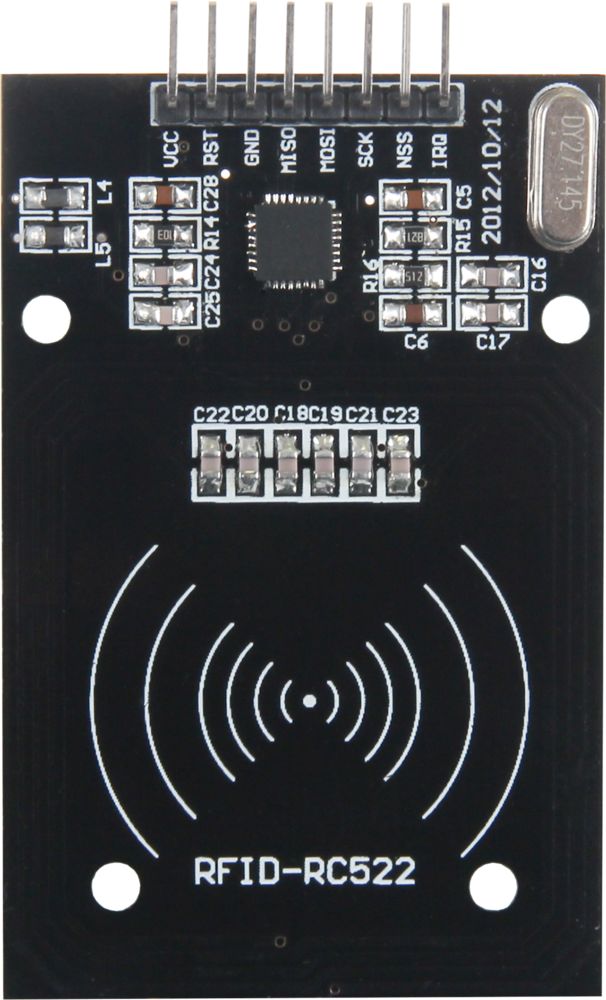

The RFID module is equiped with an integrated NXP MFRC-522 and communicates with SPI. It is based on the Mifare-protocol and allows the reading and writing of RFID-tags.

Specifications

• Frequency: 13.56 MHz
• Communication: SPI
• RFID Protocol: Mifare
• Compatible to: Arduino, Raspberry Pi A, A+, B, B+, 2B, 3B, 3B+, 4B
• Dimensions: 40 x 60 x 8 mm
• Weight: 24 g
• Items Shipped: Module, RFID Chip, RFID Card
• EAN: 4250236813158

Links

• SBC-RFID-RC522 Manual English
