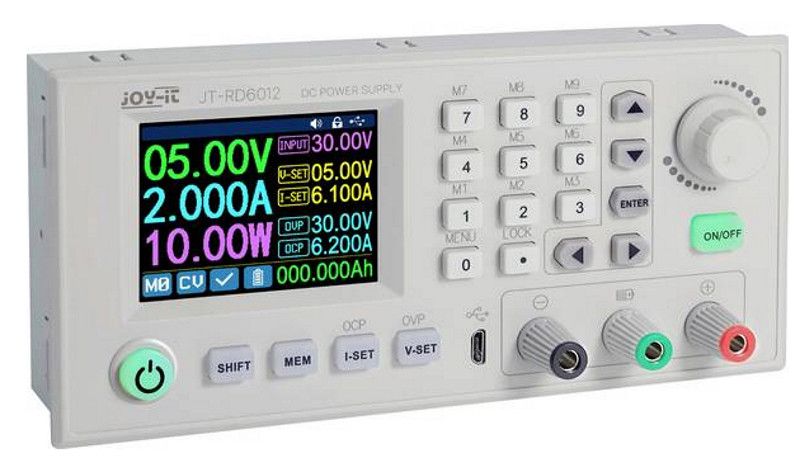

Laboratory power supply JT-RD6012 can provide up to 60V and 12A of power as a high-performance DC power supply. This power supply has a keypad that makes operation more pleasant and provides access to 9 storage slots, a USB interface that allows easy control of the device from PC software, and a battery charging function.

The device includes various protection and limiting features such as constant voltage, constant current and overvoltage protection, overcurrent protection, and replaceable fuses on the circuit board itself (rear of the PSU).

Enclosure and Wifi module are available as accessories as follows. JT-RD6012-Case1 provides additional space for the power supply. The Wifi module enables use with a smartphone app.

Features

• Model: RD6012
• Features: Battery charging function, value entry conveniently via keypad, adjustable overcurrent / overvoltage protection, integrated RTC (requires CR1220 battery), NTC temperature sensor
• Dimensions: 167 x 81 x 65 mm
• Weight: 650 g
• Scope of delivery: JT - RD6012, NTC - Temperature sensor

Specifications

• Input voltage: 6 - 70 V
• Output voltage: 0 - 60 V
• Output current: 0 - 12 A
• Output power: 0 - 720 W
• Voltage resolution: 0.01 V
• Current resolution: 0.001 A
• Capacity measurement range: 0 - 9999.99 Ah
• Energy measurement range: 0 - 9999.99 Wh
• Residual ripple: 100 mV(pp) (at maximum capacity)
• Display: 2.4-inch LCD
• Optional accessories: Enclosure, Wifi module
• Operating temperature range: -10 - 40 °C

Note! Based on a buck step-down converter. Requires an external DC power source to operate, e.g. 65V 12A to utilize the full 60V output voltage (see below)
