Made of stainless steel and meets protection ratings IP67 ( dust and water ), IK10 ( impact ) and PA66 ( flame ).

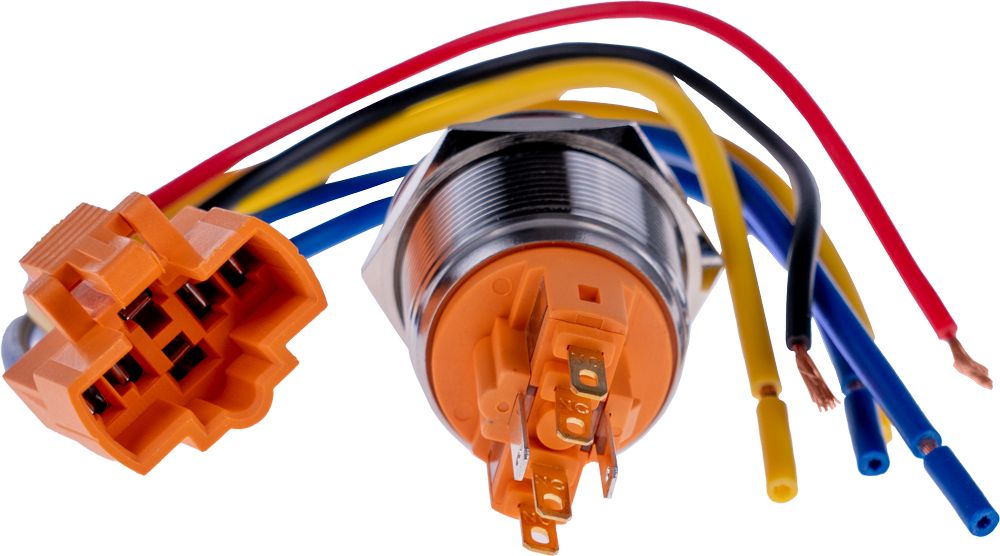

Required connection cables, sealing ring and nut are included in the delivery.

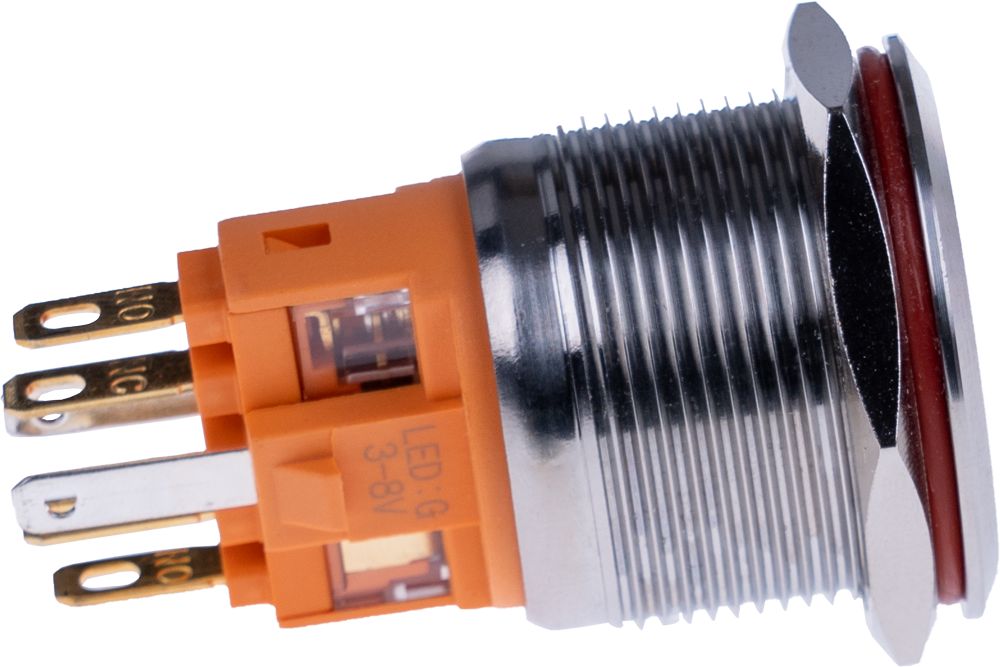

The construction is disassemblable, so the LED wiring can be modified.

Specifications

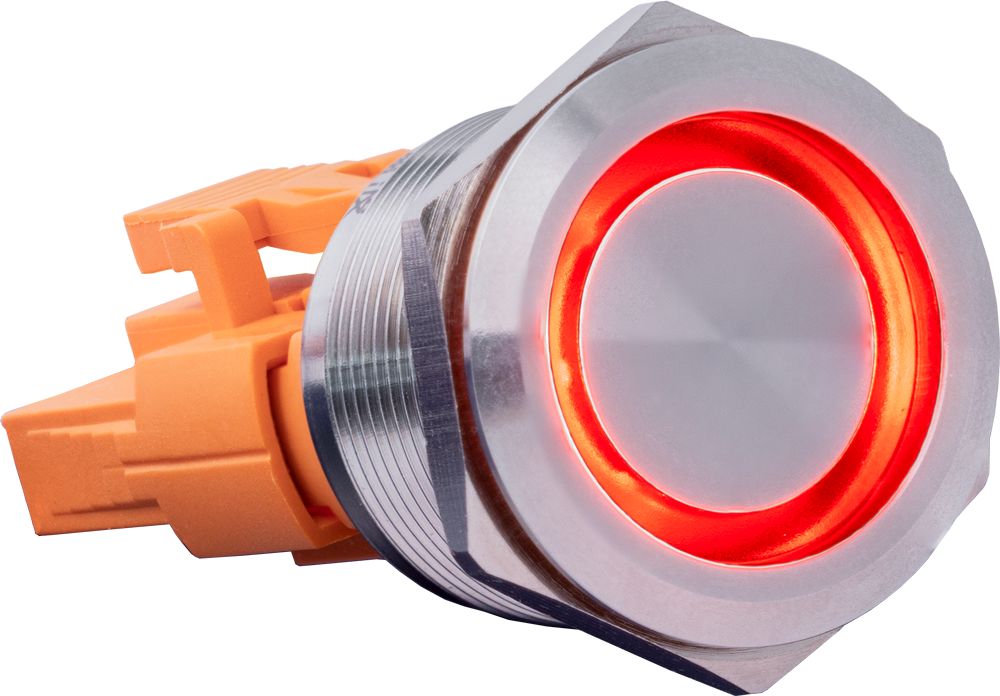

• BRIGHT RED LED RING
• OPERATION: MOMENTARY
• BUTTON TRAVEL: 3,1 mm
• SWTICHING CURRENT: 7 A
• 7 A / 250 V RESISTIVE, 2 A / 250 V INDUCTIVE
• LED OPERATING VOLTAGE: 3 - 8 V DC (requires series resistor at higher voltages)
• LED LIFETIME: >40 000 hours
• INSULATION RESISTANCE: ≥ 1000 MΩ
• WITHSTAND VOLTAGE: >1000 V AC
• CONTACT RESISTANCE: ≤ 50 mΩ
• BODY MATERIAL: STAINLESS STEEL
• CONNECTOR MATERIAL: PA66 (heat resistance 240°C)
• PROTECTION RATING: IP67, IK10
• NUT TIGHTENING TORQUE: 5 - 14 Nm
• MOUNTING HOLE DIAMETER: Ø 22.2 x ≤12 mm
• DIMENSIONS: Ø 25 x 40,4 mm
• WEIGHT: 38 g
