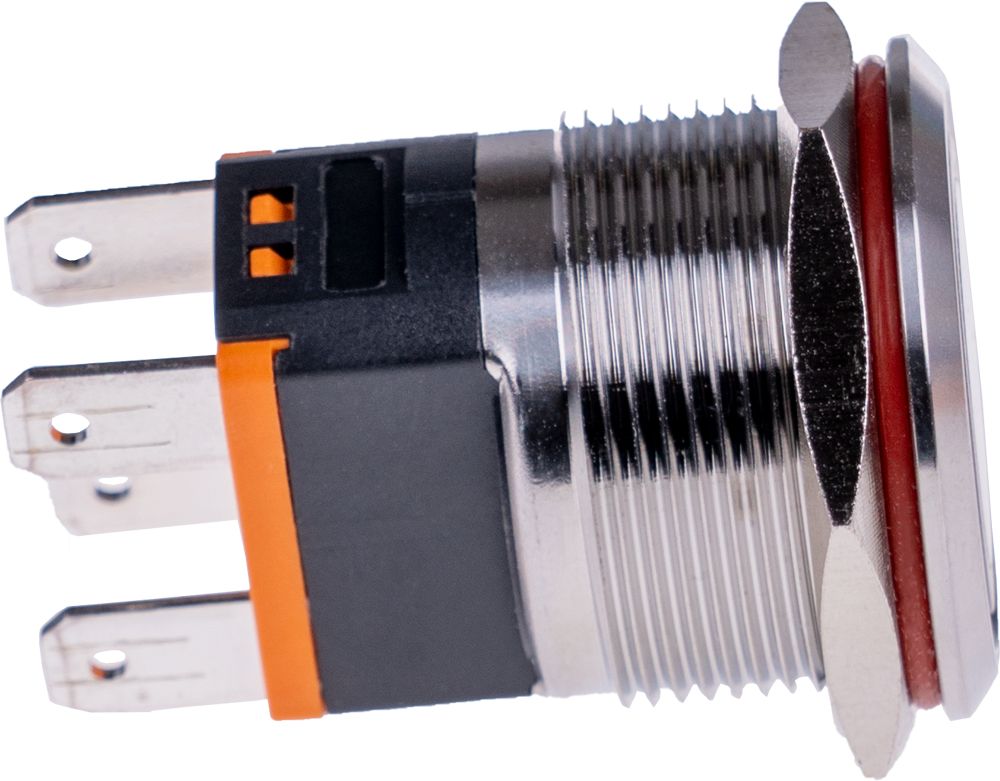

Made of stainless steel and meets protection classes IP67 (dust and water), IK10 (impact) and PA66 (flame).

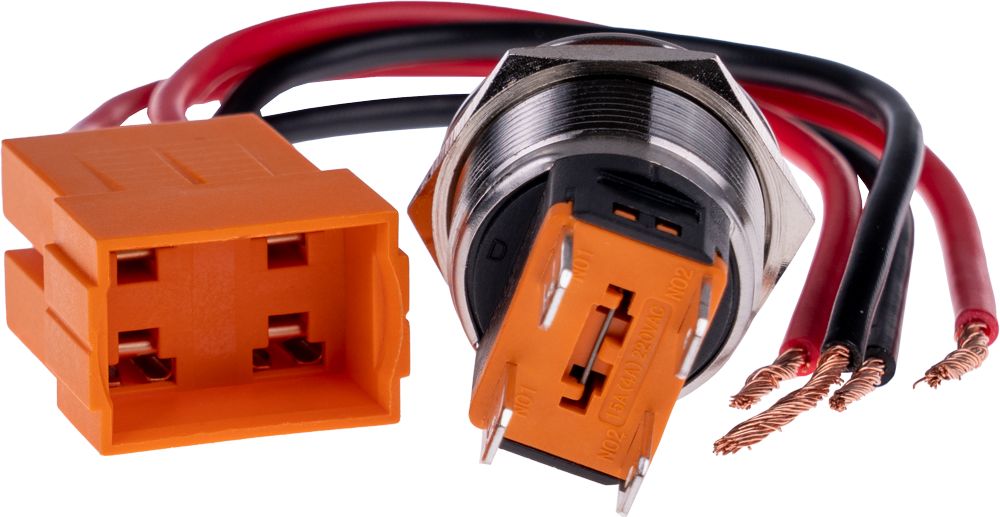

Required connection cables, socket, sealing ring and nut are already included in the delivery.

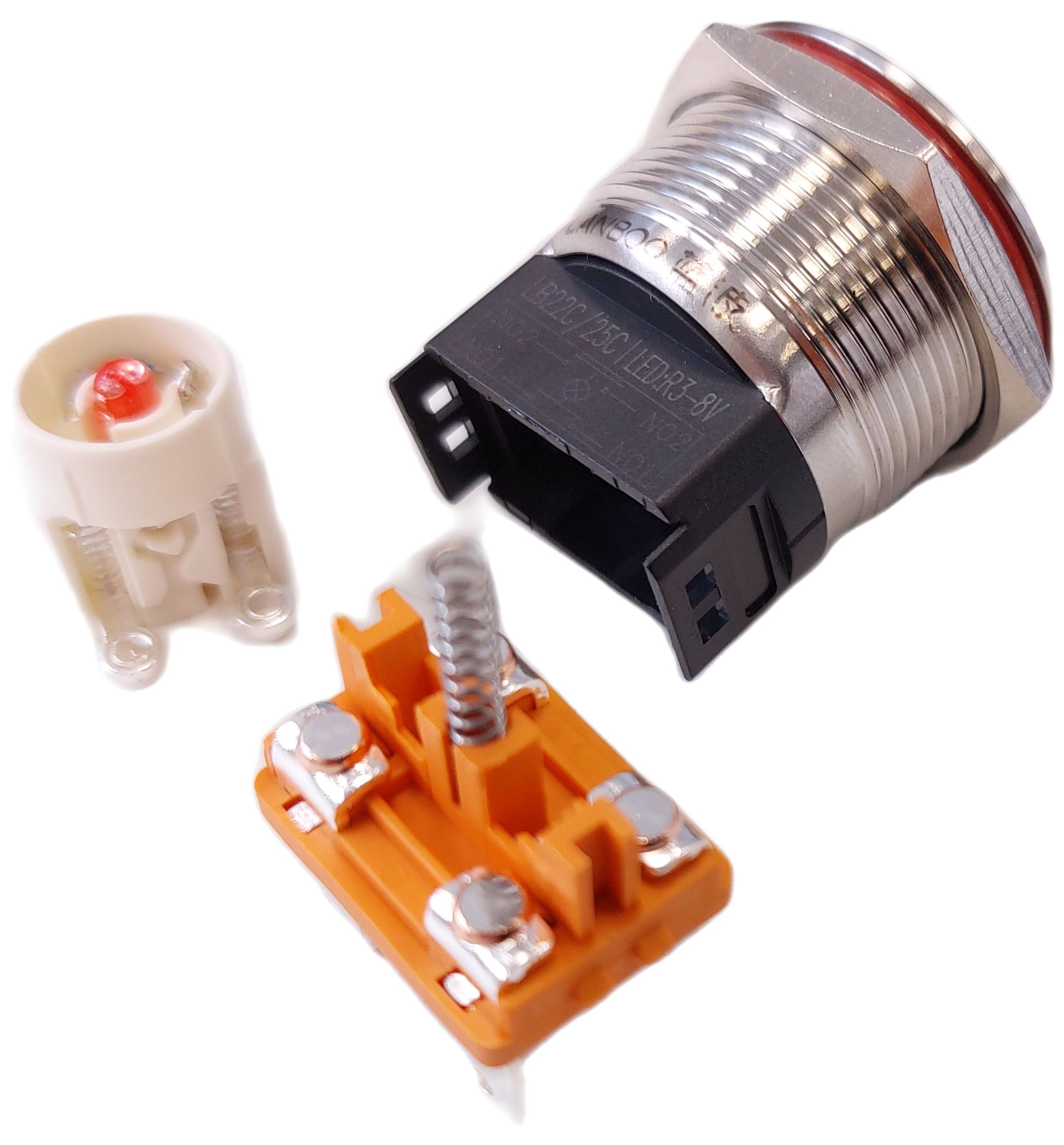

The construction can be disassembled, so the LED wiring can be modified.

Specs

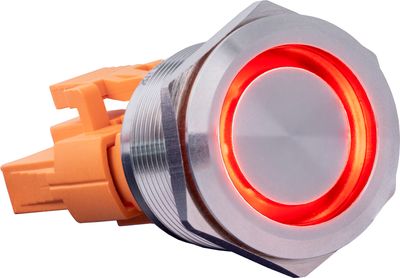

• BRIGHT RED LED RING
• OPERATION: MOMENTARY
• BUTTON TRAVEL: 3.5 mm
• SWITCHING CURRENT: 15 A
• 15 A / 250 V RESISTIVE, 4 A / 250 V INDUCTIVE
• LED OPERATING VOLTAGE: 3 - 8 V DC
• LED LIFETIME: 40,000 hours
• INSULATION RESISTANCE: ≥ 1000 MΩ
• WITHSTAND VOLTAGE: >1000 V AC
• CONTACT RESISTANCE: ≤ 50 mΩ
• CONNECTOR MATERIAL: PA66 (heat resistance 240°C)
• PROTECTION RATING: IP67, IK10
• NUT TIGHTENING TORQUE: 5 - 14 Nm
• MOUNTING HOLE DIAMETER: Ø 22.2 x ≤9 mm
• DIMENSIONS: Ø 24.8 x 34.5 mm
• WEIGHT: 42 g

Links

• Button22C-M-RD Datasheet English
• Button22XXX Manual (English)

NOTE! Use as bipolar max. 8VDC.
