Joy-IT MEMS MICROPHONE MODULE (ADMP401)

Name: Joy-IT MEMS MICROPHONE MODULE (ADMP401)
Brand: Joy-IT
SKU: COM-MIC-ADPM401
Price: 18.15 EUR
Availability: InStock

In stock under 5 pcs

SKU#: COM-MIC-ADPM401

Joy-IT MEMS MICROPHONE MODULE (ADMP401)

In stock under 5 pcs

SKU#: COM-MIC-ADPM401

Joy-IT COM-MIC-ADPM401

18,15 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

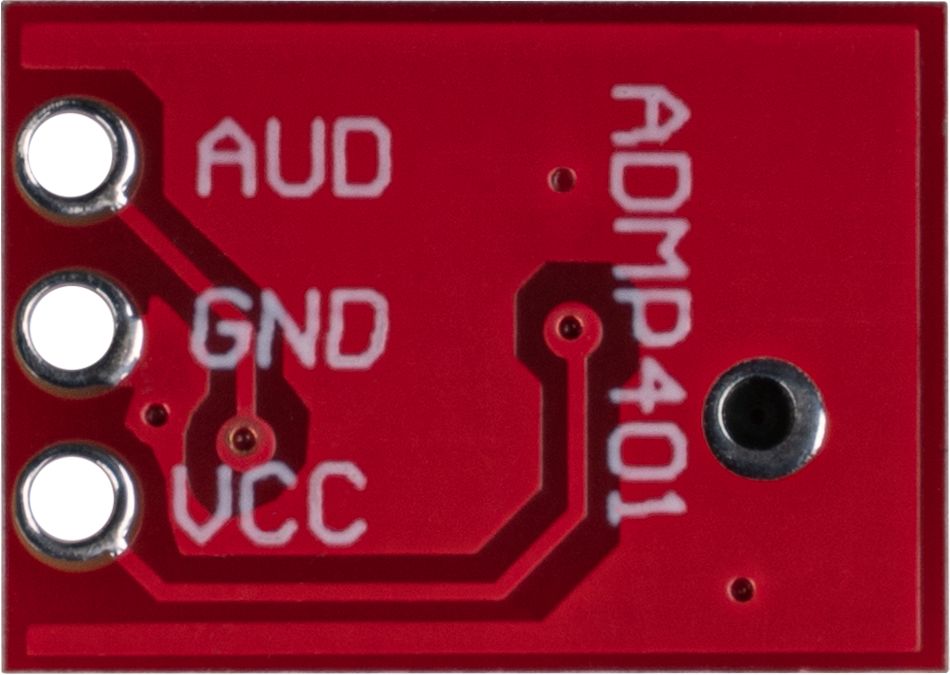

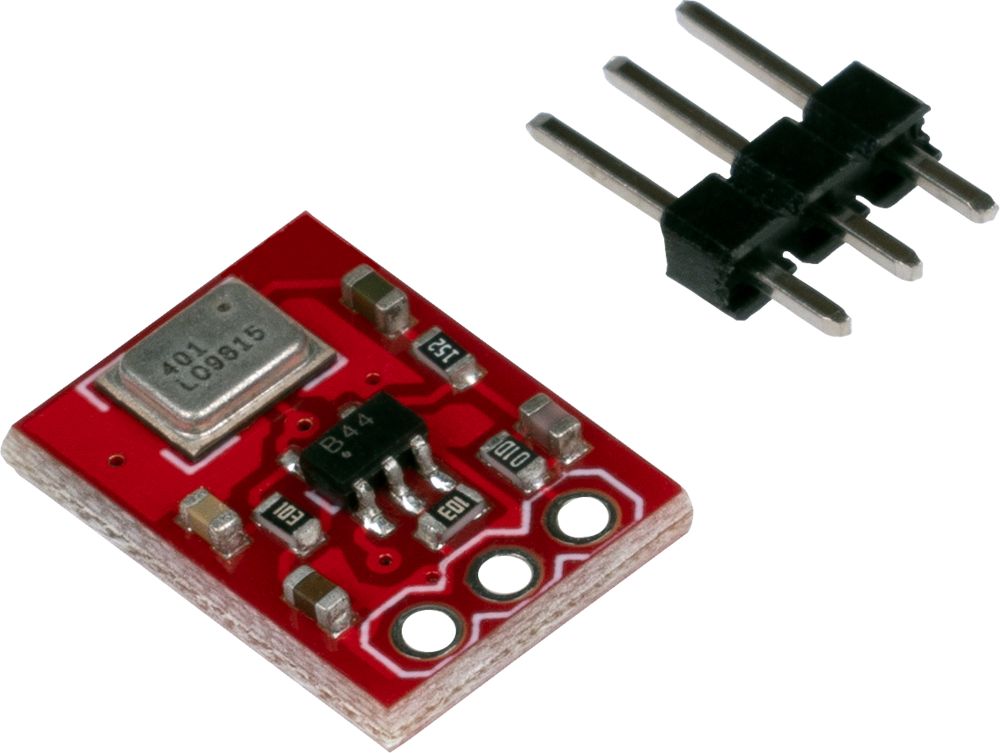

This small breakout board features the ADMP401 MEMS microphone. One of the main advantages of this breakout and microphone is the bottom-port input. This means the microphone’s input sits flush with the enclosure of your project. Thanks to the closed pin terminals, this microphone is versatile in its applications.

Technical specifications

MODEL: ADMP401 MEMS Microphone omnidirectional
SPECIAL FEATURES: Small dimensions
POWER SUPPLY: 1.5 - 3.3 V DC
CURRENT CONSUMPTION: 250 μA
SIGNAL-TO-NOISE RATIO (SNR): 62 dBA
MAXIMUM SOUND PRESSURE LEVEL: 120 dB SPL
INPUT NOISE (EIN): 32 dBA SPL
TOTAL HARMONIC DISTORTION (THD): 3% at 105 dB SPL
ANTI-ALIAS FILTER: -3 dB at 60 Hz and 15 kHz
OPERATING TEMPERATURE: -40 - 85 °C
Dimensions: 14 x 10 x 10 mm

Product Information

Availability In stock
Manufacturer Joy-IT
EAN 4250236822013
Product path Home Accessories AV Accessories Microphones Joy-IT MEMS MICROPHONE MODULE (ADMP401)
SKU COM-MIC-ADPM401
Attributes
- Operating temperature -40...+85°C
- Manufacturer's model COM-MIC-ADPM401
- Click for more details https://www.joy-it.net/en/products/COM-MIC-ADPM401
- Dimensions 14 x 10 x 10 mm
