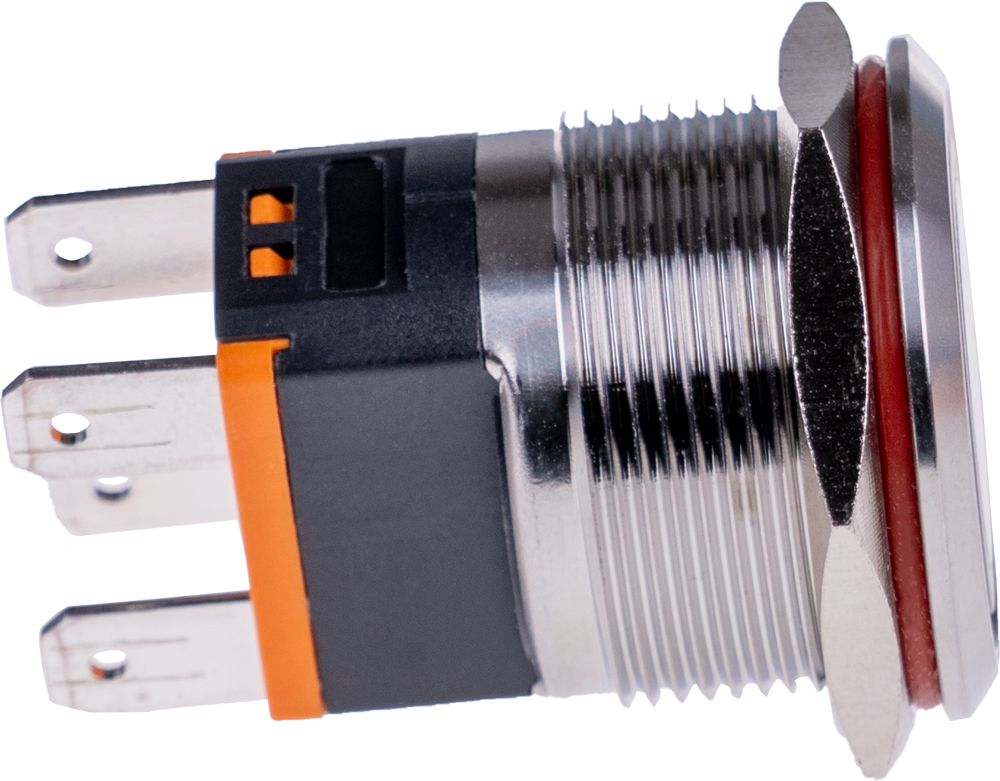

Made of stainless steel and meets protection classes IP67 (dust and water), IK10 (impact) and PA66 (flame).

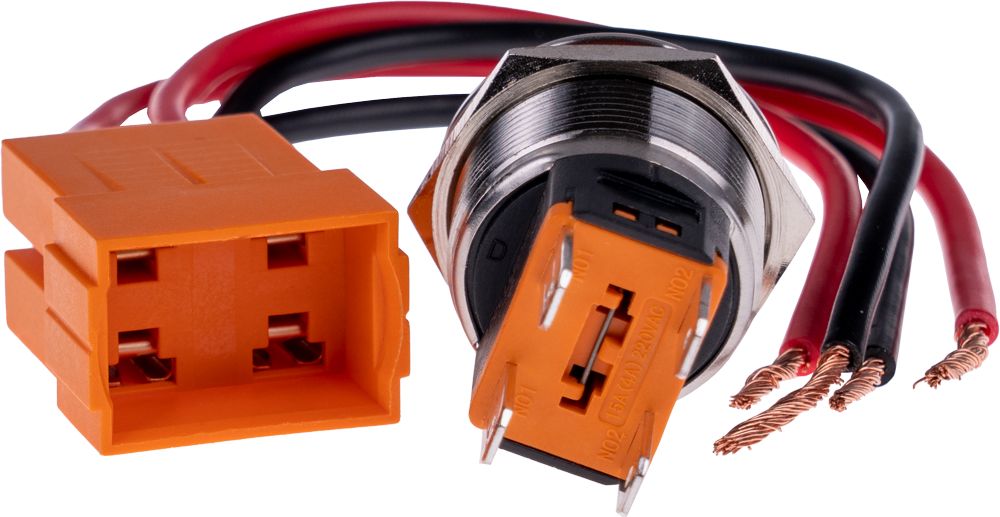

Required connection cables, sealing ring and nut are included in the delivery.

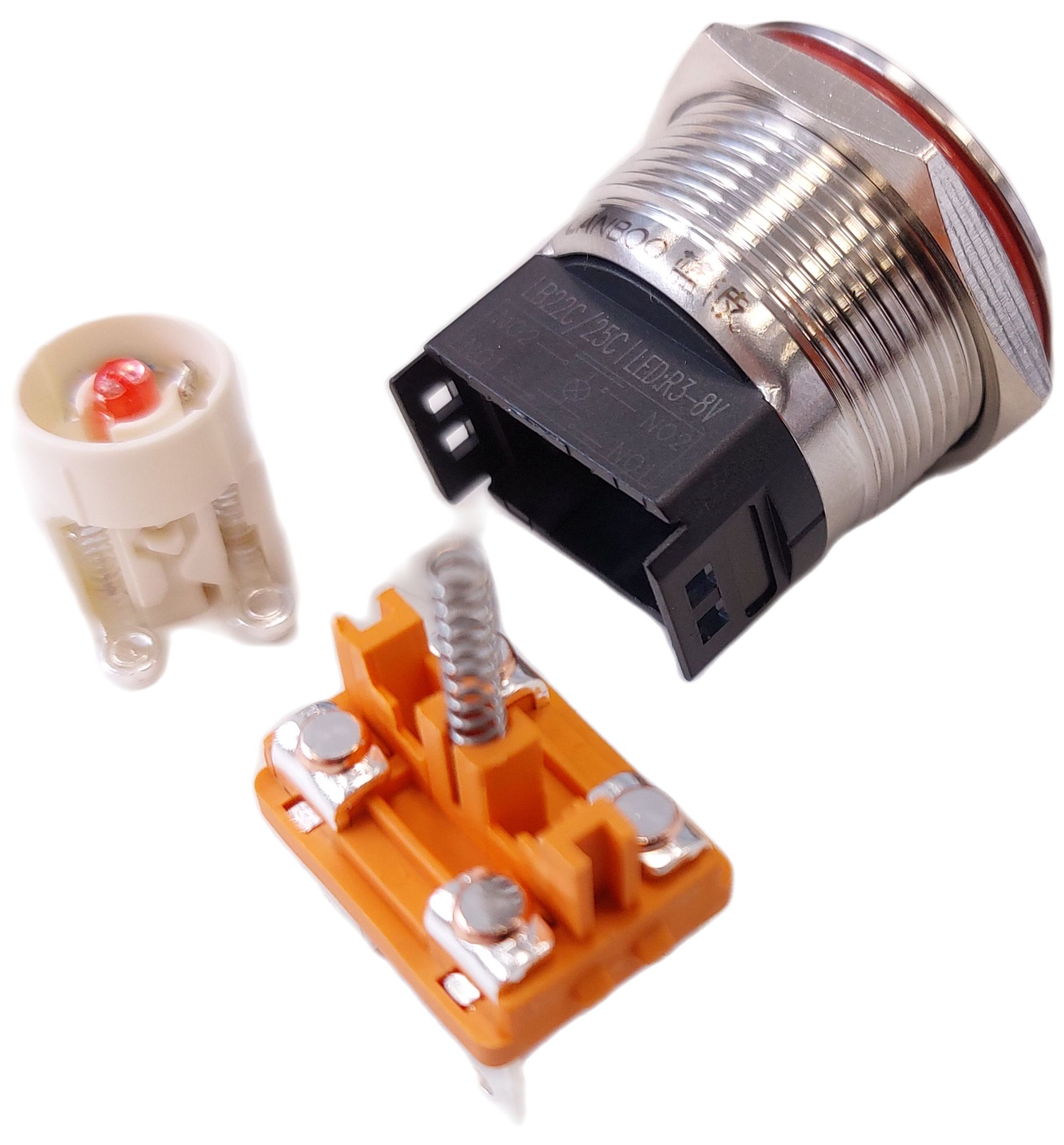

The construction is disassemblable, so the LED wiring can be modified.

Specifications

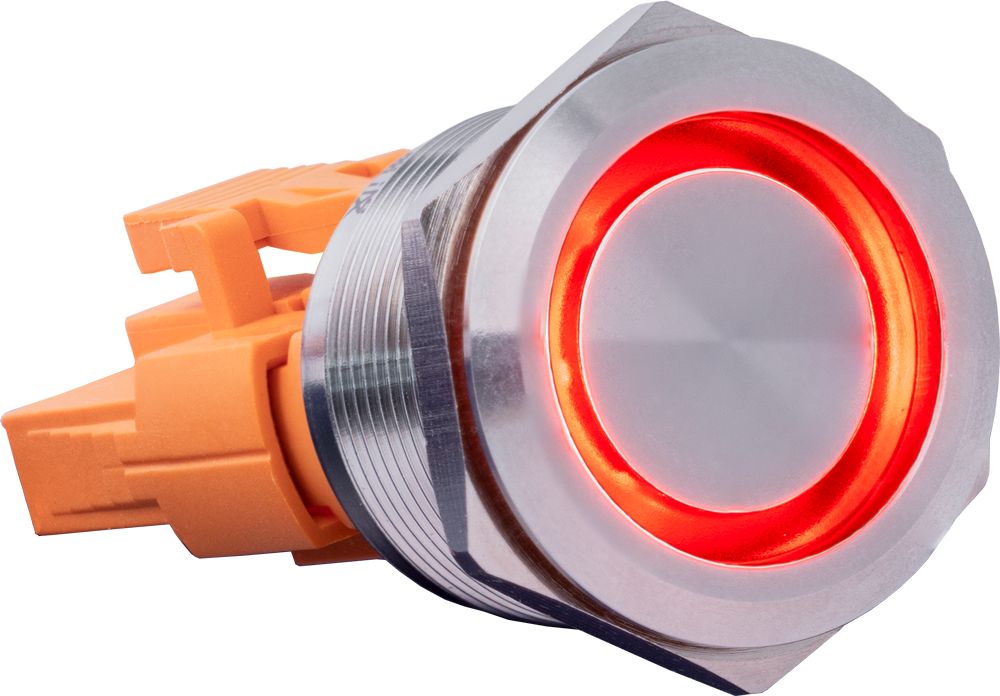

• BRIGHT RED LED RING
• OPERATION: LATCHING
• BUTTON TRAVEL: 3.5 mm
• SWITCHING CURRENT: 15 A
• 15 A / 250 V RESISTIVE, 4 A / 250 V INDUCTIVE
• LED OPERATING VOLTAGE: 3 - 8 V DC (requires series resistor at higher voltages)
• LED LIFETIME: >40 000 hours
• INSULATION RESISTANCE: ≥ 1000 MΩ
• WITHSTAND VOLTAGE: >1000 V AC
• CONTACT RESISTANCE: ≤ 50 mΩ
• HOUSING MATERIAL: STAINLESS STEEL
• CONNECTOR MATERIAL: PA66 (heat resistance 240°C)
• PROTECTION RATING: IP67, IK10
• NUT TIGHTENING TORQUE: 5 - 14 Nm
• MOUNTING HOLE DIAMETER: Ø 22.2 x ≤9 mm
• DIMENSIONS: Ø 24.8 x 34.5 mm
• WEIGHT: 42 g

Links

• Button22C-L-RD Datasheet English
• Button22XXX Manual (English)

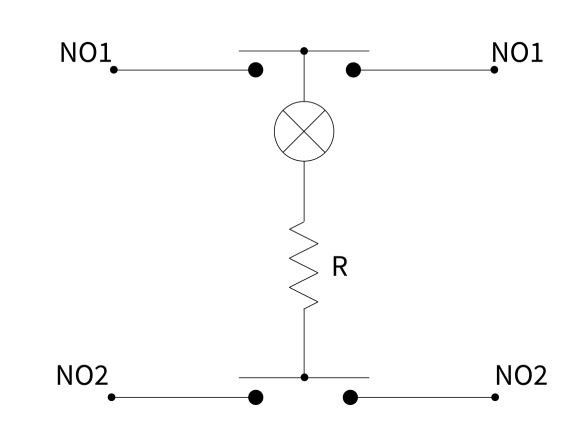

NOTE! Use as two-pole maximum 8VDC.
