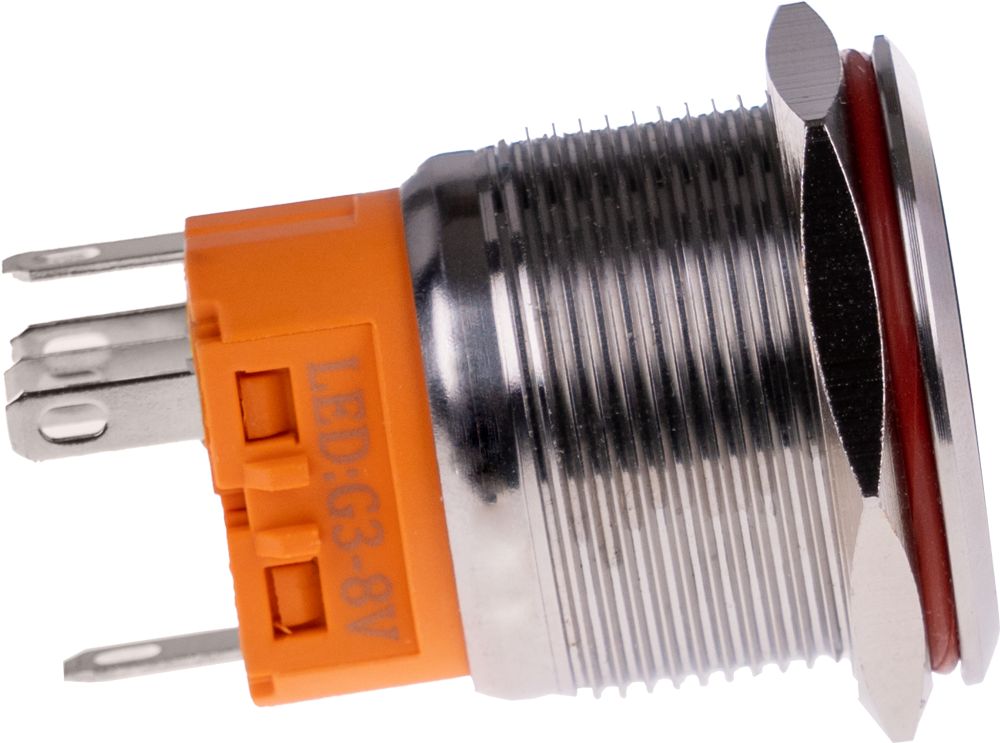

Made of stainless steel and meets protection ratings IP67 (dust and water), IK10 (impact) and PA66 (flame).

Required connection cables, sealing ring and nut are included in the delivery.

The construction is disassemblable, so the LED wiring can be modified.

Specifications

• BRIGHT GREEN LED RING
• OPERATION: LATCHING
• BUTTON TRAVEL: 3.1 mm
• SWITCHING CURRENT: 3 A
• 3 A / 250 V RESISTIVE
• LED OPERATING VOLTAGE: 3 - 8 V DC (requires series resistor at higher voltages)
• LED LIFETIME: >40 000 hours
• INSULATION RESISTANCE: ≥ 1000 MΩ
• DIELECTRIC STRENGTH: >1000 V AC
• CONTACT RESISTANCE: ≤ 50 mΩ
• HOUSING MATERIAL: STAINLESS STEEL
• CONNECTOR MATERIAL: PA66 (heat resistance 240°C)
• PROTECTION RATING: IP67, IK10
• NUT TIGHTENING TORQUE: 5 - 14 Nm
• MOUNTING HOLE DIAMETER: Ø 22.2 x ≤12 mm
• DIMENSIONS: Ø 25 x 35 mm
• WEIGHT: 32 g
