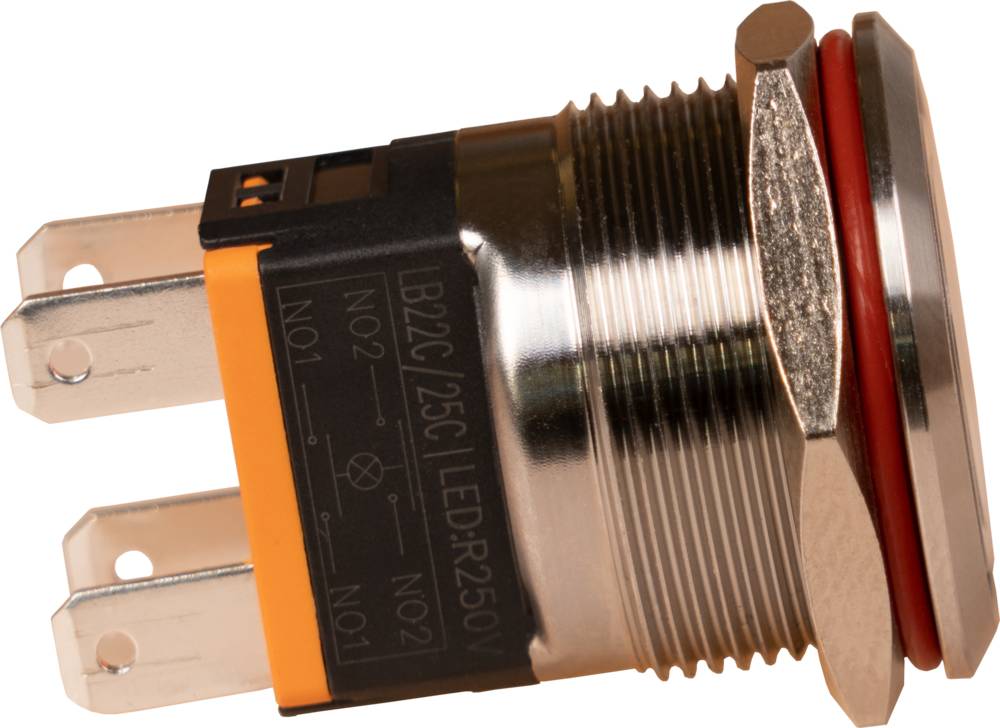

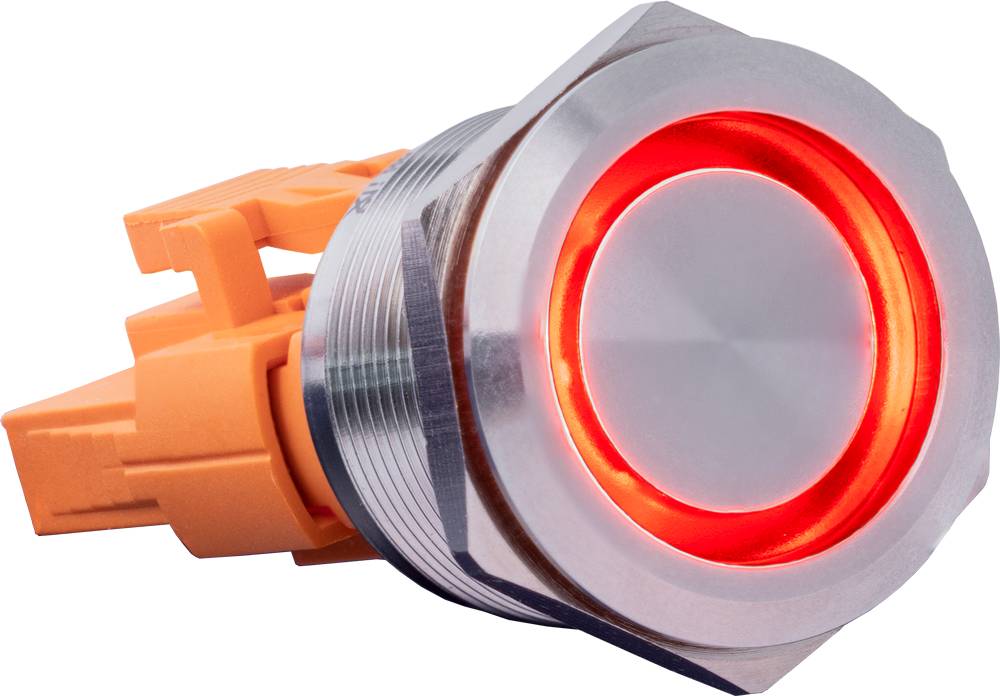

JOY-iT Button22C-02 is an industrial-grade 22 mm metal push button with a clear red LED light ring and a latching function. The stainless steel construction and IP65/IP67 and IK10 ratings make the button an excellent choice for control panels, automation systems, machines and equipment in demanding environments.

• Mounting hole: 22 mm
• Operation: Latching
• LED light ring: Red
• LED voltage: 220–240 VAC
• Maximum load: 15 A
• Contact configuration: 2 × NO (Normally Open)
• Housing material: Stainless steel
• Protection class: IP65/IP67, IK10
• Operating temperature: -30 °C ... +80 °C
• Dimensions: Ø24.8 × 34.5 mm
• EAN: 4250236825168

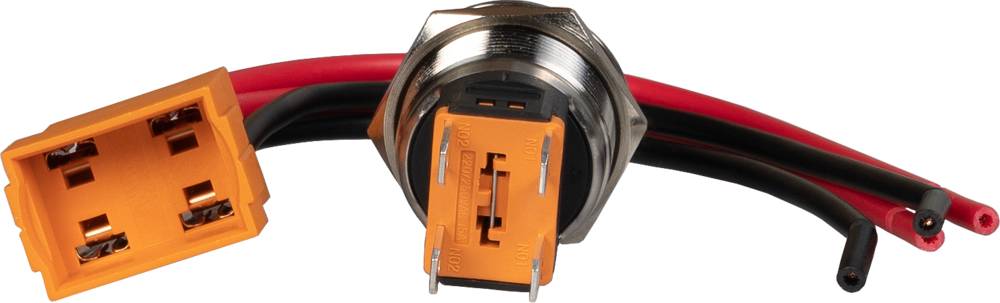

The package includes the push button, connecting wires, connector base, sealing ring and fastening nut. Particularly suitable for industrial control panels, automation systems and other applications that require a durable and visible user interface component.
