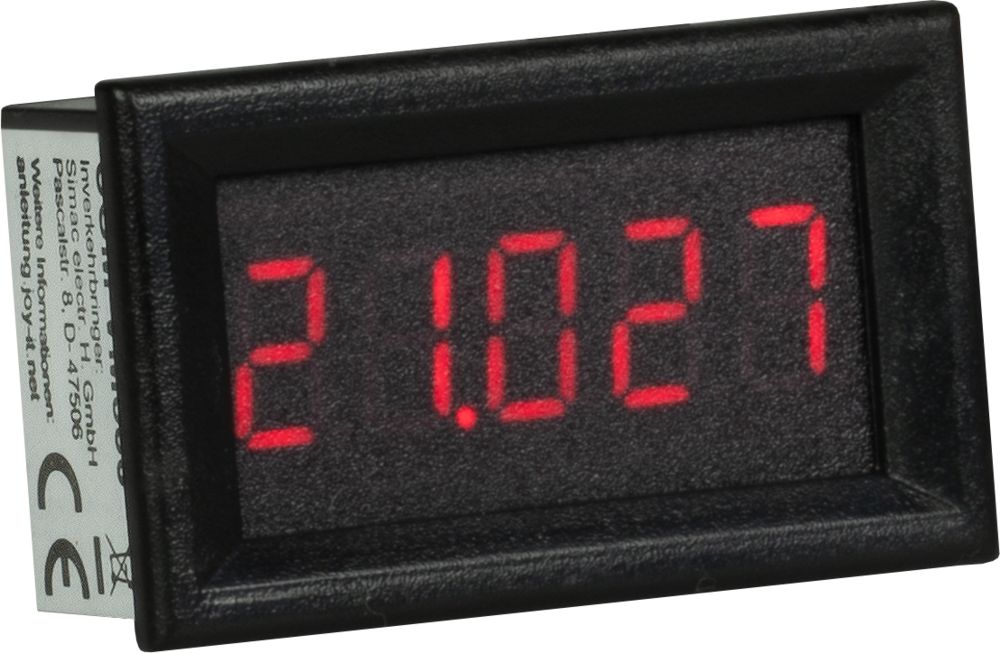

This digital voltmeter VM533 can accurately measure voltages of 0-33 V and displays them on a 0.36" 5-digit segment display. The meter can be powered directly from the measured voltage.

Technical specifications

• Operating voltage: 3.5 - 30 V (DC)
• Current consumption: approx. 8 mA
• Measurement range: 0 - 33 V DC
• Measurement accuracy: ±0.3%
• Operating temperature: -10 - 65 °C
• Update rate: 200 ms
• Display type: segment display
• Display size: 0.36"
• Display color: red
• Cable connections: Red: supply voltage (+); black: ground (-); yellow: measurement voltage.
• Cable length: 14 cm
• Dimensions: 48 x 29 x 22 mm
• Weight: 16 g
• EAN: 4250236817880

Links

• COM-VM533 Wiring English - 1,93 MB
• COM-VM533 Manual English - 328,23 KB
• COM-VM533 Datasheet English - 133,81 KB
