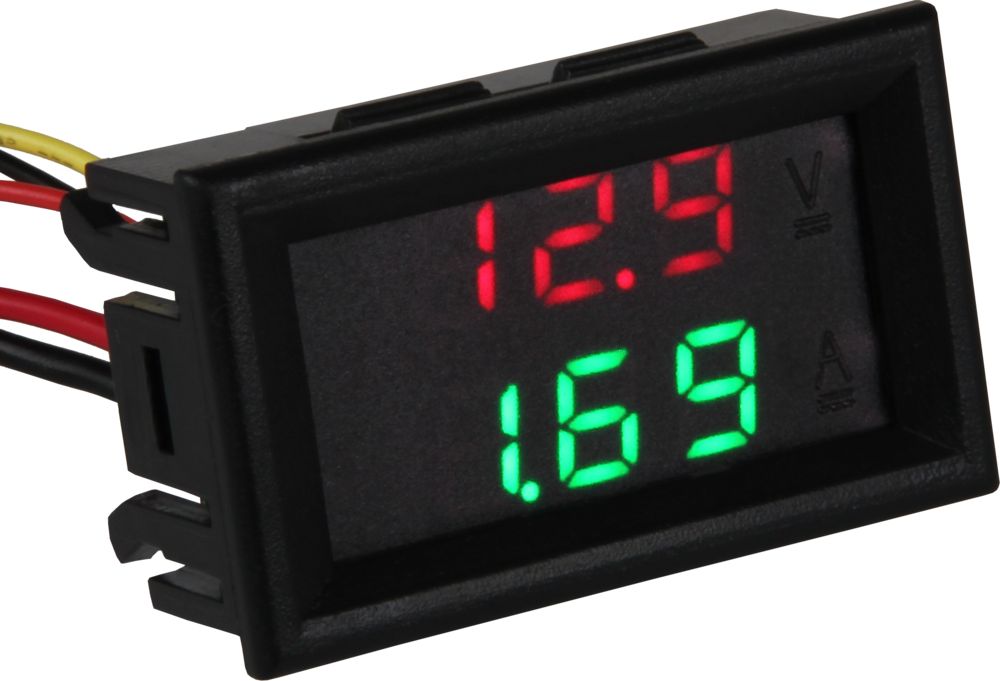

VAM10010 is a compact voltage and current meter that operates on a supply voltage of 3,5-30 V. It can also be used with just the measurement voltage.

The integrated 0,28" display allows the measured values to be shown in the 0-100V and 0-10A measurement ranges.

Technical specifications

• Supply voltage: 3,5 - 30V (DC) | Operation using the measurement voltage possible.
• Operating current: approx. 9 mA (3.5 V), approx. 15 mA (12 V)
• Measurement range: 0 - 99,9V / 0-9,99A.
• Measurement accuracy: Voltage: ±0,5 % / Current: ±1 %.
• Operating temperature: -10 - 65°C
• Display refresh rate: 2 times per second
• Display type: 7-segment display
• Display size: 0,28"
• Display color: red (voltage), green (current)
• Cable length: 14 cm

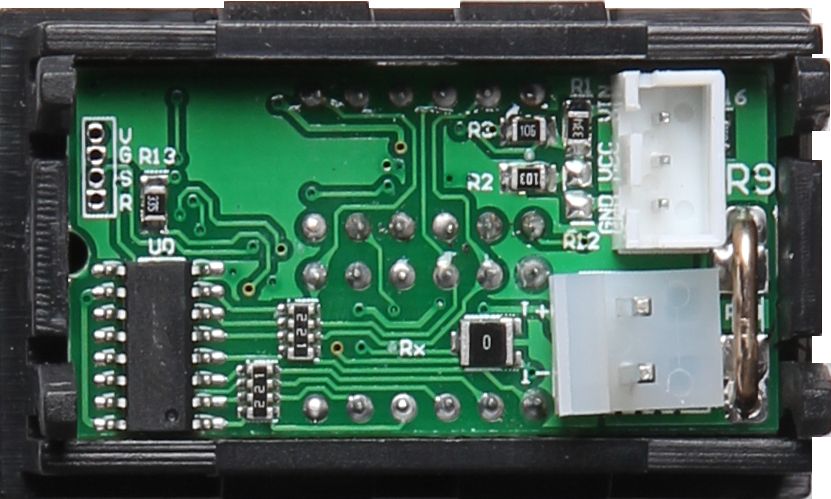

• Features: integrated shunt for current measurement

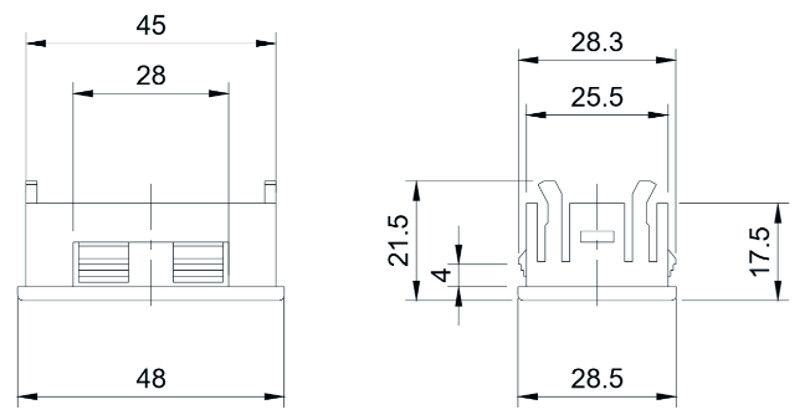

• Dimensions: 48 x 29 x 22 mm
• Weight: 20 g
• Supplied products: VAM10010
• EAN: 4250236817897
