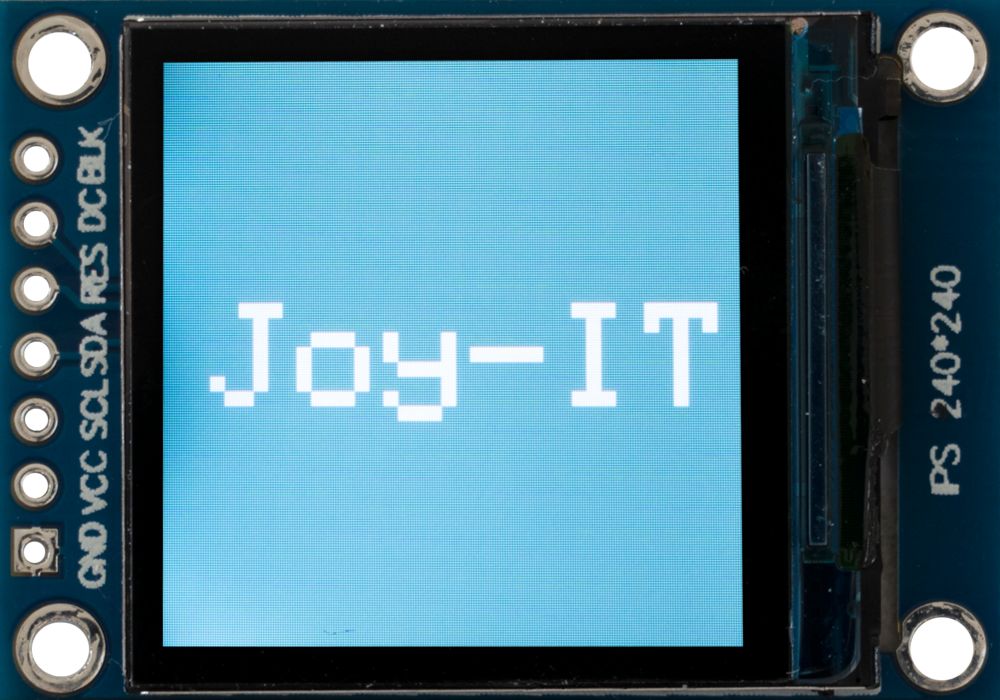

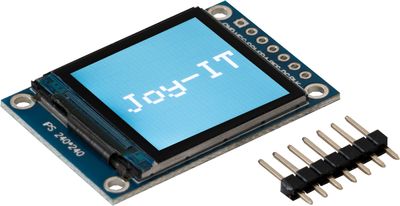

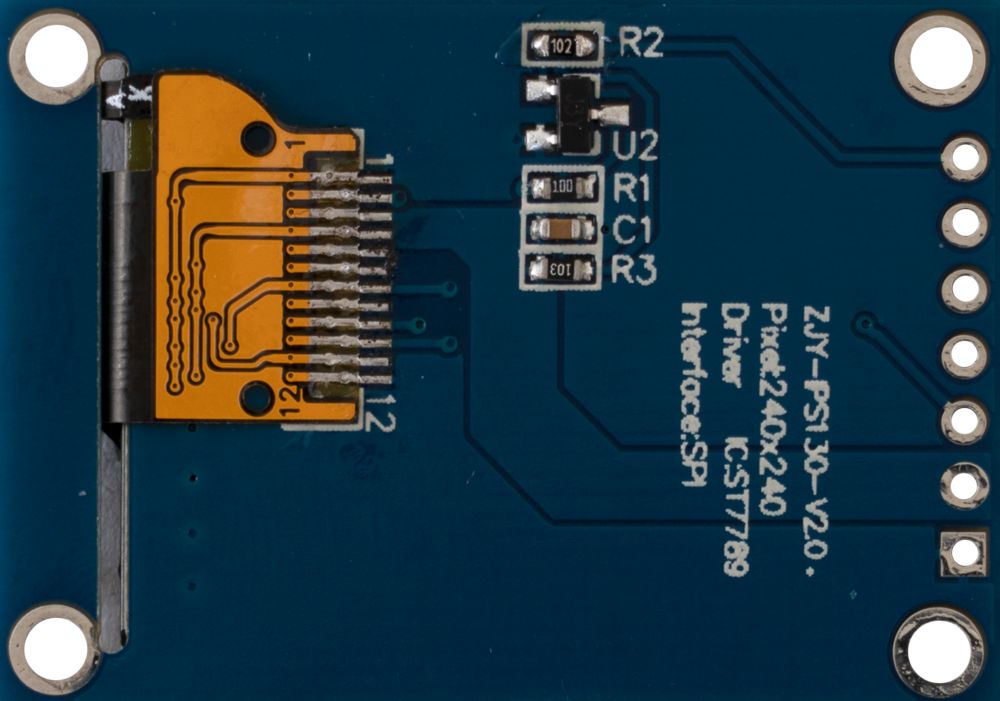

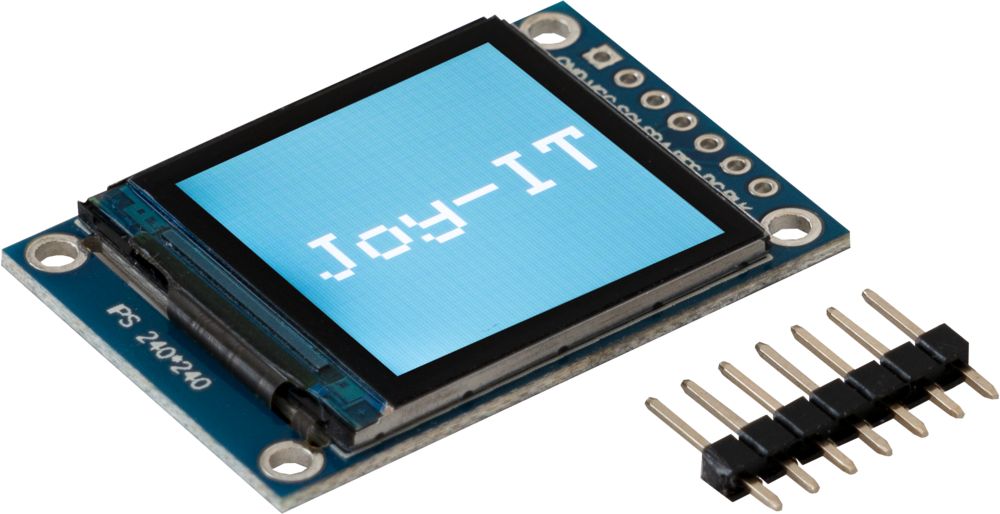

Joy-IT LCD-SCREEN 240x240 (SPI)

Name: Joy-IT LCD-SCREEN 240x240 (SPI)
Brand: Joy-IT
SKU: LCD-SBC01
Price: 11.37 EUR
Availability: InStock

In stock 9 pcs

SKU#: LCD-SBC01

Joy-IT LCD-SCREEN 240x240 (SPI)

In stock 9 pcs

SKU#: LCD-SBC01

Joy-It SBC-LCD01 - This IPS TFT display is controlled via the SPI bus, making it suitable for use with microcontrollers (e.g., NodeMCU) and single-board computers (e.g., Raspberry Pi). Thanks to the high-resolution IPS panel and a pixel density of over 260 PPI, content can be displayed accurately on a small screen.

11,37 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

This IPS TFT display is controlled via the SPI bus, making it suitable for use with microcontrollers (e.g. NodeMCU) and single-board computers (e.g. Raspberry Pi). Thanks to the high-resolution IPS panel and a pixel density of over 260 PPI, content can be rendered sharply on a small display.

Specifications

Type: Color IPS TFT-LCD
Resolution: 240 x 240 pixels
Controller: ST7789VW
Operating voltage: 3.3 V
Operating current: 8 - 10 mA
Logic voltage level: 3.3 V
Brightness: 300 - 350 cd/m²
Contrast: 640 - 800 : 1
Response time: 30 - 35 ms
Operating temperature: - 20 °C - 70 °C
Included items: SBC-LCD01, Pin header (enclosed, not soldered)

Product Information

Availability In stock
Manufacturer Joy-IT
EAN 4250236820330
Product path Home Components Optical Components Displays Graphic Display Modules Joy-IT LCD-SCREEN 240x240 (SPI)
SKU LCD-SBC01
Attributes
- Resolution 240x240
- Manufacturer's model SBC-LCD01
- Click for more details https://joy-it.net/en/products/SBC-LCD01
- Dimensions 38 x 27 x 10 mm
