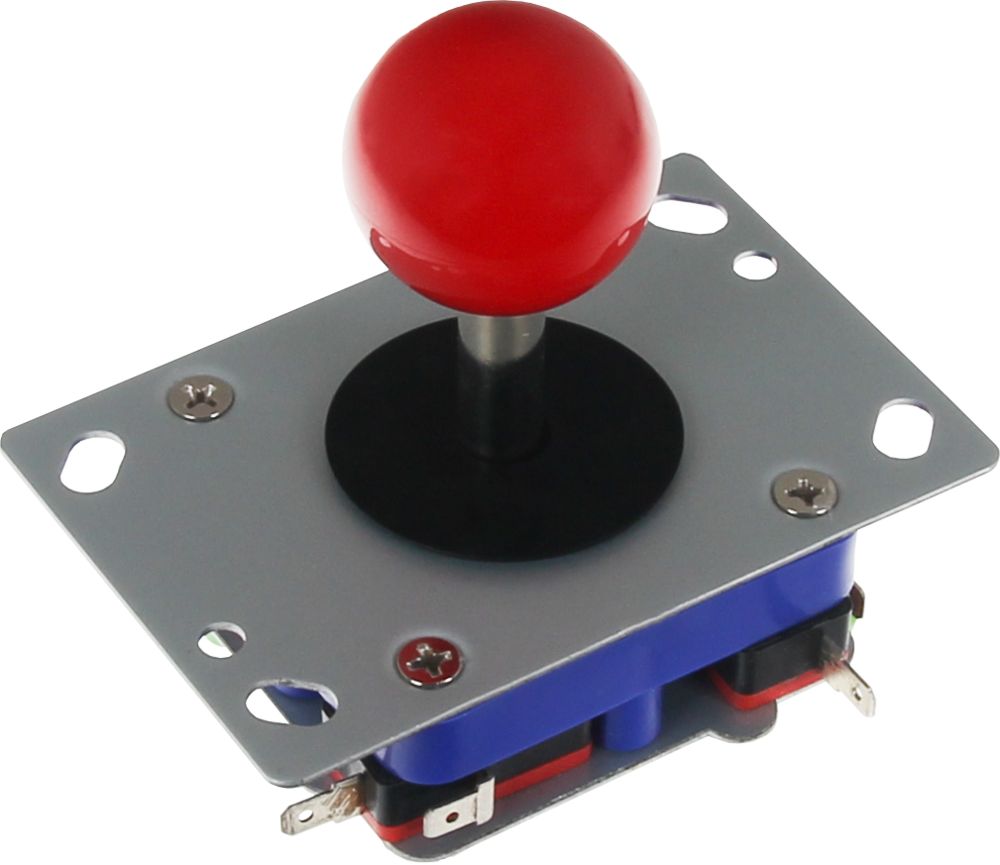

This joystick gives you the ability to emulate arcade machines or control robotic arms with your Raspberry Pi device.

You have no restrictions on how you use this joystick.

Additionally it can be switched between 8-, 4- and 2-direction modes, and it is easy and quick to integrate into your project.

Specifications

• MODEL: Joystick

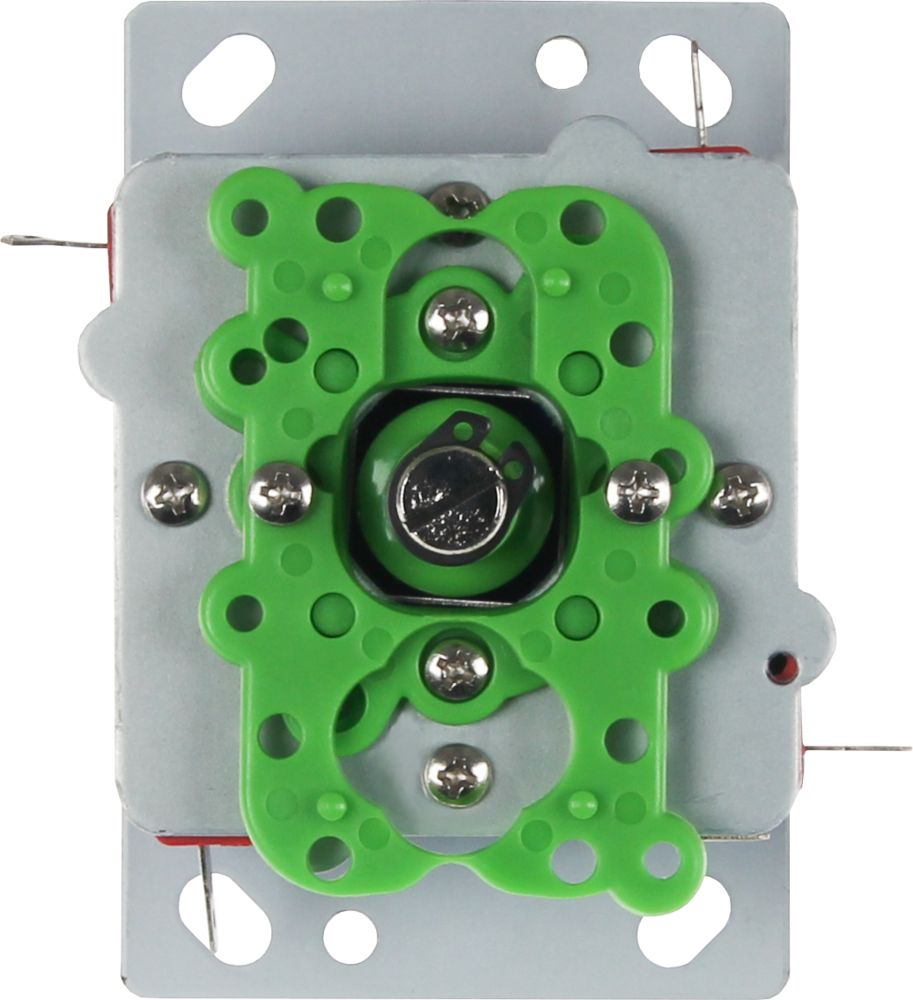

• RESTRICTOR PLATE: Control unit adjustment (2-way, 4-way, 8-way) via the restrictor plate
• OVERALL HEIGHT: 118 mm
• MOUNTING PLATE: 97 x 65 mm
• MICROSWITCHES: 4 micro switches (tested for 1 000 000 cycles)
• SPECIAL FEATURES: Returns automatically to center position thanks to the built-in spring
• MATERIAL: Plastic material and metal
• WEIGHT: 238 g
• INCLUDED ITEMS: Joystick

Links

• Joystick01 technical drawing English
