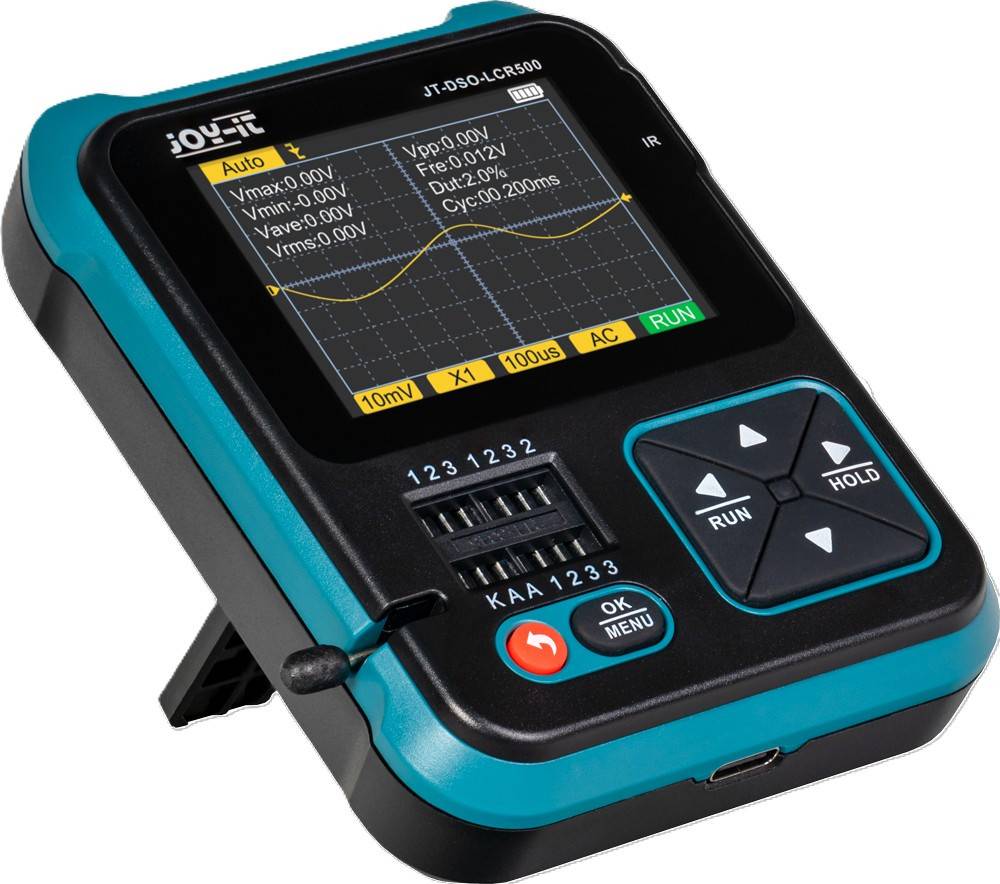

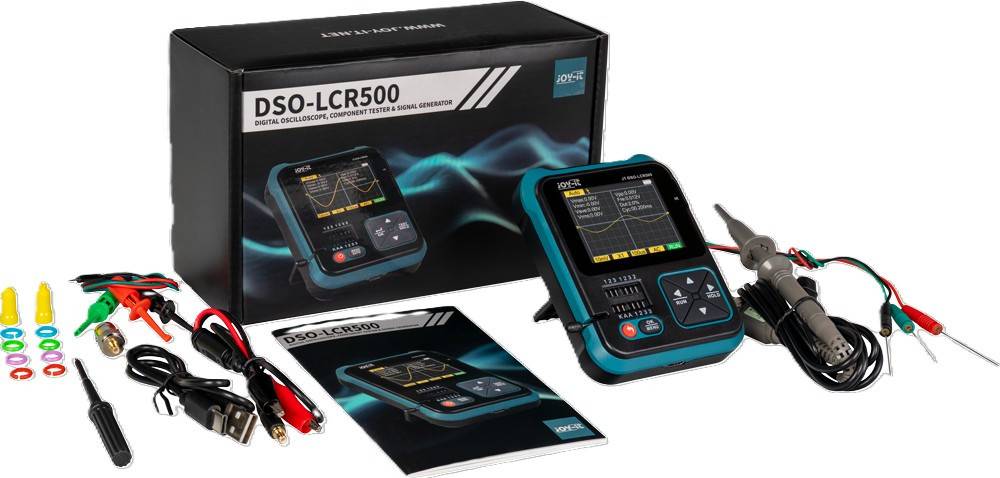

With a digital oscilloscope, determined hobbyists can evaluate time-dependent signals without expensive measuring equipment.The multifunction component tester also enables quick and automatic identification of components. In addition, our DSO-LCR500 device has other useful functions, such as a signal generator, an infrared signal decoder, and measurements for Zener diodes, DS18B20 sensors, and DHT11 sensors.The device is equipped with a 1500 mAh rechargeable battery that can be conveniently charged via the USB-C connector. The integrated, foldable stand also makes usage easier.

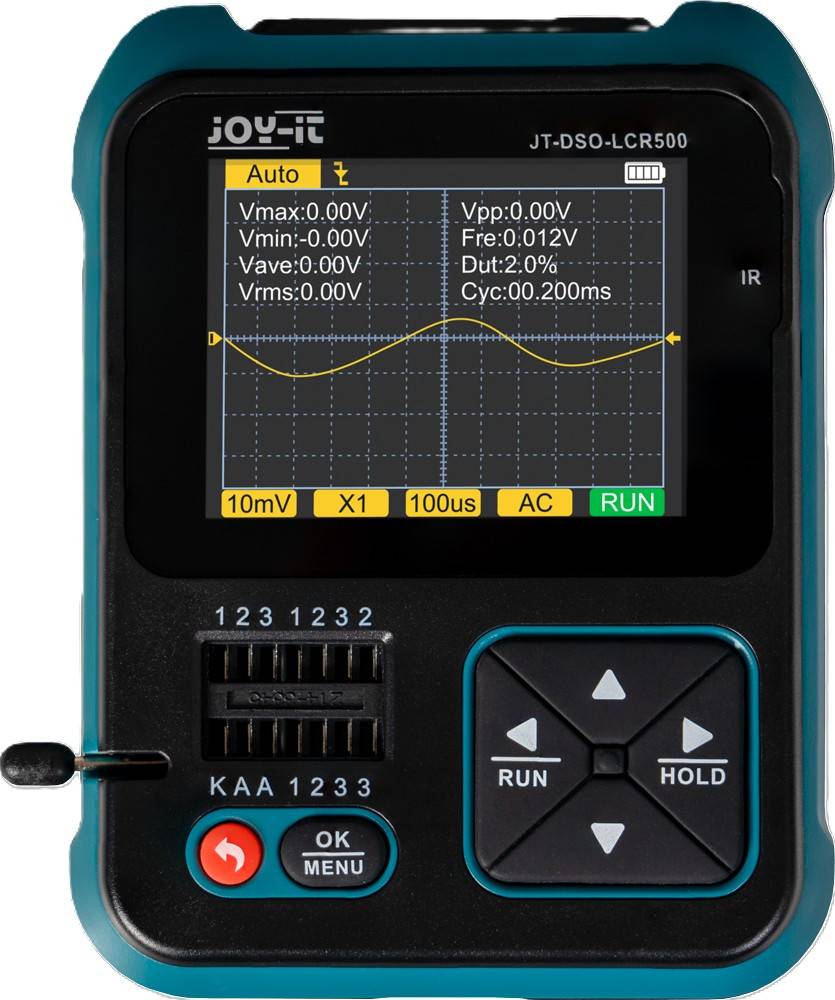

Digital oscilloscope

• Sampling rate: 10 MS/s, 0–500 kHz bandwidth
• Input resistance: 1 MΩ, AC/DC coupling
• Vertical sensitivity: 10 mV/div – 10 V/div; time base: 10 µs – 10 s/div
• Trigger: auto, normal, single; rising/falling edge

Component tester and LCR meter

• Automatically identifies resistors, capacitors, inductors, diodes, transistors, SCRs, triacs
• R: 0,01 Ω–50 MΩ
• C: 25 pF–100 mF; L: 10 µH–1000 µH
• Transistor analysis: hFE, UBE, ID/VGS, RDS(on), gate capacitance, leakage, etc.

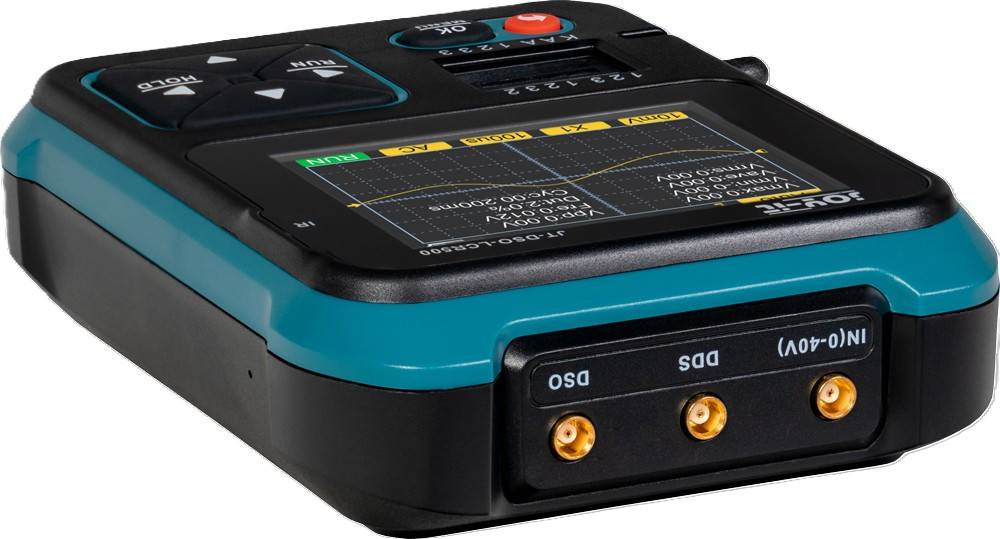

• test leads with MCX connectors (see MCX tail cable here for making your own test leads)

Built-in signal generator

• Generates sine waves, square waves, pulse waves, triangle waves and sawtooth waves
• Frequency: 1–100 kHz; amplitude ~0–3,3 V

Additional functions

• Continuity tester

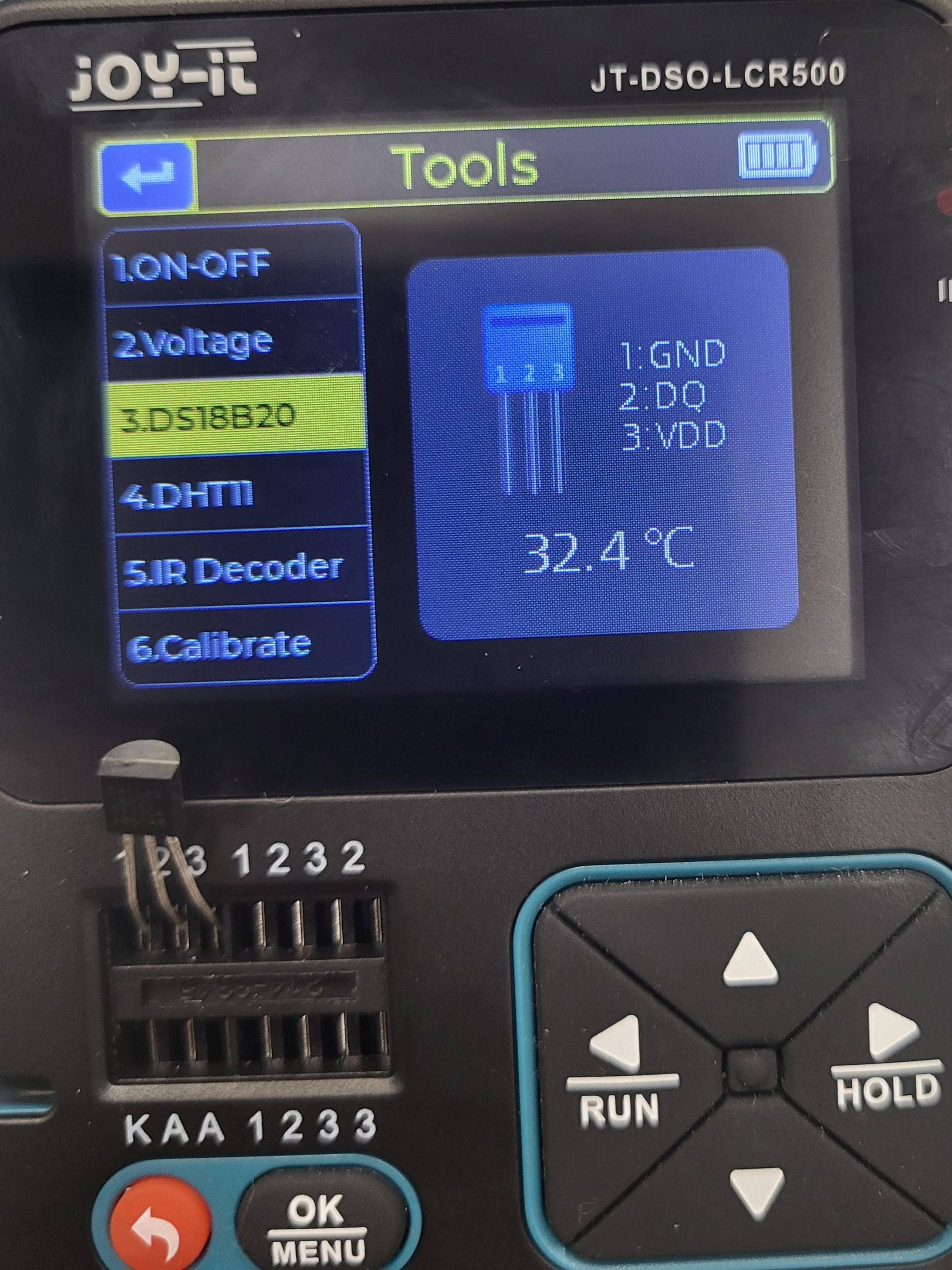

• Measures Zener diodes, DS18B20 and DHT11 sensors
• IR NEC protocol decoder
