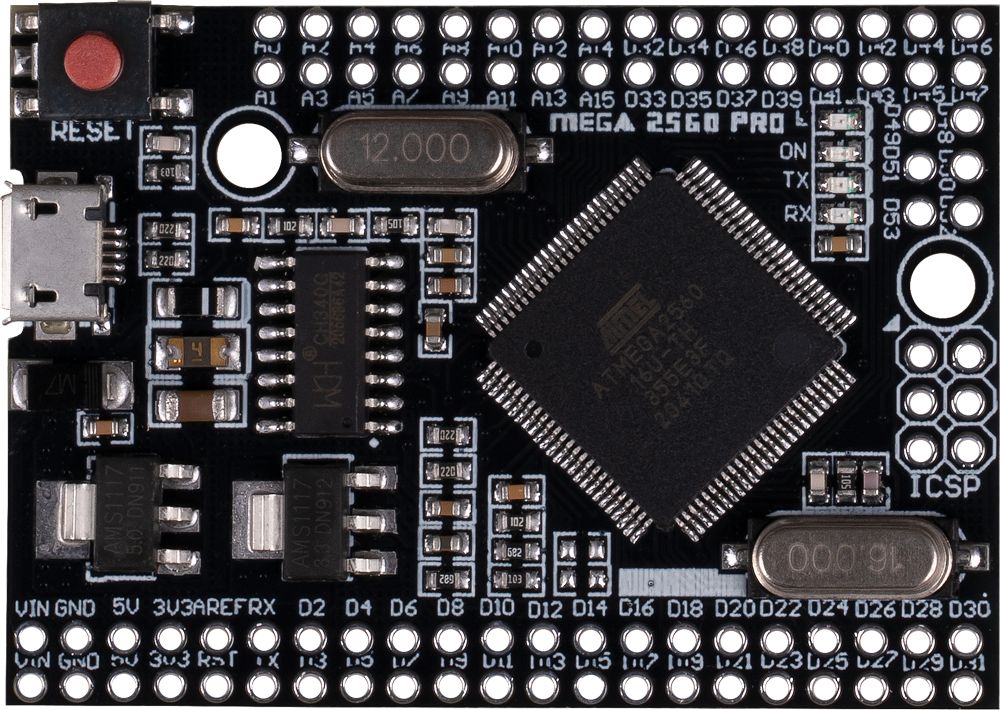

The Mega2560PRO microcontroller board offers you the same performance as a Mega2560. Thanks to its compact design and the non-soldered PINs, the microcontroller board is highly integrable and is also suitable for smaller projects. Despite the smaller dimensions, it still offers the same interfaces like the bigger Mega2560.

To transfer the software with Arduino IDE, the microUSB connection is used via the integrated USB-UART adapter CH340G.

The power can be supplied via the microUSB connection or via the VIN pin, which allows you to use voltages between 7 and 9 volts on the VIN pin thanks to the integrated voltage converter.

Specifications

• Microcontroller: ATmega2560 -16AU
• Storage: Flash 256 KB, SRAM 8 KB, EEPRom 4 KB
• Amount of Pins: Digital I/O: 54 PWM Output: 15 Analog Input: 16
• Compatible with: Arduino, Raspberry PI, Desktop computer, etc.
• Special characteristics: microUSB Port or Power Pins for power supply
• Interface converter: micro USB to UART ( CH340G )
• Input voltage: 7 - 9 Volt on VIN 5 Volt on microUSB input
• Logic level: 5 Volt
• Output current: 800 mA
• Voltage regulator: LDO for up to 12 V peak
• Frequency: 16 MHz (can reach 12 MHz for data exchange)
• Dimensions: 55 x 38 x 10 mm

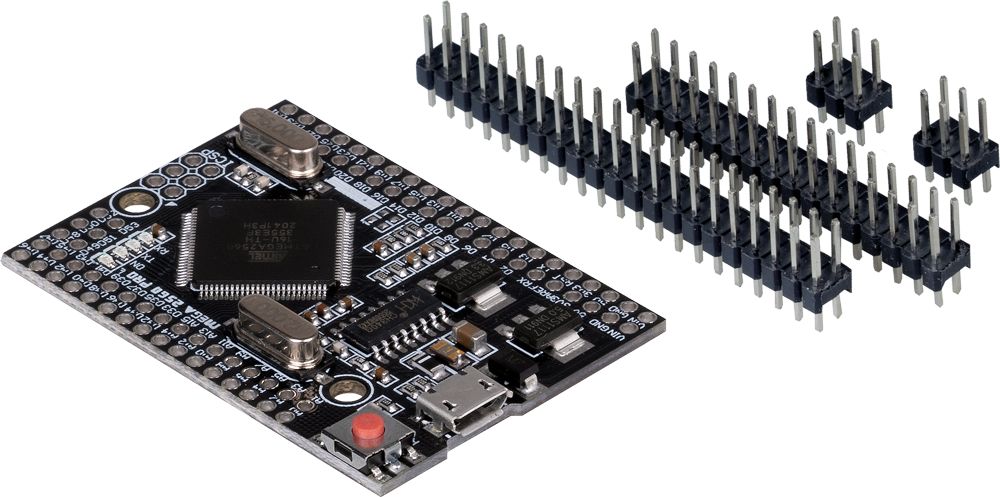

• Items Shipped: MEGA2560PRO with enclosed Pin headers
• EAN: 4250236820279
