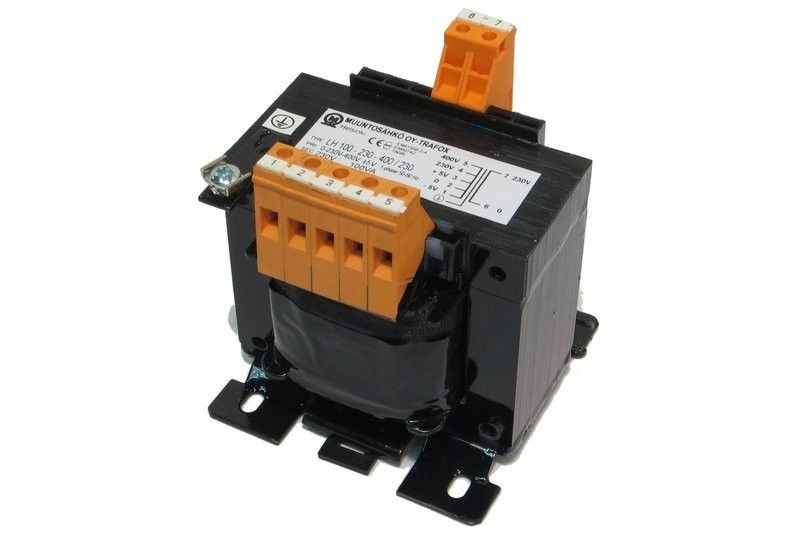

This encapsulated transformer has two primary voltages to choose from for the application: 400VAC or 230VAC. In addition, for fine adjustment the second incoming conductor can be connected to the +5% or -5% terminal instead of 0V.

• input voltage: 400VAC or 230VAC (±5%)
• output voltage: 24VAC
• power rating: 100VA
• separate earth/ground connection point
• touch-protected terminal blocks
• T60/B temperature class
• EN61558-2-4 and EN60742
• installation IP2X, i.e. for dry indoor locations
• base has a fastening mechanism for DIN-rail
