Suitable for e.g. LTE(4G)+5G 700+800 / GSM 900 / DCS-LTE 1800 / UMTS (3G) / WI-FI / LTE 2.6Ghz / 5G 3.5GHz

Frequency ranges: 700/800/900/1800/2100/2400/2600/3500 MHz (698-3800MHz)

Supports: LTE 4G/5G / HSPA+ / HSDPA / UMTS / HSUPA / GSM / EDGE / GPRS;MIMO / Wimax / CDMA2000 / Wi-Fi 802.11 / 5G 3.5GHz

Technical specifications

• Polarization: vertical

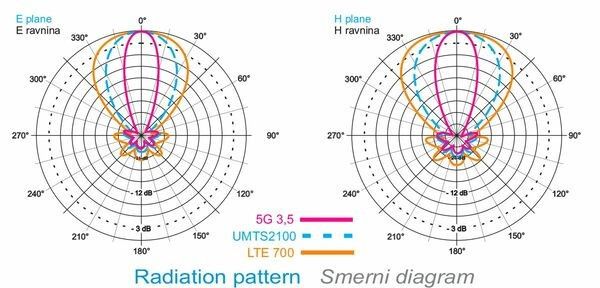

• Horizontal beamwidth: 52° (@ 1800 MHz)
• Vertical beamwidth: 44° (@ 1800 MHz)

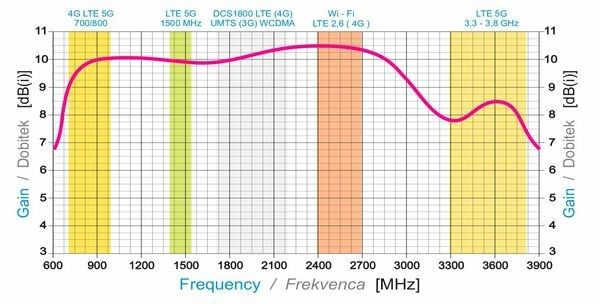

• Gain: 7,5 - 10,5dB(i)
• Front-to-back ratio: 23 dB
• VSWR: < 1.6 : 1
• Impedance: 50 ohm
• Length: 1100 mm
• Wind load: 2 x 28,5 N 120 km/h
• Weight: 1,3 - 1,5 kg
• Temperature range: -40-+70 ºC
• Minimum distance between antennas 65cm
• Optimal distance between antennas 95cm

Delivery

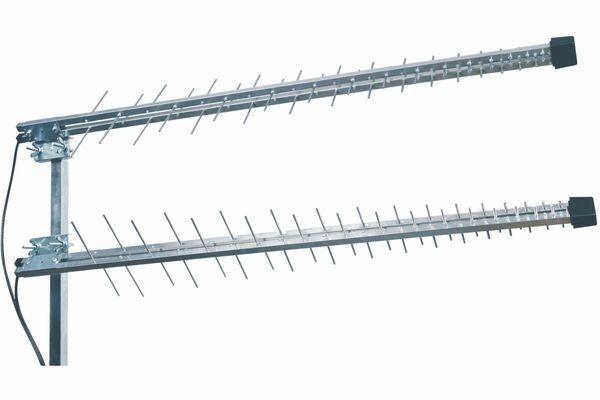

• 2 pcs P-60 antenna & Biokall W54/240 10m SMA-uros

PRODUCT FOR PICKUP ONLY. NO POSTAL DELIVERY!
