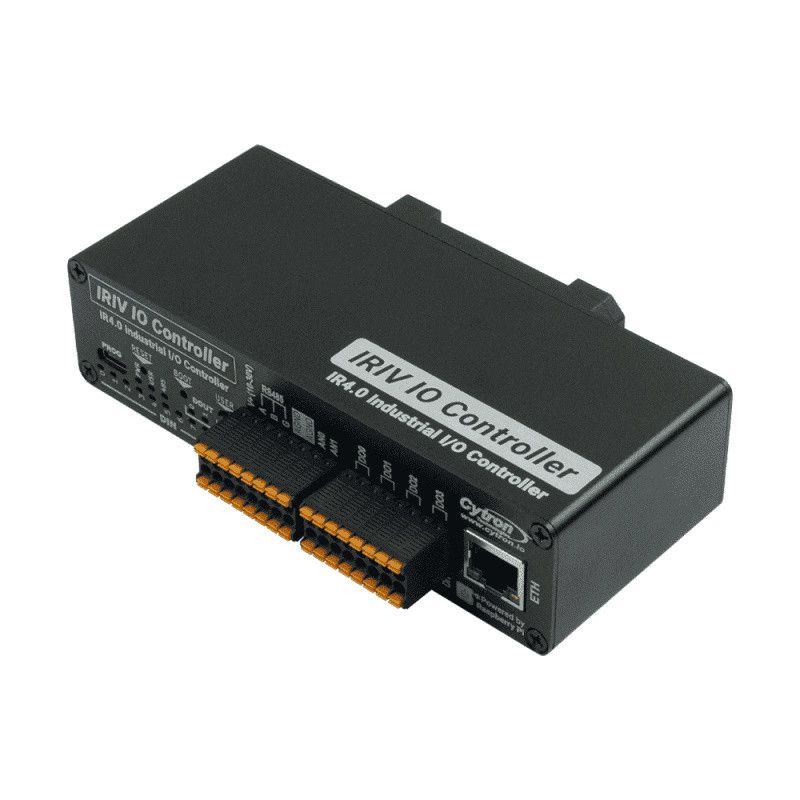

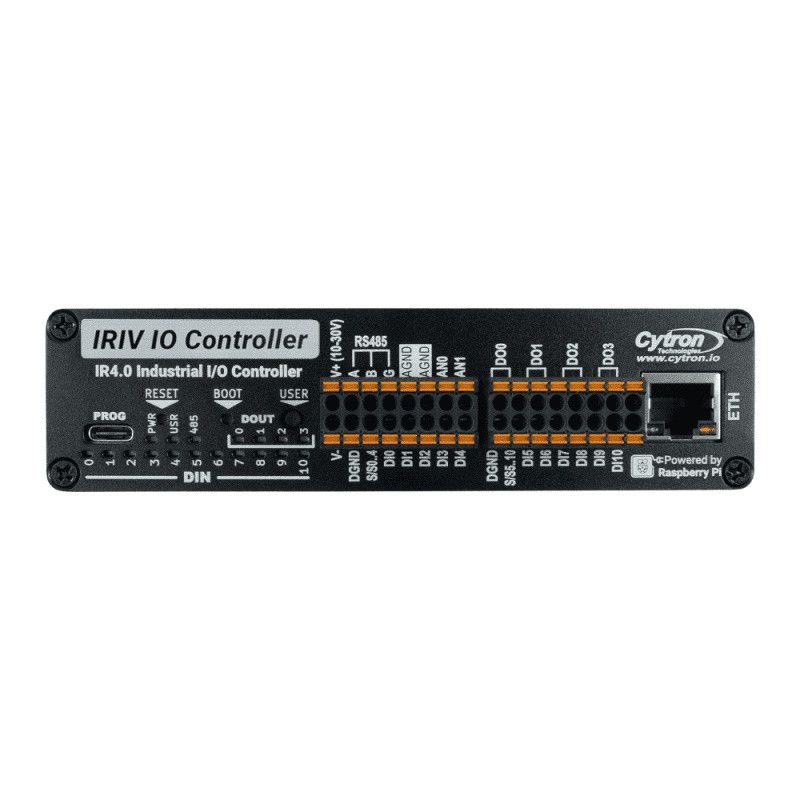

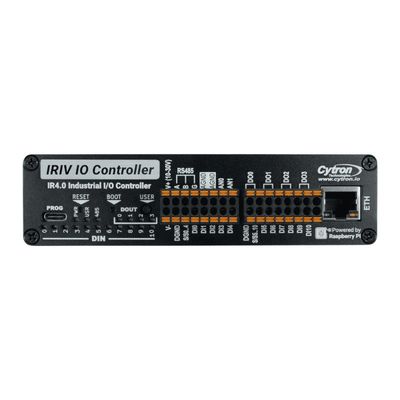

IRIV IO Controller is designed to simplify solutions in industrial automation. The controller is based on the new Raspberry Pi RP2350 chip, which makes it powerful, fast, versatile and energy-efficient. This controller is suitable for many industrial applications. It can be used as a standalone IO expander, data acquisition unit, network gateway, automation controller and for many other purposes!

Features

• Raspberry Pi RP2350A, Dual Cortex-M33 @ 150MHz
• 520KB on-chip integrated SRAM
• 2MB flash memory
• 1x USB-C (for programming and configuration)
• 1x RJ45 Ethernet (via W5500 Ethernet controller)
• 1x isolated RS485
• 11x isolated digital input (up to 50V)
• 4x isolated digital output (up to 50V)
• 2x 12-bit analog input (0 - 10.56V / 0 - 42.58mA)
• DC 10-30V protected input
• PCF85063A real-time clock
• 1x reset button, 1x boot button, & 1x programmable button
• 1x programmable LED
• Indicator lights for power, RS485, DIN and DOUT inputs
• 1x passive buzzer

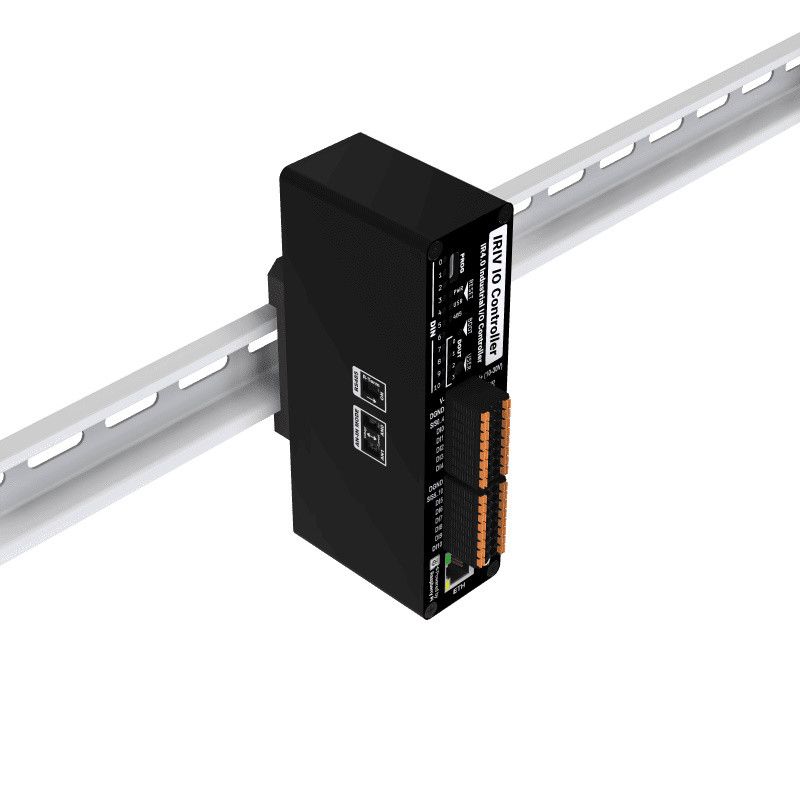

• Metal enclosure, fanless design, DIN-rail mountable
• (W)140mm x (D)60mm x (H)36mm (metal enclosure only, without DIN connector and terminals)

Links

• IRIV IOC Datasheet (pdf)
• IRIV IOC Block Diagram (pdf)
• IRIV IOC PCBA Layout Diagram (pdf)
• IRIV IOC 3D CAD Models
