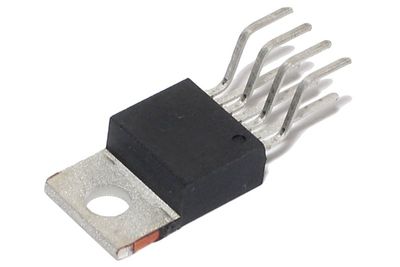

TOP243YN – Off-line Flyback Switcher IC (TO-220)

TOP243YN is an integrated off-line switcher IC from Power Integrations' TOPSwitch-GX family that enables building an efficient AC/DC flyback power supply with a minimal number of components. The IC includes a PWM controller, a high-voltage MOSFET and several protection functions.

Key features

• Integrated MOSFET and PWM controller in a single package
• Direct operation from 85–265 VAC mains
• Max. power up to approximately 45 W (230 VAC)
• Built-in soft-start and current limiting
• Over- and under-voltage protection (OVP/UVP)
• Thermal protection with hysteresis
• Frequency jitter → lower EMI
• No need for a dummy load (zero-load regulation)

Technical specifications

• Topology: Flyback
• Switching frequency: ~132 kHz
• Input voltage: 85...265 VAC
• Max. duty cycle: ~83 %
• Package: TO-220 (through-hole)
• Operating temperature: -40 ... +150 °C

Applications

• AC/DC adapters (5V, 12V etc.)
• Power supplies for TVs and monitors
• Set-top boxes and digital devices
• Network devices and modems
• Low-power power supplies and UPS solutions

Additional information

TOP243YN is particularly suitable for flyback-type power supplies where a cost-effective and reliable solution is required. The integrated design reduces the number of external components and simplifies the design process.
