Frequency range: 64 MHz – 1300 MHz
Control interface: I²C bus (5 serial ports for programming)
Supply voltage: 5 V
Current consumption: ~35 mA
Oscillator frequency: 3.2 – 4.48 MHz (typically 4 MHz)
Output ports:
- 8 bus-controlled ports (TSA5511)
- 5 ports for the TSA5511T variant
- Includes ADC and general-purpose I/O
Lock flag: Indicates PLL lock status
Addressing: 1 fixed + 3 programmable I²C addresses
Low radiation design
Disable for varicap control
Operating temperature: −10 °C – +80 °

Product Information

Availability In stock
Manufacturer Philips
Product path Home Components Integrated Circuits Microchips as a list INTEGRATED CIRCUIT RADIO TSA5511
SKU TSA5511
Attributes
- Classification IC/RADIO

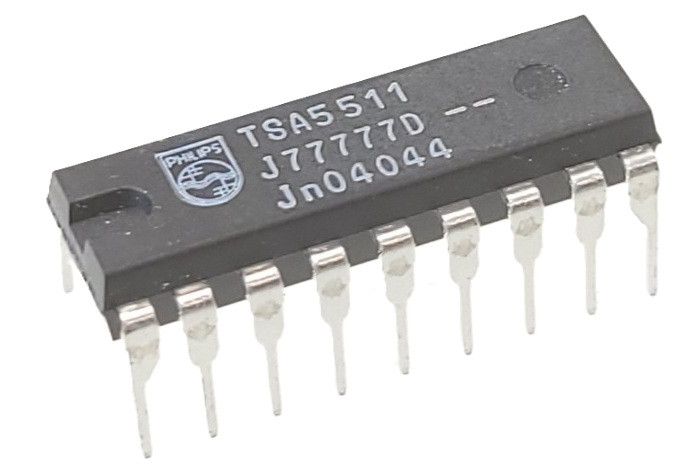

INTEGRATED CIRCUIT RADIO TSA5511
