TL084IN – Four-channel JFET-input Operational Amplifier, PDIP-14

TL084IN is a four-channel (quad) operational amplifier with JFET inputs, suitable for a wide range of analog signal processing applications. The component provides high input resistance, low noise and a good slew rate, making it suitable for preamplifiers, active filters, audio circuits and measurement electronics.

Key features

• 4 independent operational amplifiers in a single package
• JFET inputs → high input resistance
• Low noise
• High slew rate (~13 V/µs typical)
• Wide supply voltage range (±5 V … ±18 V)
• Low input current

Specifications

• Device type: Operational amplifier (quad)
• Model: TL084IN
• Package: PDIP-14 (through-hole)
• Supply voltage: ±5 V – ±18 V
• Gain bandwidth (GBW): approx. 3 MHz
• Slew rate: approx. 13 V/µs
• Input resistance: high (JFET inputs)
• Operating temperature: 0 … +70 °C

Applications

• Audio amplifiers and preamplifiers
• Active filters
• Signal conditioning and buffering
• Measurement and test equipment
• Analog control circuits

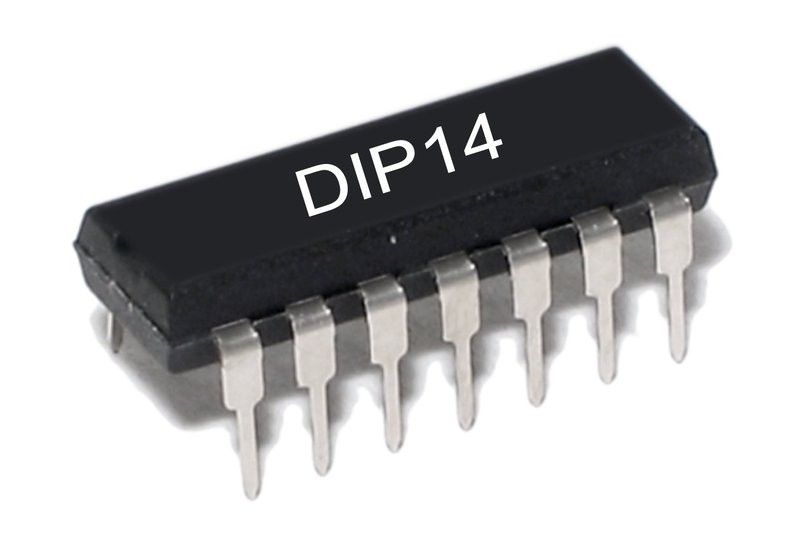

Packaging

• PDIP-14 (DIP, through-hole)
• Suitable for prototype boards and traditional THT mounting

TL084IN is a versatile and reliable four-channel operational amplifier that offers good performance for most analog applications.
