IMPULSE RELAY DIN RAIL MOUNT 12VDC / 250V 16A

Name: IMPULSE RELAY DIN RAIL MOUNT 12VDC / 250V 16A
Brand: Finder
SKU: FI202290124000
Price: 30.35 EUR
Availability: InStock

In stock 6 pcs

SKU#: FI202290124000

IMPULSE RELAY DIN RAIL MOUNT 12VDC / 250V 16A

IMPULSE RELAY DIN RAIL MOUNT 12VDC / 250V 16A

In stock 6 pcs

SKU#: FI202290124000

Finder 20.22.9.012.4000

Quantity discount

Quantity (kpl)		Price
5+	undefined%	27,31 €

30,35 €

In stock

Add a comment about the product

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

The impulse relay changes state when it receives a voltage pulse and holds it mechanically until it receives a new pulse or the change-over button is pressed.

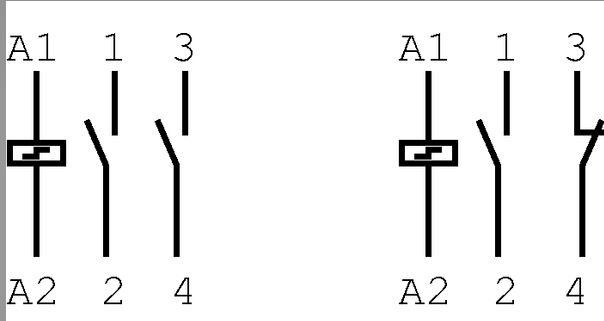

two closing contacts 16A 250VAC
pulse control
- voltage 12VDC
- pulse length min. 0.1s / max. 1h (EN60669)
change-over button and status indicator (= when orange is visible, the relay is ON)

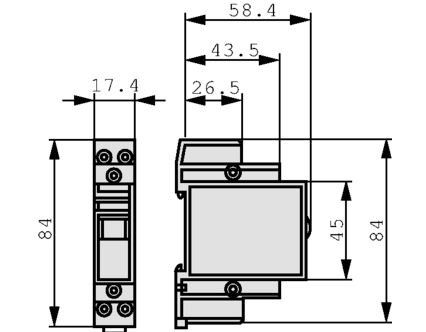

rail width 17 mm
screw terminals for wires
operating temperature -40°...+40°C
protection rating IP20

Product Information

Availability In stock
Manufacturer Finder
EAN 8012823266954
Product path Home Components Electromechanical Components Relays State memory relays IMPULSE RELAY DIN RAIL MOUNT 12VDC / 250V 16A
SKU FI202290124000
Attributes
- Product family Finder 20
- Manufacturer's model 20.22.9.012.4000
- Click for more details https://www.findernet.com/en/worldwide/series/20-series-modular-step-relays-16a/type/type-2021-modular-step-relay-16a/
