IMPULSE RELAY DIN RAIL MOUNT 230VAC / 250V 16A

Name: IMPULSE RELAY DIN RAIL MOUNT 230VAC / 250V 16A
Brand: Finder
SKU: FI202182304000
Price: 25.72 EUR
Availability: InStock

In stock 1 pcs

SKU#: FI202182304000

IMPULSE RELAY DIN RAIL MOUNT 230VAC / 250V 16A

In stock 1 pcs

SKU#: FI202182304000

Finder 20.21.8.230.4000

Quantity discount

Quantity (kpl)		Price
5+	undefined%	23,15 € / pcs

25,72 €

In stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

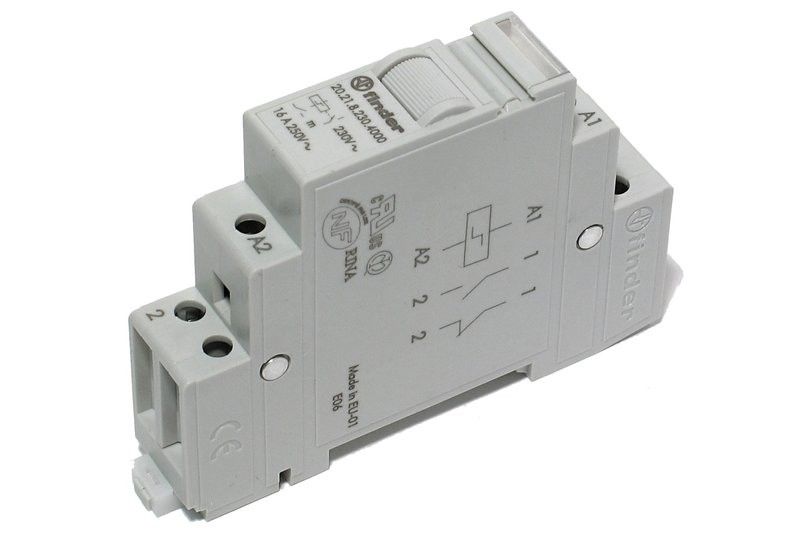

The impulse relay changes state when it receives a voltage pulse and latches mechanically until it receives a new pulse or the state-change button is pressed.

one normally open contact 16A 250VAC
pulse control
- voltage 230VAC (coil 28mA 2,5kohm)
- pulse length min. 0,1s / max. 1h (EN60669)
state-change button and position indicator (= when orange is visible, the relay is on)
width on rail 17 mm
screw terminals for wires
operating temperature -40°...+40°C
protection rating IP20

Product Information

Availability In stock
Manufacturer Finder
EAN 8012823266640
Product path Home Components Electromechanical Components Relays State memory relays IMPULSE RELAY DIN RAIL MOUNT 230VAC / 250V 16A
SKU FI202182304000
Attributes
- Power Class 16A
- Control voltage 230VAC
- IP protection class IP20
- Product family Finder 20
- Manufacturer's model 20.21.8.230.4000
- Click for more details https://www.findernet.com/en/worldwide/series/20-series-modular-step-relays-16a/type/type-2021-modular-step-relay-16a/
