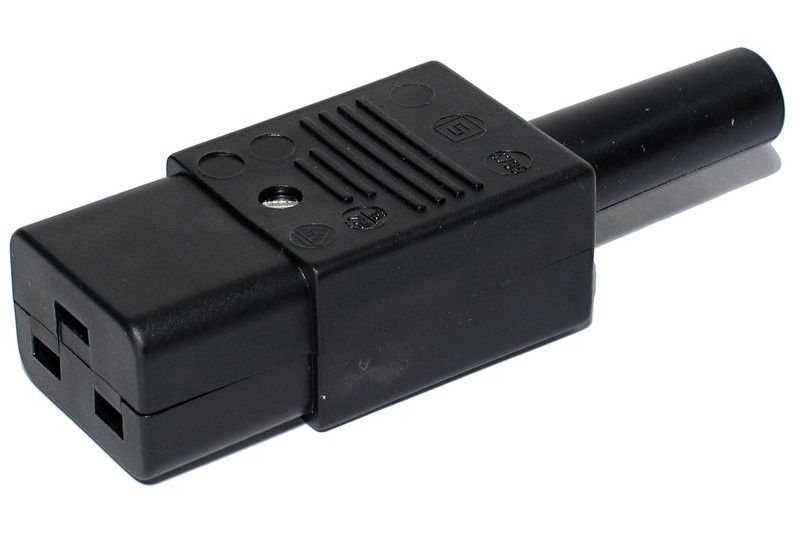

SCHURTER 4795.0000 IEC C19 cable connector

The SCHURTER 4795.0000 is a high-quality rewirable IEC C19 cable connector for demanding power supply applications. The connector is suitable for equipment that requires a reliable and safe mains connection for loads up to 16 A. Screw terminals allow durable wiring and easy installation.

Features

• IEC 60320 C19 cable connector
• Current rating: 16 A (IEC), 20 A (UL/CSA)
• Rated voltage: 250 VAC
• Rewirable design
• Screw-mounted conductor terminals
• Straight cable outlet
• Protection class I (earthed)
• Operating temperature: -25 ... +70 °C
• Housing: black, UL94 V-0 classified thermoplastic material
• Suitable for conductors up to 3 × 1.5 mm² (14 AWG)

Applications

• Servers and data center equipment
• UPS devices
• Industrial automation
• Measurement and test equipment
• High-power power supplies

Technical specifications

• Manufacturer: SCHURTER
• Part number: 4795.0000
• Connector type: IEC C19 female
• Mounting: cable mount
• Connection: screw terminal
• Number of poles: 3
• Rated voltage: 250 VAC
• Rated current: 16 A
• Color: black
