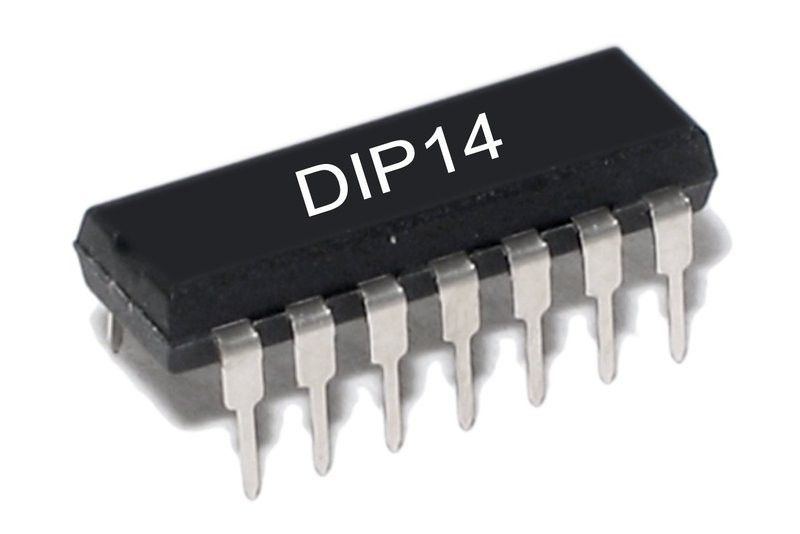

TL084BCN JFET-input operational amplifier, 4-channel, DIP-14

Texas Instruments TL084BCN is a four-channel JFET-input operational amplifier suitable for a wide range of analog applications such as active filters, signal processing, measurement equipment, audio electronics and industrial automation. The JFET inputs provide high input impedance and extremely low input current.

Features

• Four op amps in a single package
• JFET inputs and very high input impedance
• Gain bandwidth 3 MHz
• Slew rate 13 V/µs
• Low input current, typically 30 pA
• Wide supply voltage range 7...36 V or ±3.5...±18 V
• DIP-14 through-hole package
• RoHS compliant

Specifications

• Manufacturer: Texas Instruments
• Part number: TL084BCN
• Type: Four-channel operational amplifier
• Input technology: JFET
• Package: PDIP-14
• Operating temperature: 0 ... +70 °C
• Gain bandwidth (GBW): 3 MHz
• Slew rate: 13 V/µs
• Input voltage offset, typical: 2 mV
• Output current: 10 mA / channel

Applications

• Audio and preamplifiers
• Active filters
• Measurement and sensor electronics
• Industrial analog signal processing
• General-purpose amplifier and buffer circuits
