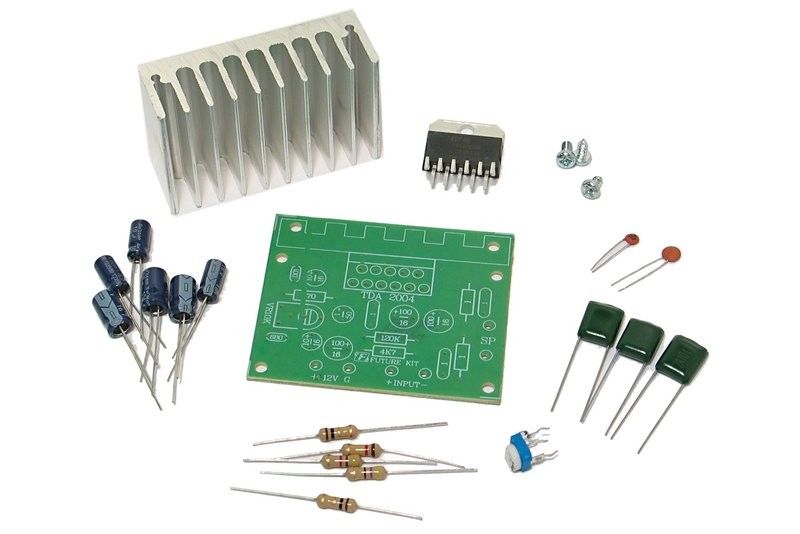

15W mono amplifier based on the TDA2005R circuit.

• Supply voltage: 12VDC 1A
• Output power: 15W @4ohm
• SNR: 80dBA
• Input sensitivity: 150mV @200kohm
• Short-circuit and overload protected
• PCB dimensions: 60,5 x 52 mm
• Includes a heatsink
  • It is recommended to use thermal paste between the amplifier circuit and the heatsink (see below)

Note! Marked as TDA2004 on the schematic and PCB.
