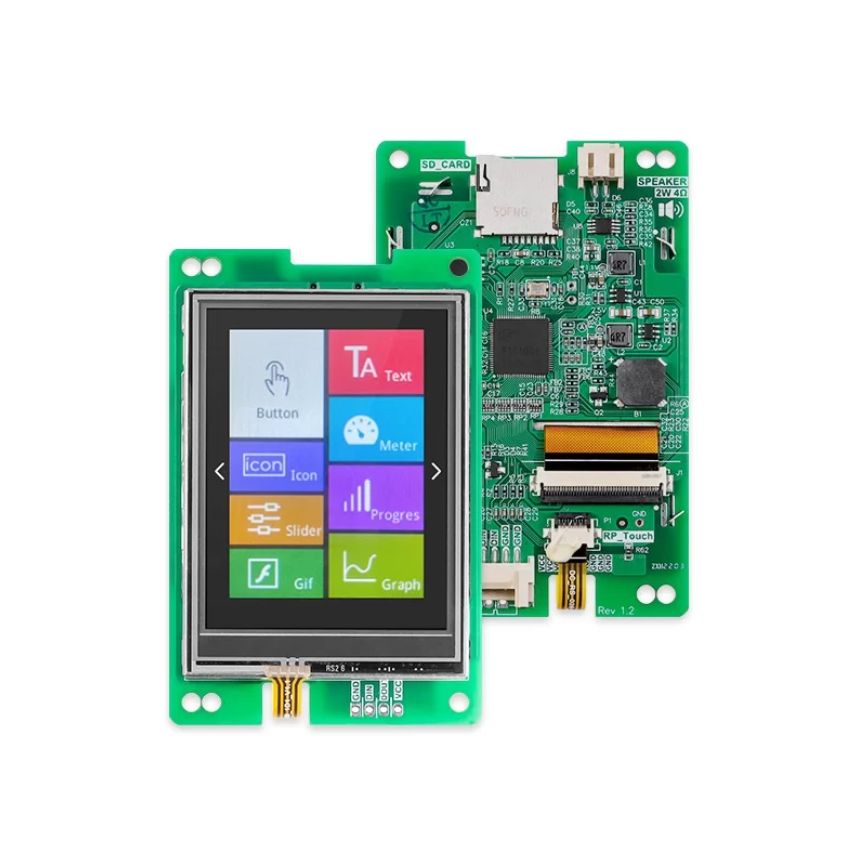

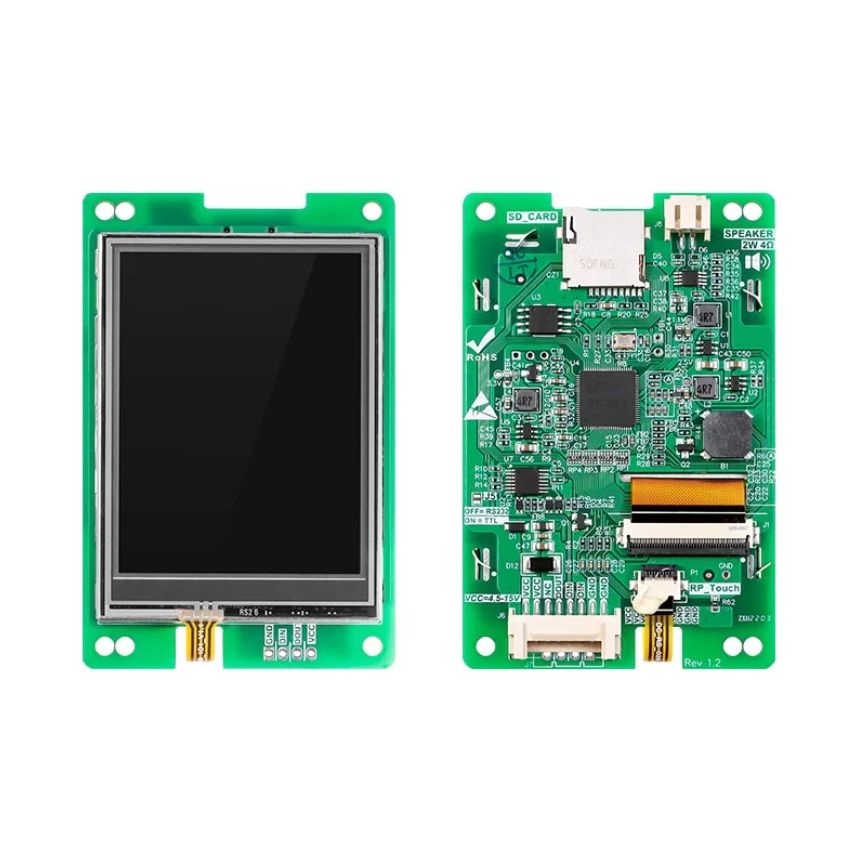

This 2.8-inch HMI touchable serial screen adopts the 400M SOC processor, makes the screen runs faster, and it can run after power is on. LUA script programming is supported, and logic and algorithms are run inside the screen to reduce communication frequency. At the same time, its power consumption is low. When the backlight is in the darkest mode, the processor runs at about 0.4w at full speed, and the sleep mode can reach about 0.17w. Support a variety of configuration controls, and conventional configuration controls can meet 95% of the user's needs. Medical grade standard design, through a variety of strict tests, high reliable quality.

Features

• Easy to use, power up and run

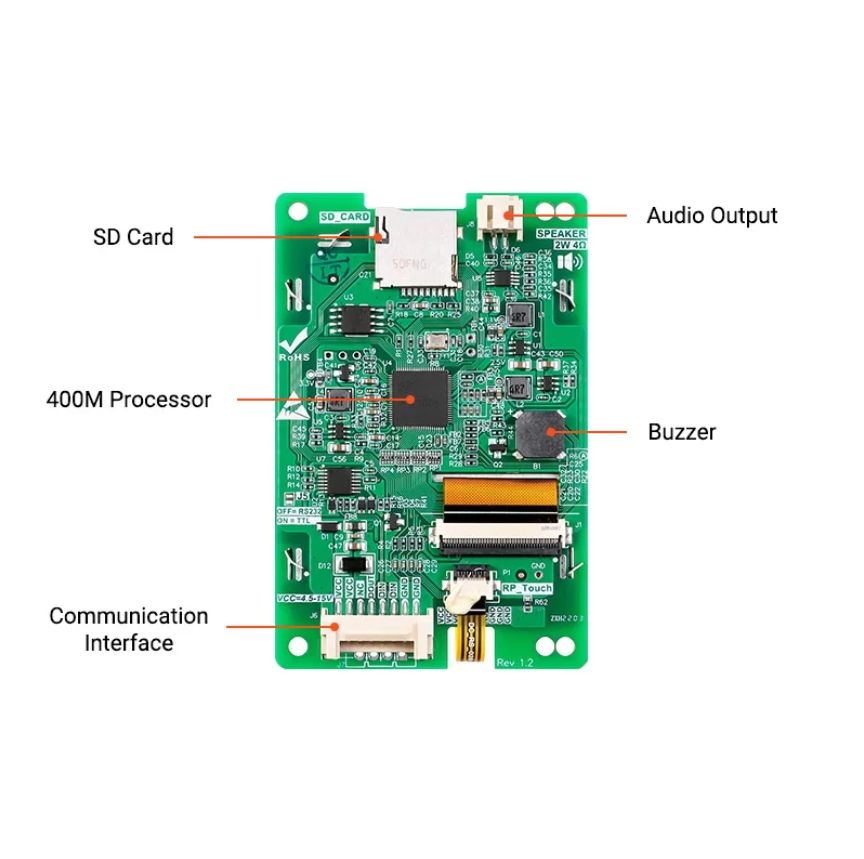

• Using the 400M SOC processor, the screen runs faster, and it can run after power on
• Support a variety of configuration controls, and conventional configuration controls meet 95% of users' need
• High reliable quality, designed with medical standards and passed several strict tests
• Support JPEG, and PNG image compression
• Support visual programming, what you see is what you get
• Support LUA script programming to reduce communication frequency

Specifications

Package contents

• 1x 2.8 inch HMI touch screen
• 1x 8pin cable
• 1x HY2.0-8P
• 1x 0.8m USB to RS-232 Cable
• 1x Debug board

Helpful links

• VisualTFT software
• Instruction Set
• Wiki
