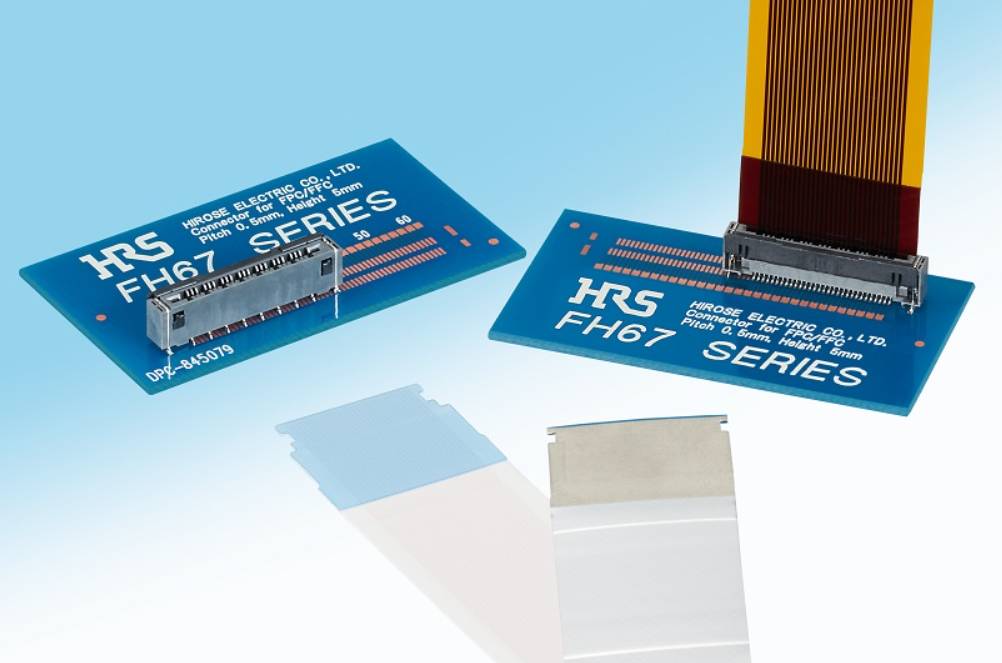

Hirose FH67-50S-0.5SV FPC/FFC connector, 50-pin, 0.5 mm, SMT

The Hirose FH67-50S-0.5SV is a 50-pin FPC/FFC/Shield FFC PCB connector from the FH67 series with a 0.5 mm contact pitch. In the vertical 5.2 mm configuration it features a One-Action Lock.

Features

• 50 pins
• 0.5 mm contact pitch
• Vertical SMT surface-mount mounting
• One-Action Lock
• Dual-point contacts
• Supports FPC, FFC and Shield FFC cables

Technical specifications

• Manufacturer: Hirose Electric
• Product family: FH67
• Manufacturer part number: FH67-50S-0.5SV
• Rated current: 0.5 A
• Rated voltage: 50 V AC/DC
• Operating temperature: -55 ... +125 °C
• FPC/FFC thickness: 0.33 ± 0.03 mm
• Connector height: 5.2 mm
