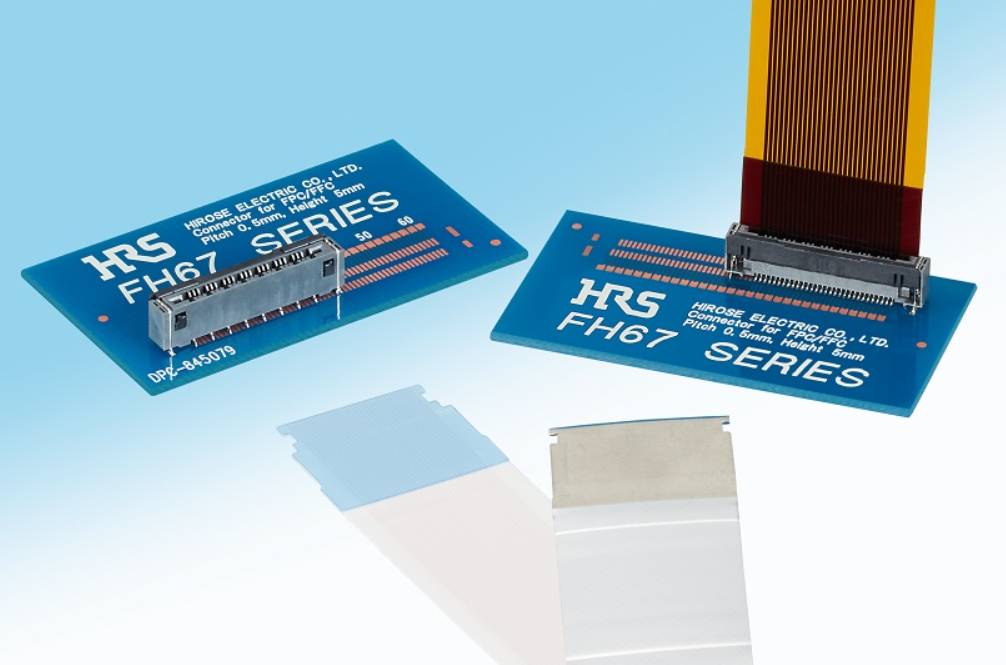

Hirose FH67-40S-0.5SV FPC/FFC connector, 40-pin, 0.5 mm, SMT

The Hirose FH67-40S-0.5SV is a 40-pin FPC/FFC/Shield FFC board connector from the FH67 series with a 0.5 mm contact pitch. The vertical 5,2 mm construction features a One-Action Lock.

Features

• 40 pins
• 0,5 mm contact pitch
• Vertical SMT surface-mount installation
• One-Action Lock
• Dual-point contacts
• Supports FPC, FFC, and Shield FFC cables

Technical specifications

• Manufacturer: Hirose Electric
• Product series: FH67
• Manufacturer part number: FH67-40S-0.5SV
• Rated current: 0,5 A
• Rated voltage: 50 V AC/DC
• Operating temperature: -55 ... +125 °C
• FPC/FFC thickness: 0,33 ± 0,03 mm
• Connector height: 5,2 mm
