Hirose FH63S-40S-0.5SH(98) FPC/FFC connector, 40-pin, 0.5 mm, SMT

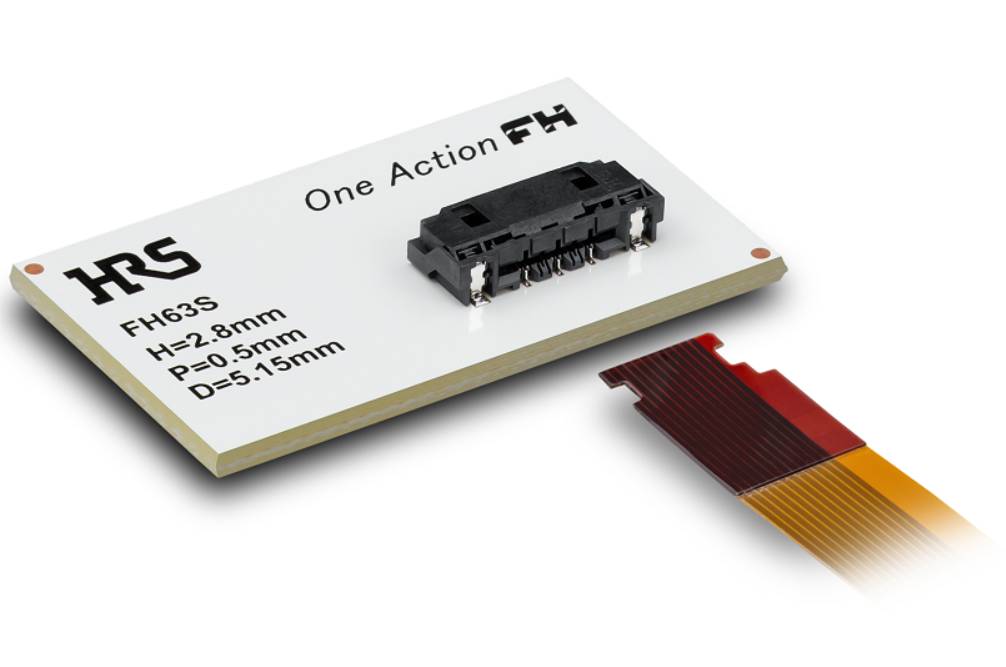

Hirose FH63S-40S-0.5SH(98) is a 40-pin FPC/FFC/Shielded FFC PCB connector of the FH63S series with 0.5 mm contact pitch. In the low 2.8 mm profile it features a bottom-contact structure and One-Action Lock -locking.

Features

• 40 pins
• 0.5 mm contact pitch
• SMT surface-mount installation
• Bottom-contact structure
• One-Action Lock -locking
• Supports FPC, FFC and Shielded FFC cables

Technical specifications

• Manufacturer: Hirose Electric
• Series: FH63S
• Manufacturer part number: FH63S-40S-0.5SH(98)
• Rated current: 0,5 A
• Rated voltage: 50 V AC/DC
• Operating temperature: -55 ... +105 °C
• FPC/FFC thickness: 0,30 ± 0,05 mm
• Connector height: 2,8 mm
