Hirose FH63S-30S-0.5SH(98) FPC/FFC connector, 30 way, 0.5 mm, SMT

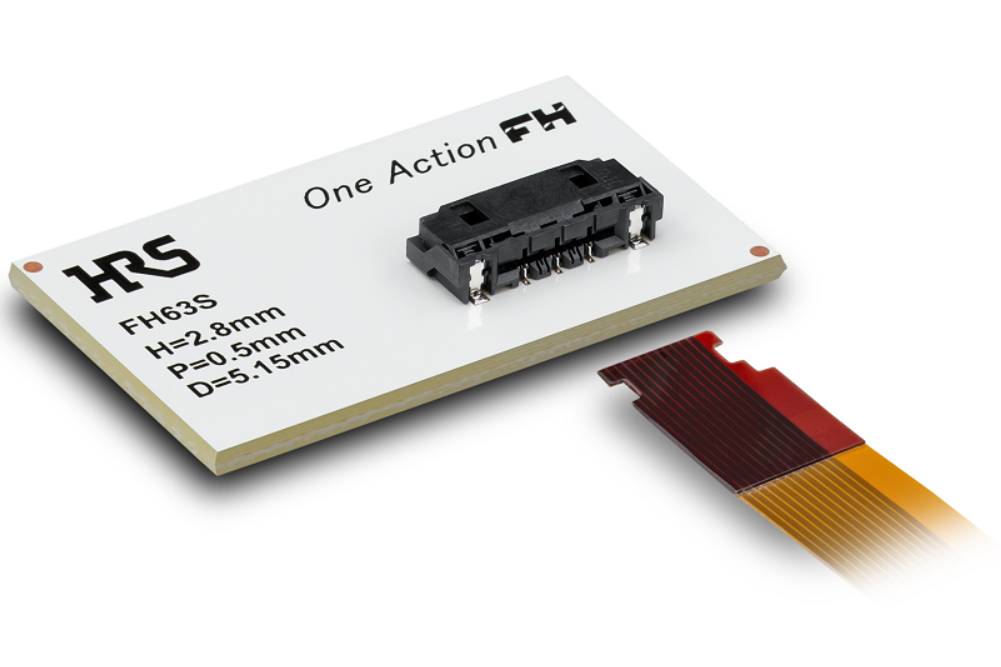

The Hirose FH63S-30S-0.5SH(98) is a 30-way FPC/FFC/Shielded FFC PCB connector of the FH63S series with 0.5 mm pitch. The low-profile 2.8 mm design features a bottom-contact construction and a One-Action Lock.

Features

• 30 ways
• 0.5 mm pitch
• SMT surface-mount termination
• Bottom-contact construction
• One-Action Lock
• Supports FPC, FFC and Shielded FFC cables

Technical specifications

• Manufacturer: Hirose Electric
• Series: FH63S
• Manufacturer part number: FH63S-30S-0.5SH(98)
• Rated current: 0.5 A
• Rated voltage: 50 V AC/DC
• Operating temperature: -55 ... +105 °C
• FPC/FFC thickness: 0,30 ± 0,05 mm
• Connector height: 2,8 mm
