Hirose FH63S-20S-0.5SH(98) FPC/FFC connector, 20-pin, 0.5 mm, SMT

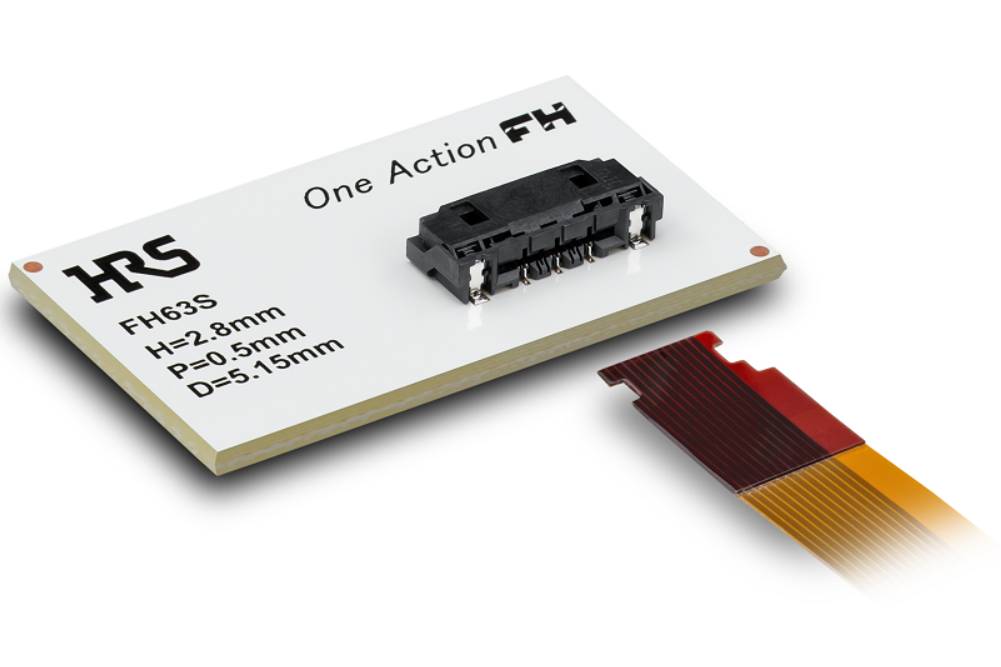

The Hirose FH63S-20S-0.5SH(98) is a 20-pin FPC/FFC/Shielded FFC board connector from the FH63S series with a 0.5 mm contact pitch. The low 2.8 mm profile uses a bottom-contact construction and a One-Action Lock retention.

Features

• 20 pins
• 0.5 mm contact pitch
• SMT surface-mount installation
• Bottom-contact construction
• One-Action Lock retention
• Supports FPC, FFC and Shielded FFC cables

Technical specifications

• Manufacturer: Hirose Electric
• Product family: FH63S
• Manufacturer part number: FH63S-20S-0.5SH(98)
• Rated current: 0.5 A
• Rated voltage: 50 V AC/DC
• Operating temperature: -55 ... +105 °C
• FPC/FFC thickness: 0.30 ± 0.05 mm
• Connector height: 2.8 mm
