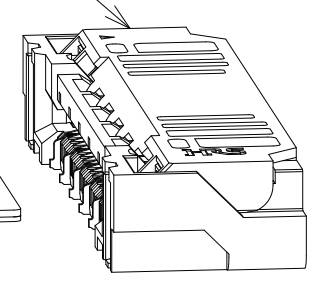

Hirose FH63S-10S-0.5SH(98) FFC/FPC connector 10-pin, 0.5 mm, SMT

The Hirose FH63S-10S-0.5SH(98) is a compact 10-pin FFC/FPC board connector suitable for space-saving electronic applications. The connector uses a 0.5 mm pitch and surface-mount (SMT) mounting. The FH63S series One-Action Lock mechanism facilitates cable insertion and ensures a reliable connection even in vibration-prone environments.

Features

• 10-pin FFC/FPC connector
• 0.5 mm pitch
• Surface-mount (SMT)
• Horizontal, right-angle configuration
• Bottom contact terminal design
• One-Action Lock / Flip Lock
• Connector height only 2.8 mm
• Gold-plated contacts for reliable signal transmission
• Operating temperature up to +105 °C / +125 °C depending on the version
• RoHS compliant

Technical specifications

• Manufacturer: Hirose Electric
• Series: FH63S
• Part number: FH63S-10S-0.5SH(98)
• Connector type: FFC/FPC receptacle
• Number of contacts: 10
• Pitch: 0.5 mm
• Mounting: SMT
• Contact position: Bottom Contact
• Rated current: 0.5 A
• Rated voltage: 50 V
• Connector height: 2.8 mm
• Housing material: LCP, halogen-free
• Flammability rating: UL94 V-0

Applications

• Display and touch panel connections
• Camera modules
• Portable devices
• Industrial electronics
• Measurement instruments and control units
• Automation equipment

Note: The connector is intended for FFC/FPC cables manufactured with a 0.5 mm pitch and uses a Bottom Contact design. The cable contact surfaces must be compatible with the contact orientation of the connector.
