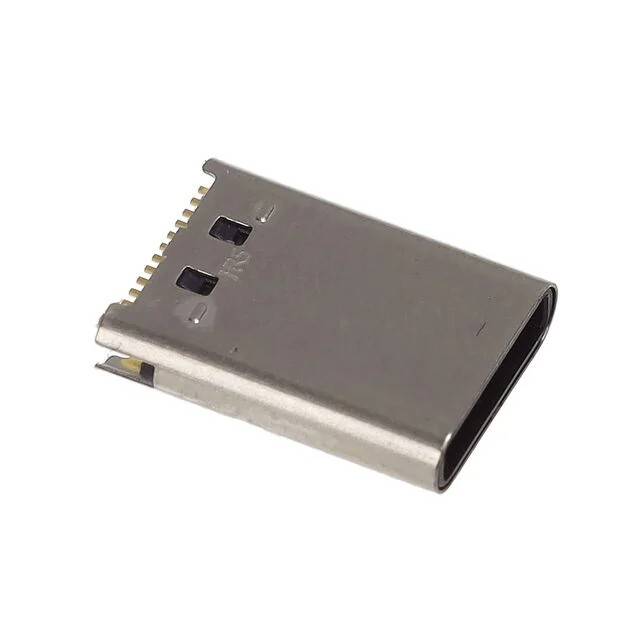

Hirose CX60-24S1-UNIT USB Type-C male connector, 24-pin SMT

The Hirose CX60-24S1-UNIT is a 24-pin male connector (plug) compliant with the USB Type-C standard, intended for integration into cables, adapters and custom electronics solutions. The connector's compact design and surface-mount (SMT) mounting allow use in space-constrained devices and adapters.

Features

• USB Type-C male connector (plug)
• 24 contacts
• Surface-mount (SMT) mounting
• Reversible USB-C connector
• Metal shielding for increased mechanical strength
• Suitable for data transfer and power delivery applications
• Hirose CX60 series

Technical specifications

• Manufacturer: Hirose Electric
• Product code: CX60-24S1-UNIT
• Connector type: USB Type-C plug (male)
• Number of pins: 24
• Mounting: SMT
• Connector orientation: Right-angle (horizontal)
• Shielding: Metal shield
• RoHS compliant

Applications

• USB-C cables and adapters
• Development and prototype projects
• Embedded systems
• Measurement and test equipment
• Power delivery and charging applications
• Industrial USB-C solutions

Package contents

1 × Hirose CX60-24S1-UNIT USB Type-C male connector
