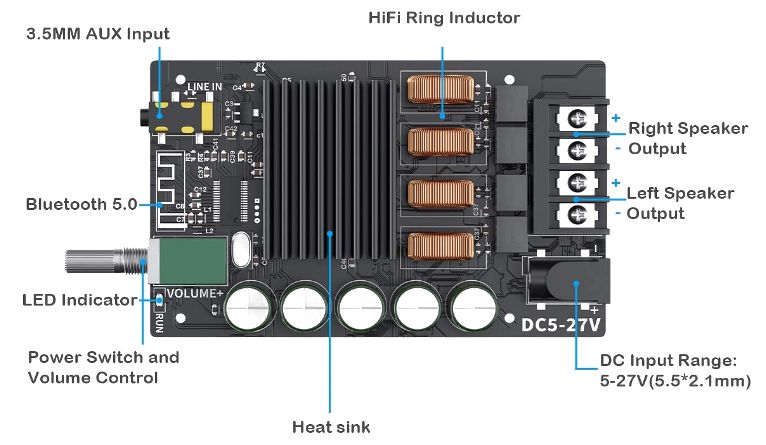

TECHNICAL SPECIFICATIONS

• Operating voltage: 5-27V
• Input: AUX + Bluetooth 5.0
• Output power: 100W*2
• Compatible speaker: 4Ω-8Ω
• Bluetooth range: 15m (no obstacles)
• Protection mechanisms: overvoltage, undervoltage, overheating, short-circuit protection and DC detection.

Power-voltage ratio:
12V — 8Ω speaker / 24W (left channel) + 24W (right channel), 4Ω speaker / 40W + 40W
15V — 8Ω / 32W + 32W, 4Ω / >60W + 60W
19V — 8Ω / 64W + 64W, 4Ω / >92W + 92W
24V — 8Ω / 76W + 76W, 4Ω / >110W + 110W

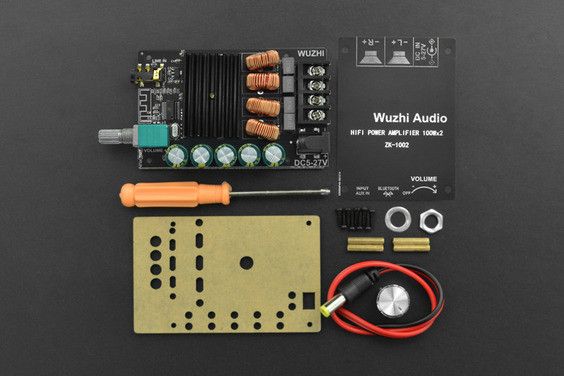

PACKAGE CONTENTS

• HIFI digital Bluetooth amplifier-100W*2 x1 x1
• Acrylic protective case x2
• Screwdriver x1
• 20cm power cable x1
• Knob x1
• Cooling fin x1
• Accessory kit x1
