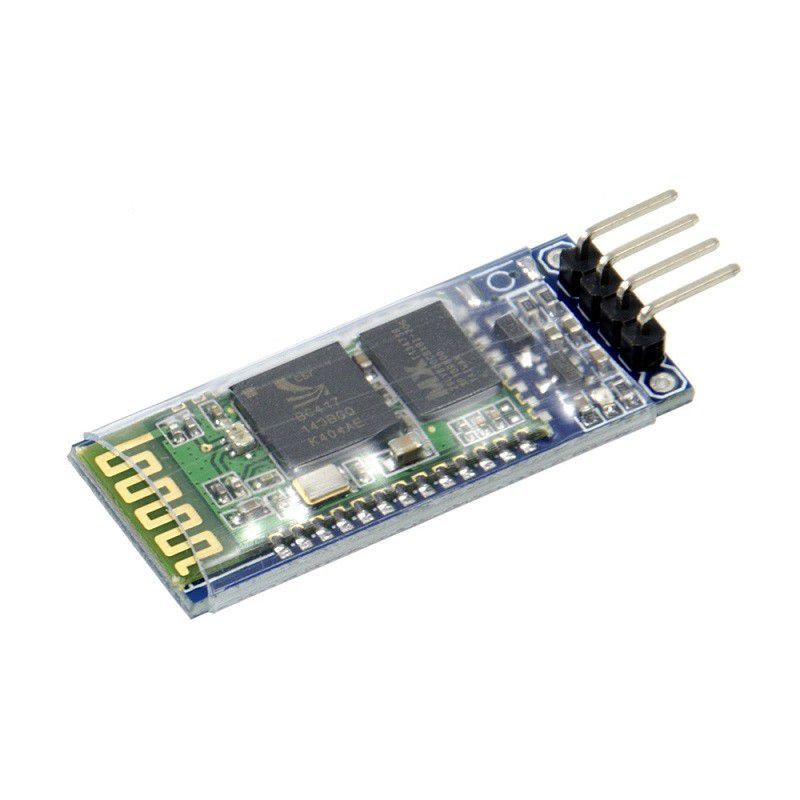

This is the popular Bluetooth module, HC06, which is slave mode only. It's very easy to add wireless serial connectivity for your device with this module. Examples for Arduino and other boards are available. Once you pair with other Bluetooth device you work like with normal UART to exchange data.

This module have build in 3.3V voltage regulator and helps to breakout the important pins (Vcc, Gnd, Txd, Rxd). Based on CSR BC4 chip, Bluetooth V2.0 + EDR.

Features

• Bases at CSR BC04 Bluetooth technology
• with build-in 2.4GHz PCB antenna
• It’s at the Bluetooth class 2 power level
• Range test: 10 meters
• Operating voltage: 3.3V to 6V DC
• Operating current in pairing is in the range of 30~40mA
• Operating current in communication is 8mA
• Interface via UART, default baudrate at 9600 bps
• Operating temperature range: -25 °C - +75°C
• Dimensions 27mm×13mm×2.2mm
