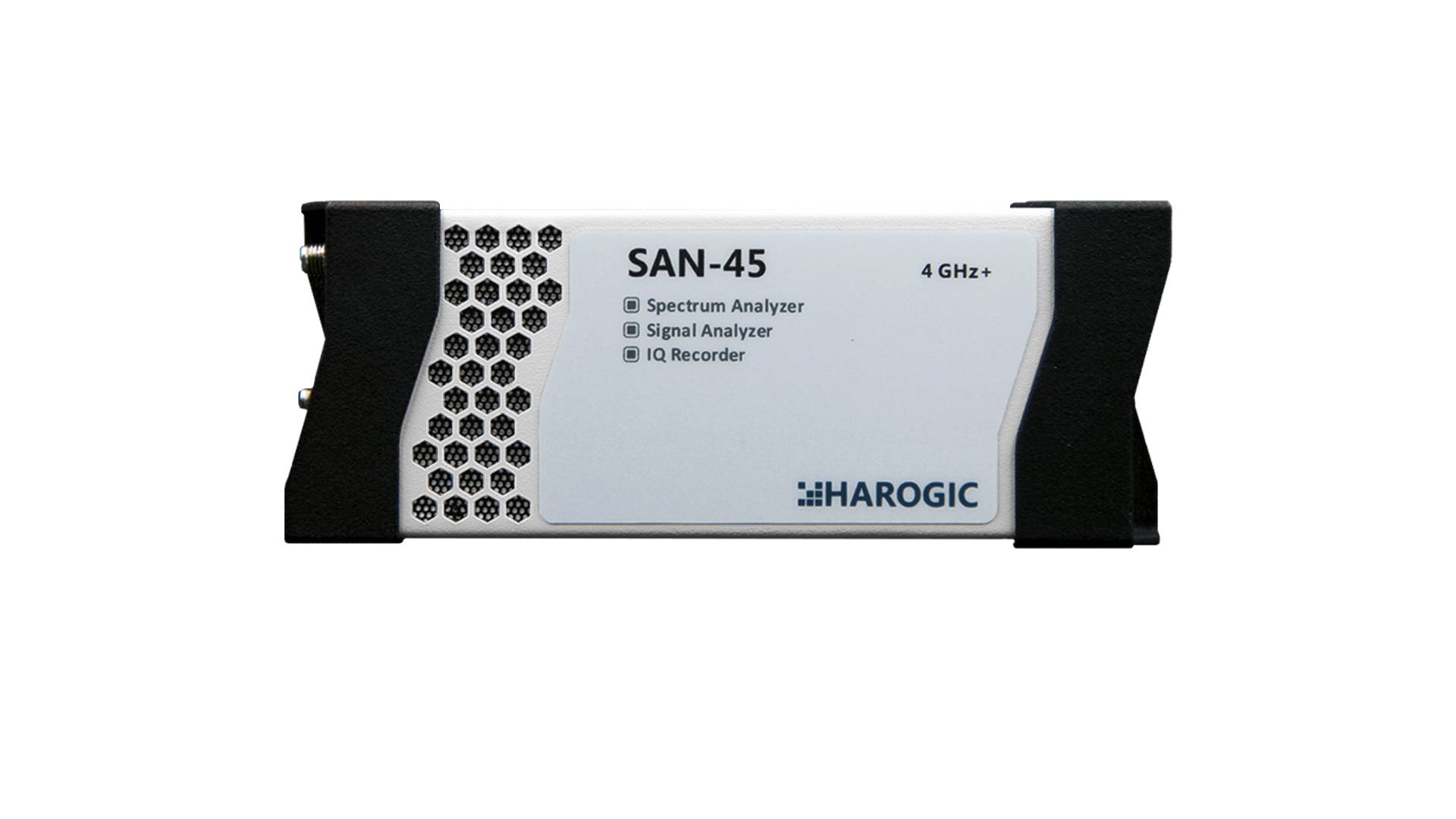

Harogic SAN-45 is a USB-connected spectrum analyzer for RF development, EMC pre-compliance measurements and signal monitoring. The device covers the frequency range 9 kHz–4.5 GHz and provides a 50 MHz contiguous real-time analysis bandwidth.

The superheterodyne receiver and 14 preselector filters enable a typical DANL of -168 dBm/Hz at 1 GHz. This allows observation of low-level signals even in the presence of strong carriers. RBW range is 0.1 Hz–10 MHz and amplitude accuracy is ±1.0 dB.

The included SAStudio4 software contains nine operating modes, such as phase noise measurement, harmonic analysis and AM/FM demodulation. The API supports multiple programming languages and integration with environments such as Qt and LabVIEW. GNSS and USB-C act as the device interfaces, and the software is compatible with Windows and Linux operating systems.

Optional HOA-90 and HDA-100 antennas can be configured automatically in SAStudio4 with an antenna factor. OCXO reference clock, GNSS, 100 MHz analysis bandwidth and vector modulation and pulse analysis are factory-available options.

Technical specifications

• Frequency range: 9 kHz–4.5 GHz
• RBW: 0.1 Hz–10 MHz
• Real-time analysis bandwidth: 50 MHz
• DANL: -168 dBm/Hz, typically at 1 GHz
• Amplitude accuracy: ±1.0 dB
• Phase noise: -110 dBc/Hz, at 10 kHz offset and 1 GHz
• Receiver: superheterodyne
• Preselector filters: 14
• Tracking generator: no
• Interfaces: USB-C, GNSS
• Operating systems: Windows, Linux
• Display: external
• Software: SAStudio4
• Software operating modes: 9
• Measurement and analysis functions: phase noise measurement, harmonic analysis and AM/FM demodulation
• API: supports multiple programming languages and Qt and LabVIEW integration
• Factory options: OCXO reference clock, GNSS, 100 MHz analysis bandwidth and vector modulation and pulse analysis
• Dimensions: 163 × 66 × 37 mm
• Weight: 420 g

Package contents

• USB memory stick
• USB-C data cable
• USB power cable
• Power supply
