Features:
- AC/DC frequency range: Up to 20 kHz
- Effective measurement range: 20mA - 65A DC
- Converter that allows a multimeter to measure current information and an oscilloscope to measure current waveforms.

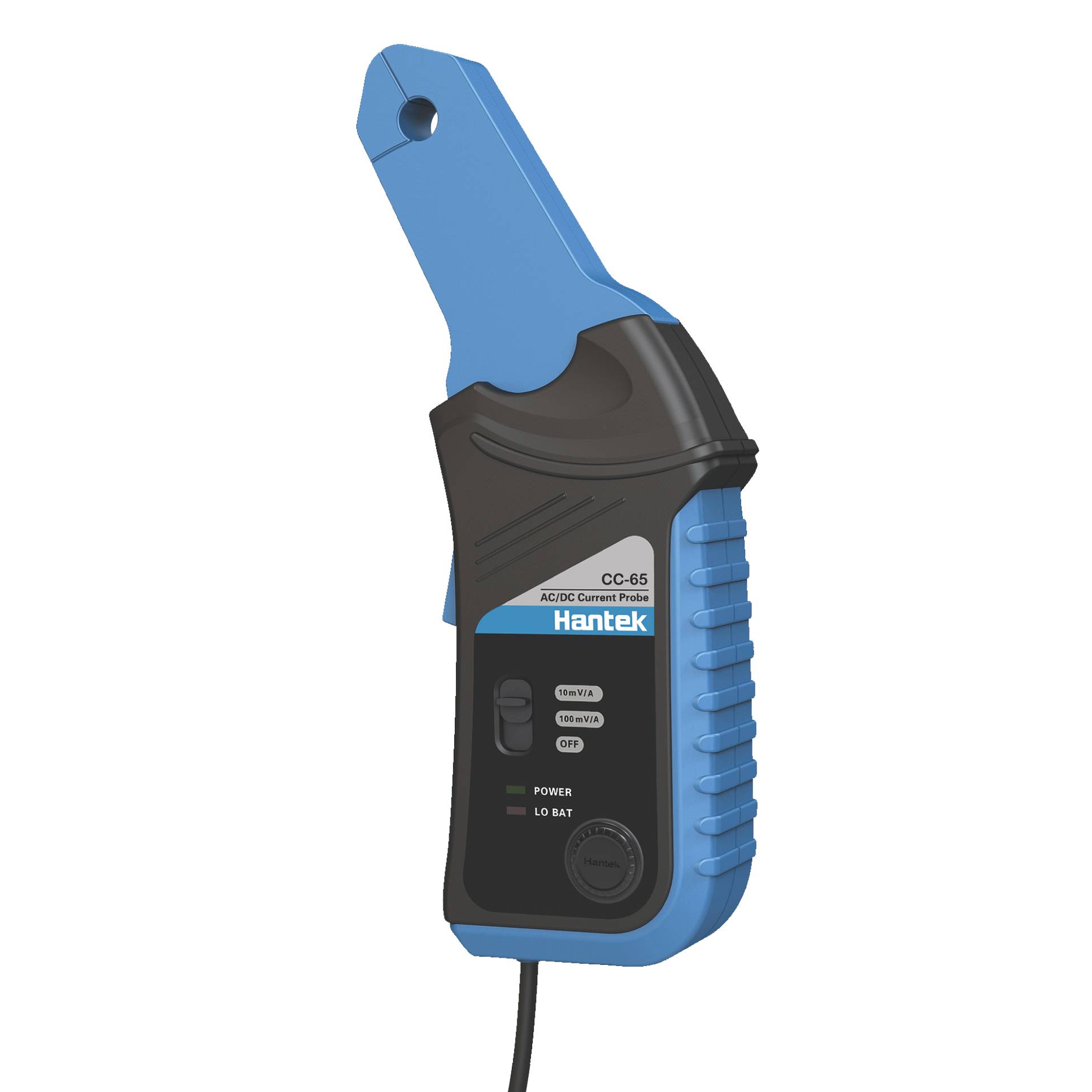

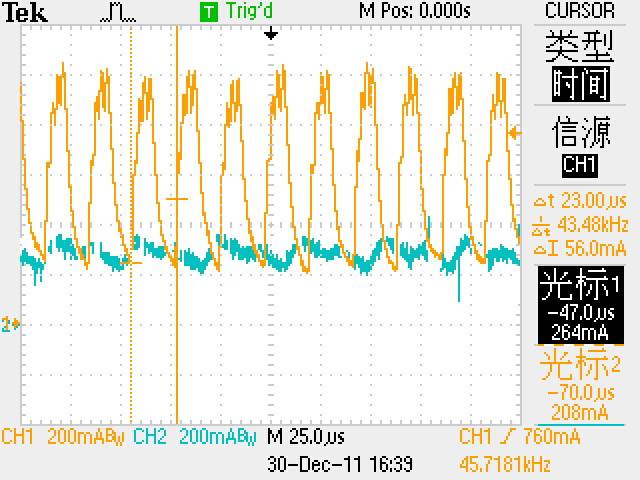

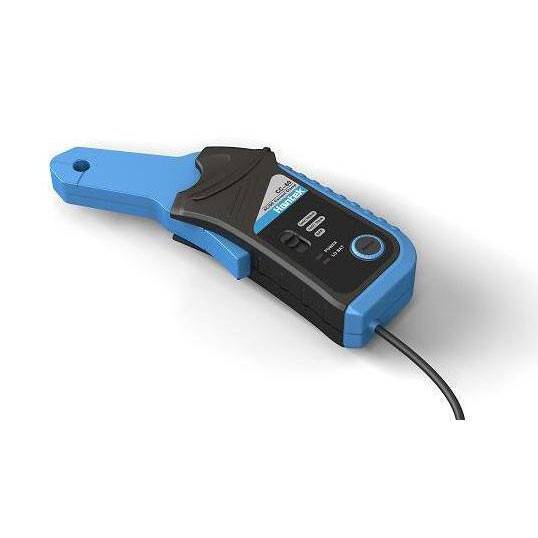

The current transformer consists of a permalloy and Hall element that convert alternating or direct current linearly into an AC or DC voltage. And if you connect it to an oscilloscope with a BNC-type connector, you can observe the current waveforms; if you connect it to a multimeter with a banana-type connector, you can obtain current information.
Applications:
Power circuit measurement and fault analysis;
Motor measurement for inverters (or other electronics);
Measurement of power electronics devices.
Specifications
| DCA Range |
100mV /A |
±(1.5%±5mA) 10mA ~ 20A |
| 10mV/A |
±(2%±20mA) 100mA ~ 40A;
±(4%±0.3A) 40A ~ 65A |
| ACA Range |
100mV /A |
±(2%±30mA) 100mA ~ 10A (40Hz ~ 2KHz);
±(4%±30mA) 100mA ~ 10A (2KHz ~ 10KHz);
±(6%±30mA) 100mA ~ 10A (10KHz ~ 20KHz);
±(8%±30mA) 10A ~ 15A (40Hz ~ 20KHz) |
| 10mV/A |
±(2%±30mA) 100mA ~ 40A (40Hz ~ 1KHz);
±(4%±30mA) 100mA ~ 40A (1KHz ~ 2KHz);
±(6%±30mA) 100mA ~ 40A (3KHz ~ 5KHz);
±(8%±0.3A) 40A ~ 65A (40Hz ~ 20KHz) |
| Maximum conductor size |
|
9mm max. |
| Low battery indicator |
|
LED |
| Operating temperature |
|
0℃ to 50℃, 70% R.H. |
| Storage temperature |
|
-20℃ to +70℃, 80% R.H. |
| Battery Type |
|
9V DC |
| Weight |
|
250 g |
| Dimensions |
|
195mm(H) x 70mm(W) x 33mm(D) |
| Output connector |
|
Supplied with cable with BNC plug. |
