Note! The Raspberry Pi board shown in the product image is not included in the delivery.

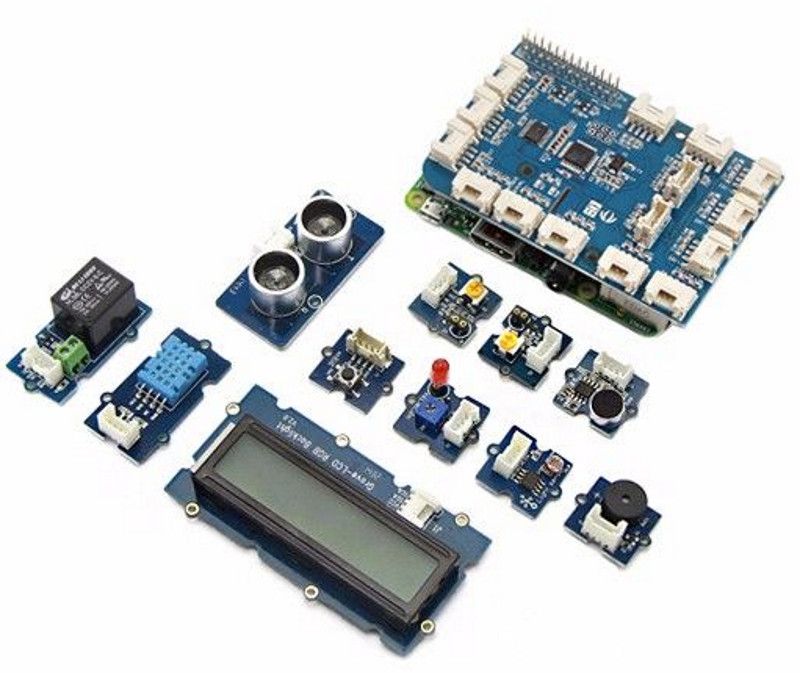

GrovePi+ Starter Kit is the gateway to exploring Grove sensors and actuators with Raspberry Pi. Containing a GrovePi+ add-on board and 12 of the most popular Grove modules, the kit is a great way to get started with the plug-and-play world of Grove with Raspberry Pi.
GrovePi+ is CE certified and is compatible with Raspberry Pi 2, 3 and 4 and works with Linux and Win 10 IoT. Raspberry Pi board not included.
Features
- One GrovePi+ board together with 12 popular Grove sensors and 10 Grove cables
- GrovePi+ is compatible with Raspberry Pi A+, B, B+ / 2, 3, 4.
- CE certified and compatible with Linux and Win 10 IoT.
Description
With a GrovePi+ board together with 12 carefully selective Grove sensors with 10 Grove cables, this starter kit gets you up and running with Grove using Raspberry Pi quickly. Just slip the GrovePi+ board over your Raspberry Pi and connect sensors to the board and you're ready to start playing and prototyping with a powerful hardware platform
GrovePi+ is stacked on top of the Raspberry Pi without the need for any other connections. Communication between the two occurs over the I2C interface. All Grove modules connect to the universal Grove connectors on the GrovePi+ shield via the universal 4 pin connector cable.
Grove modules work on analog and digital signals and can be connected directly to the ATMEGA328 microcontroller on the Grove Pi+. The microcontroller acts as an interpreter between the Raspberry Pi and the Grove sensors. It sends, receives, and executes commands sent by the Raspberry Pi.
Part List
| Grove Pi+ |
1 |
| Grove - Rotary Angle Sensor |
1 |
| Grove - Sound Sensor |
1 |
| Grove - LCD RGB Backlight |
1 |
| Grove - Temp&Humi Sensor |
1 |
| Grove - Red LED |
1 |
| Grove - Light Sensor |
1 |
| Grove - Buzzer |
1 |
| Grove - Relay |
1 |
| Grove - Blue LED |
1 |
| Grove - Button |
1 |
| GrovePi+ Guidebook |
1 |
| Cables |
10 |
| Grove - UItrasonic Ranger |
1 |
| Grove - Green LED |
1 |
