PRODUCT DETAILS

Description

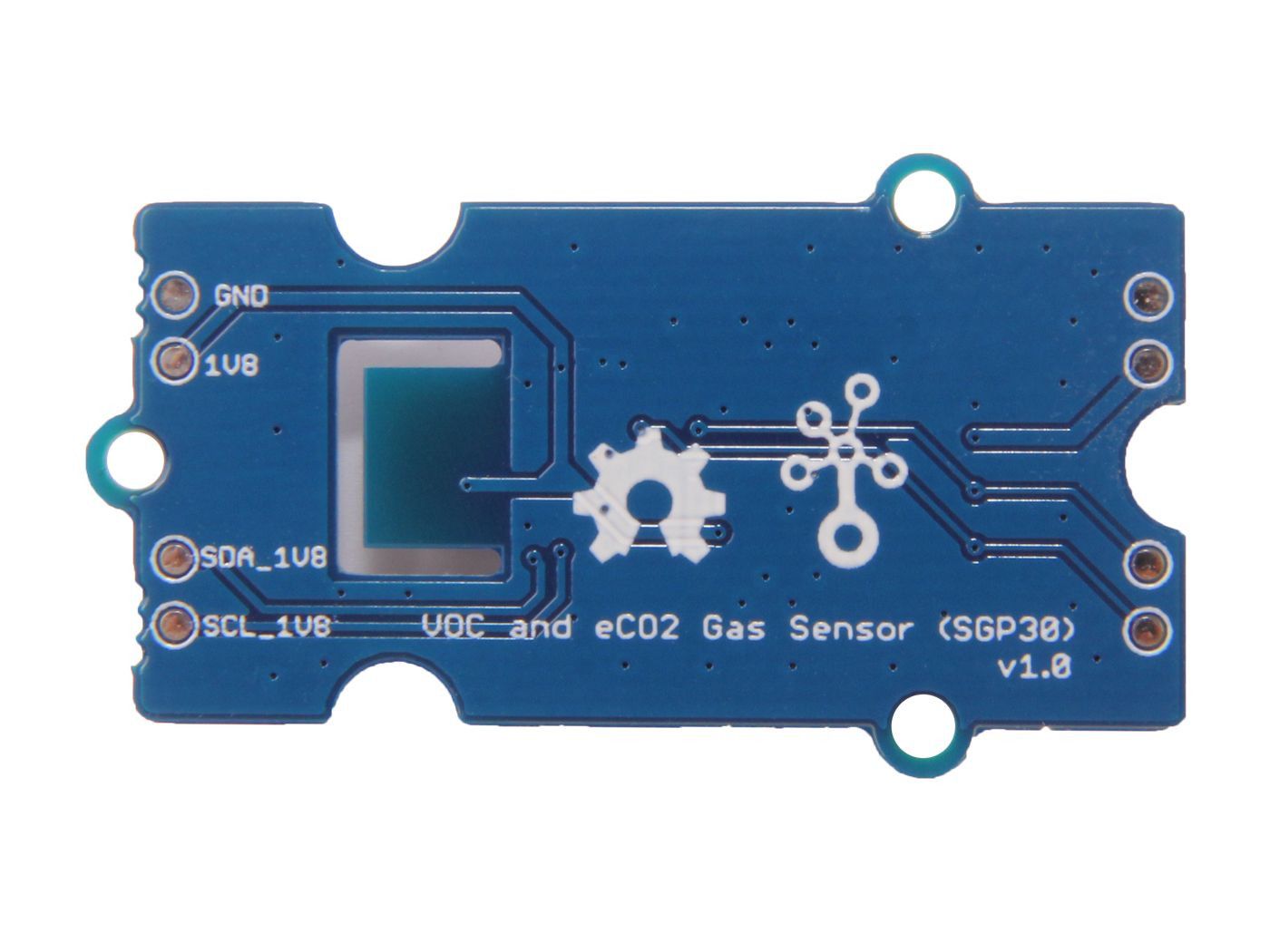

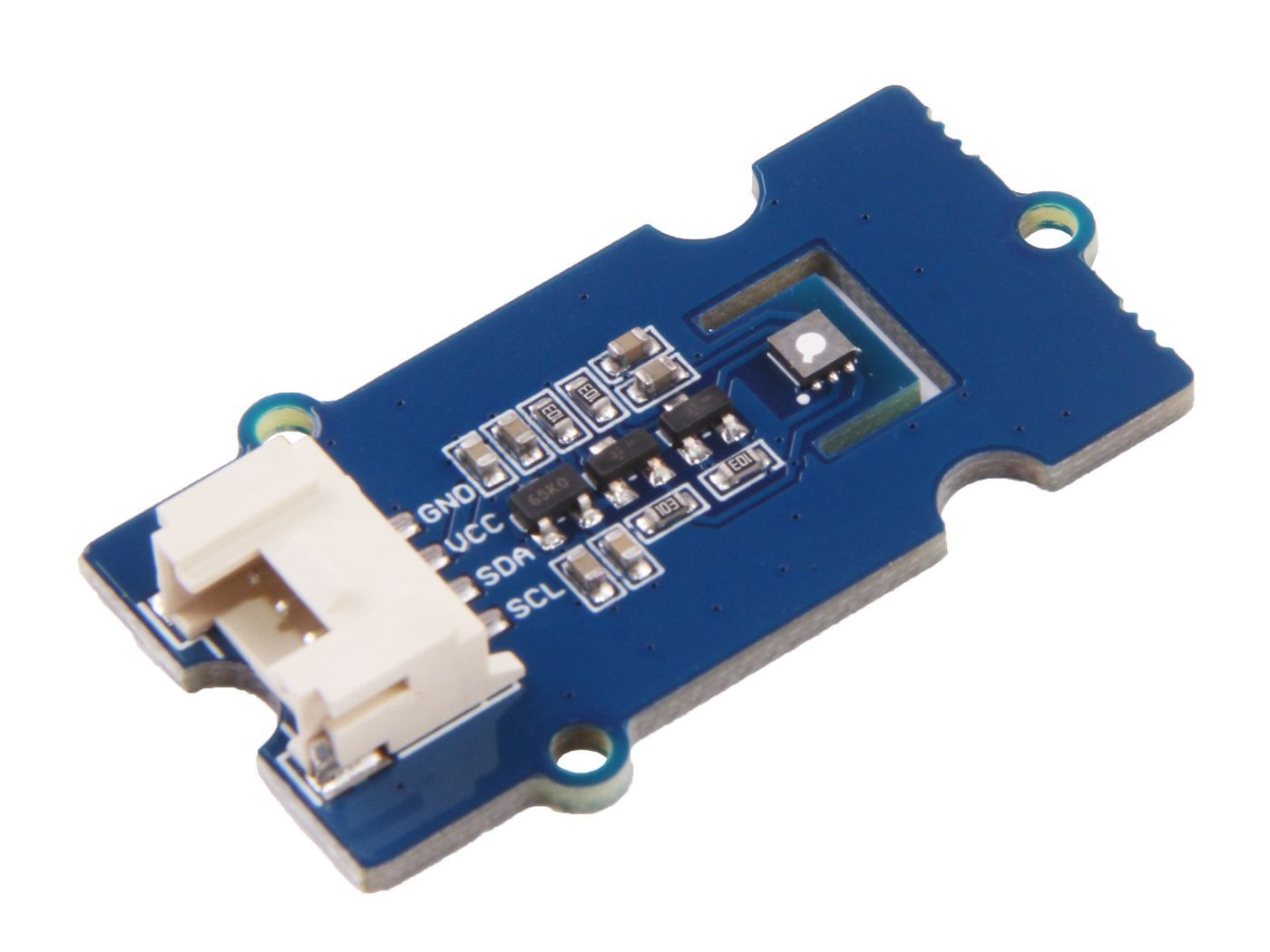

The Grove-VOC and eCO2 Gas Sensor SGP30 is an air quality sensor. Based on SGP30, this module provides TVOC (Total Volatile Organic Compounds) and CO2eq output with outstanding long-term stability and low power consumption, which make it a perfect choice for indoor air quality detection using Arduino or Raspberry Pi.

The Sensirion SGP30 is a digital multi-pixel gas sensor which can easily integrate with air purifiers, demand-controlled ventilation, and other IoT applications. Powered by Sensirion’s CMOSens®technology, it integrates a complete sensor system on a single chip featuring a digital I2C interface, a temperature-controlled micro hotplate, and two preprocessed indoor air quality signals. As the first metal-oxide gas sensor featuring multiple sensing elements on one chip, the SGP30 provides more detailed information about the air quality.

For more technical information, please refer to Seeed wiki Grove - VOC and eCO2 Gas Sensor(SGP30). Click and check how it works with Raspberry Pi!

Features

• Multi-pixel gas sensor for indoor air quality applications
• Outstanding long-term stability
• I2C interface with TVOC and CO2eq output signals
• Low power consumption
• Chip module tape and reel packaged, reflow solderable

Application

• Indoor air quality monitoring
• Air purifier
• Demand-controlled ventilation

Technical details

Part List
