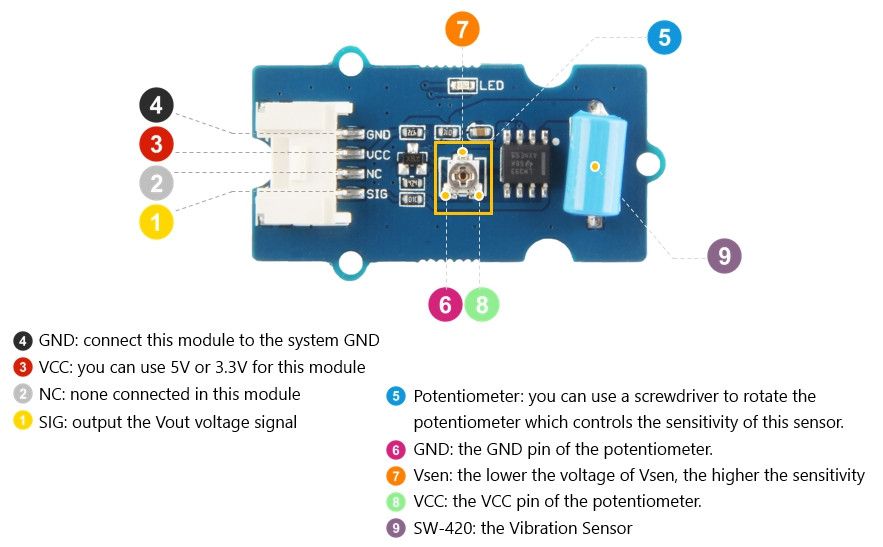

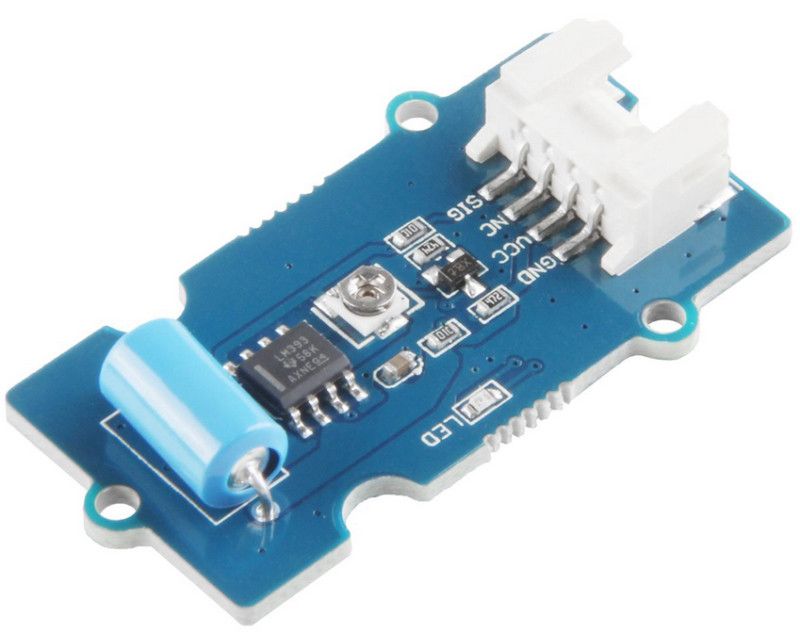

The Grove - Vibration Sensor (SW-420) is a high sensitivity non-directional vibration sensor. When the module is stable, the circuit is turned on and the output is high. When the movement or vibration occurs, the circuit will be briefly disconnected and output low. At the same time, you can also adjust the sensitivity according to your own needs.

All in all, this is a perfect module for vibration or tilt sensor.

Features

• Non-directional
• High sensitivity
• Respond to vibration, tilt
• Waterproof
• Compression resistance

Typical Applications

• Car, bicycle, motorcycle burglar alarm
• Game control
• Vibration detection

Part List
