PRODUCT DETAILS

Features

• Multi-channel digital light sensor: can detect UV-light, visible light and infrared light

• Wide spectrum detection range: 280-950nm

• Easy to use: I2C Interface(7-bit), compatible with Grove port, just plug-and-play

• Programmable configuration: Versatile for various applications

• 3.3/5V Supply, suitable for many microcontrollers and SBCs

Description

Summer is coming, want to make a UV detector to know the UV index when you are under the sun? Grove - Sunlight Sensor is recommended here.

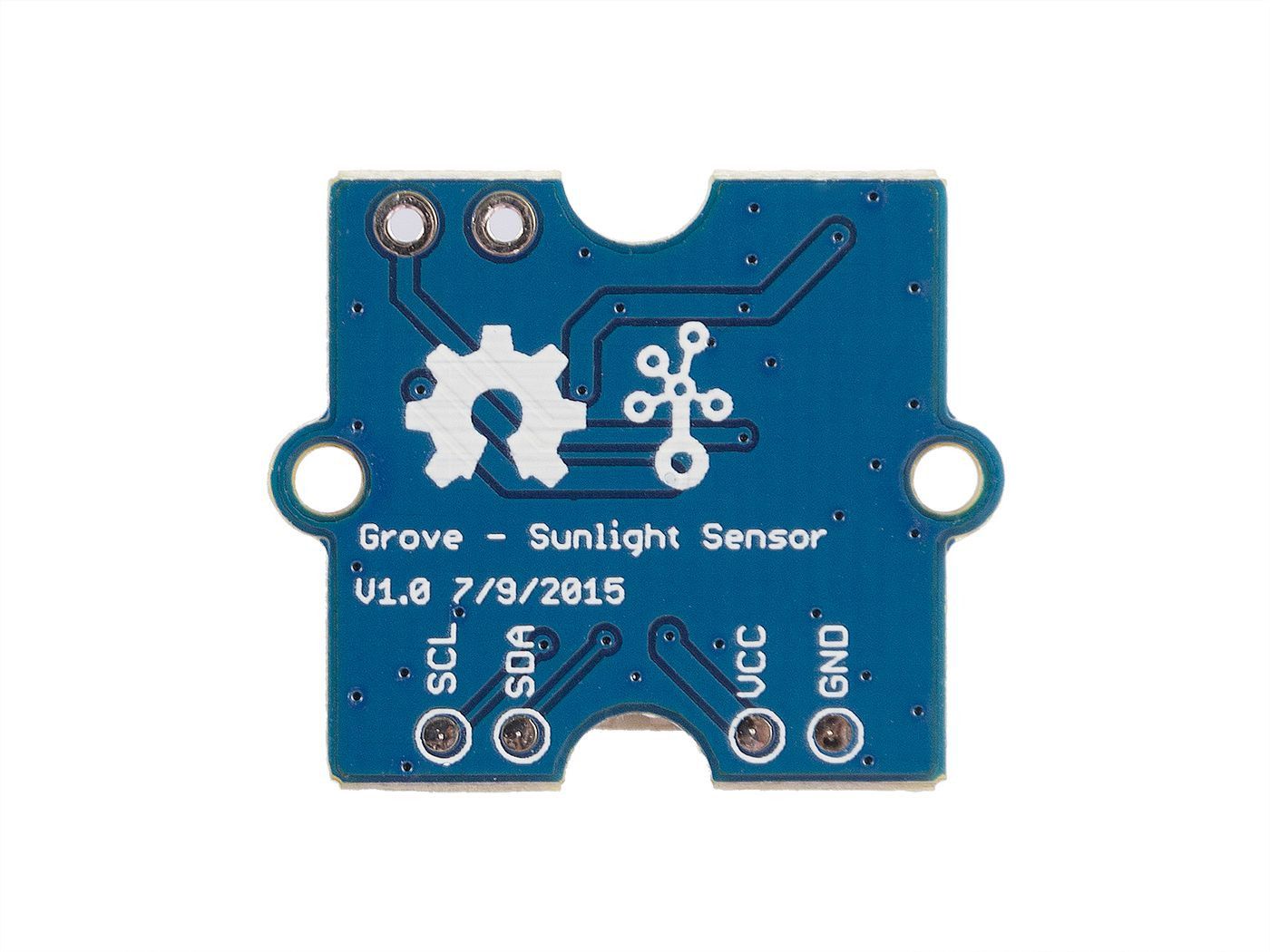

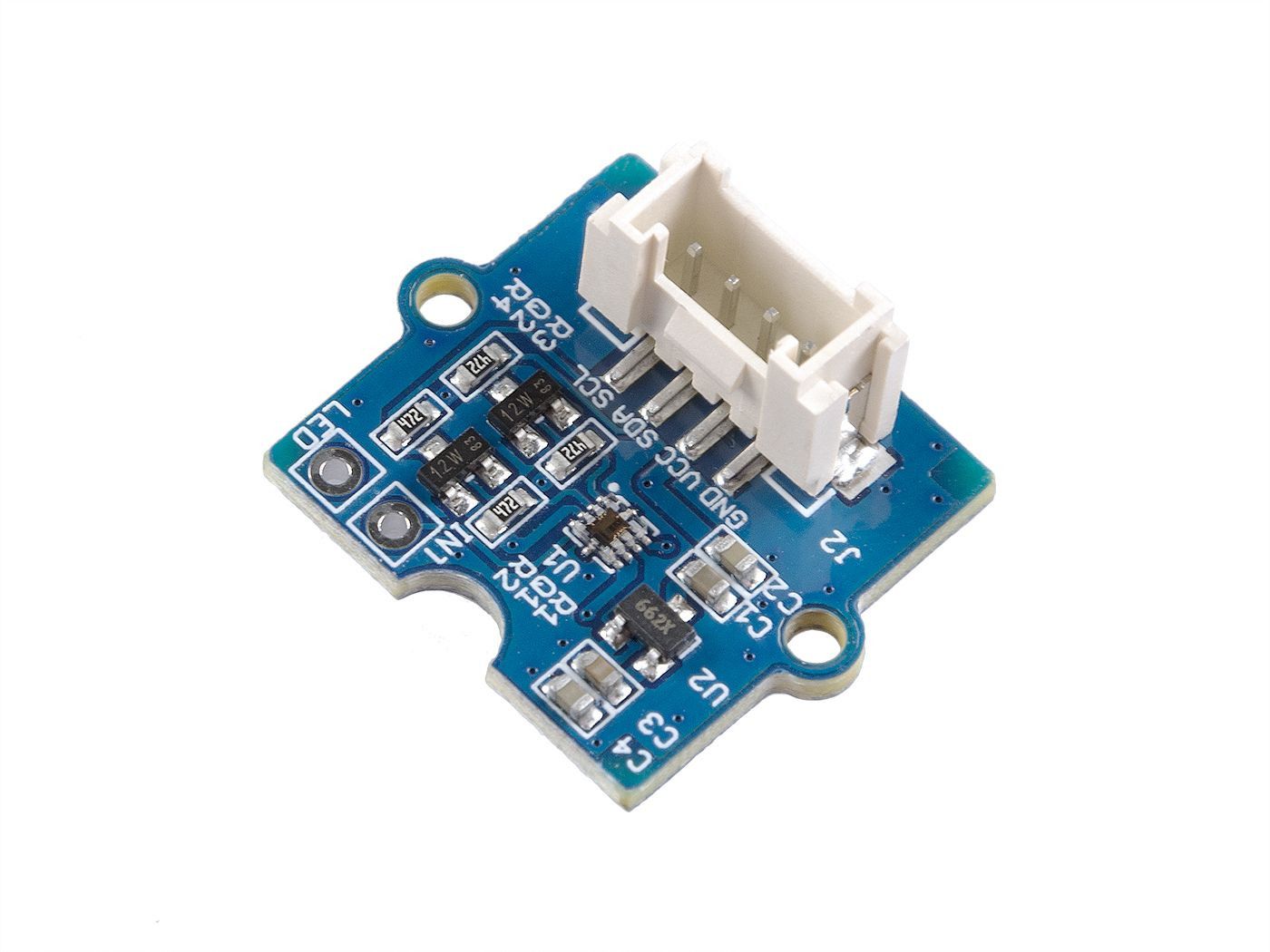

Grove - Sunlight Sensor is a multi-channel digital light sensor, which has the ability to detect UV-light, visible light and infrared light.

This device is based on SI1151, a new sensor from SiLabs. The Si1151 is a low-power, reflectance-based, infrared proximity, UV index and ambient light sensor with I2C digital interface and programmable-event interrupt output. This device offers excellent performance under a wide dynamic range and a variety of light sources including direct sunlight.

Grove - Sunlight Sensor includes an on-board Grove connector, which helps you to connect it to your Arduino easily. You can use this device for making some projects which need to detect the light, such as a simple UV detector for your Raspberry Pi weather station, or a smart irrigation system using Arduino if you need to monitor the visible spectrum.

Applications

• Light detection

• smart irrigation system

• DIY weather station

Technical details

Part List

Links

• Wiki Grove - Sunlight Sensor
• Grove Selection Guide

• Schematic in PDF
• Si1145 datasheet
• Github Repositoriy for Grove - Sunlight Sensor
• Wiki Spectrum
• Wiki Lumen (unit)
• Wiki Ultraviolet index
• Introduction to Grove
