Grove - Slide Potentiometer is a linear variable resistor with a total resistance of 10k. When you move the lever from one side to the other, its output voltage will range between 0 V to the VCC you apply. Three of four Grove pins are connected to VCC, GND and the ADC IN on the slide.

PRODUCT DETAILS

Description

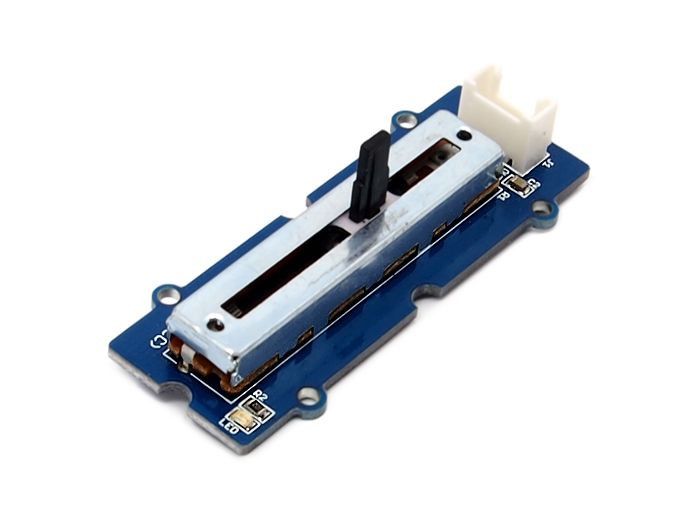

Grove - Slide Potentiometer is a linear variable resistor with a total resistance of 10k. When you move the lever from one side to the other, its output voltage will range between 0 V to the VCC you apply. Three of four Grove pins are connected to VCC, GND and the ADC IN on the slide, while the remaining pin is connected to a green indicator LED. You can use the indicator LED to visually display the change on the potentiometer.

Grove also provides Grove - Rotary Angle Sensor (Rotary Potentiometer) that produces analog output between 0 and Vcc (5V DC with Seeeduino) on its D1 connector. The D2 connector is not used. The angular range is 300 degrees with a linear change in value. The resistance value is 10k ohms, perfect for Arduino use.

Grove - Slide Potentiometer is both compatible with both Arduino and Raspberry Pi. Please use a Base Shield V2 to connect it with your Arduino boards and use a Base HAT for Raspberry Pi to connect with your Raspberry Pi.

Features

• 30 mm long slide length
• Linear resistance taper
• Grove compatible

Application Ideas

• Voltage divider: a linear circuit that produces an output voltage as a fraction of its input voltage

• HID for controlling panels

Technical details

Part List

Links

• Wiki Grove-Slide Potentiometer
• Grove Selection Guide

Video
