Product Description

PRODUCT DETAILS

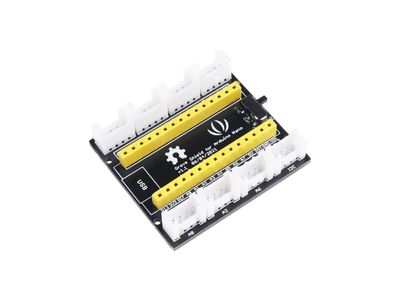

Grove Shield for Arduino Nano provides you a simple way to connect with Arduino Nano and also Seeeduino Nano.This shield help you get rid of breadboard and jumper wires by pulling out the pins of the motherboard and expands to 8 Grove connectors. V1.1 version supports the Arduino Nano 33 series development board.

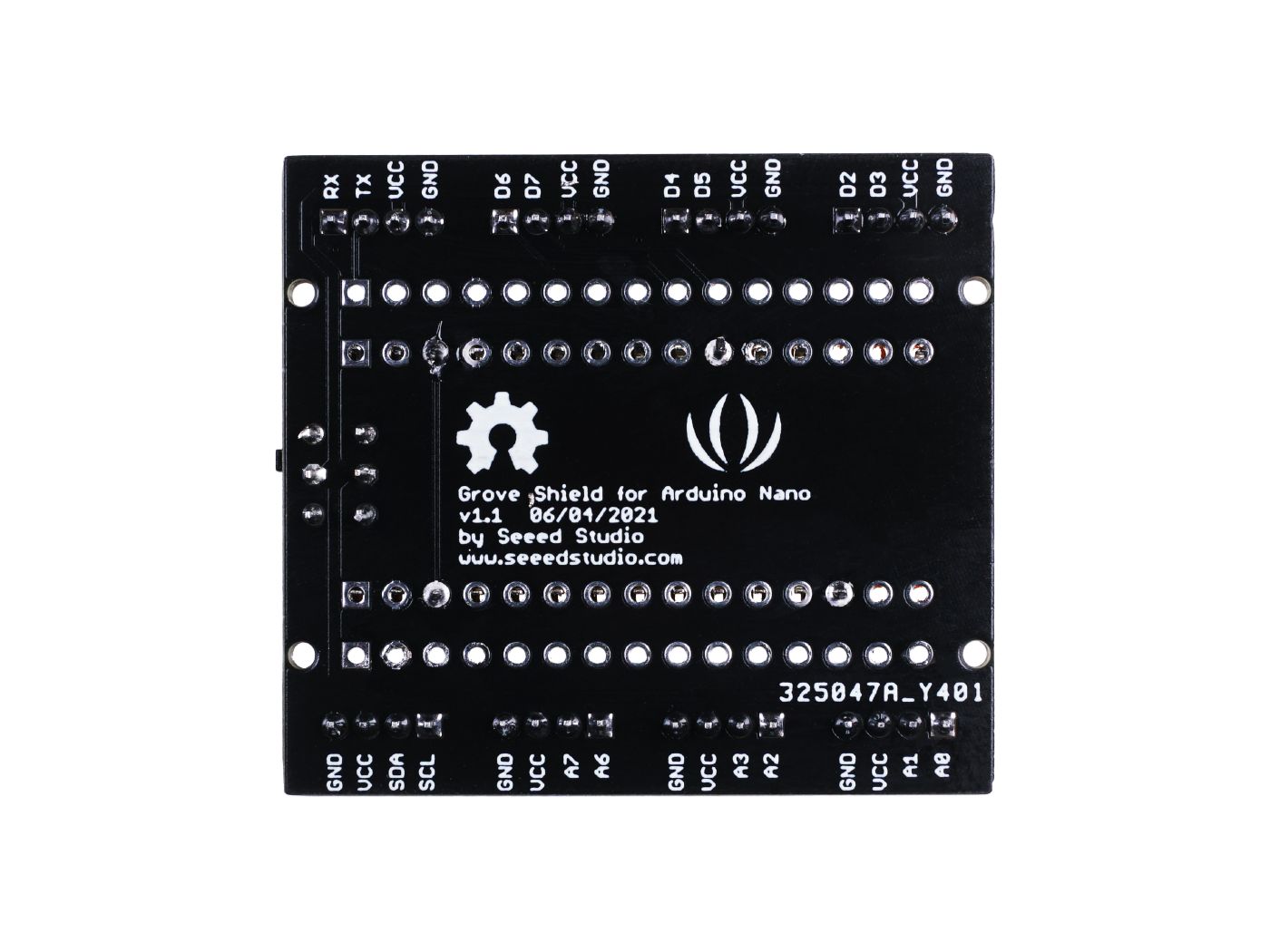

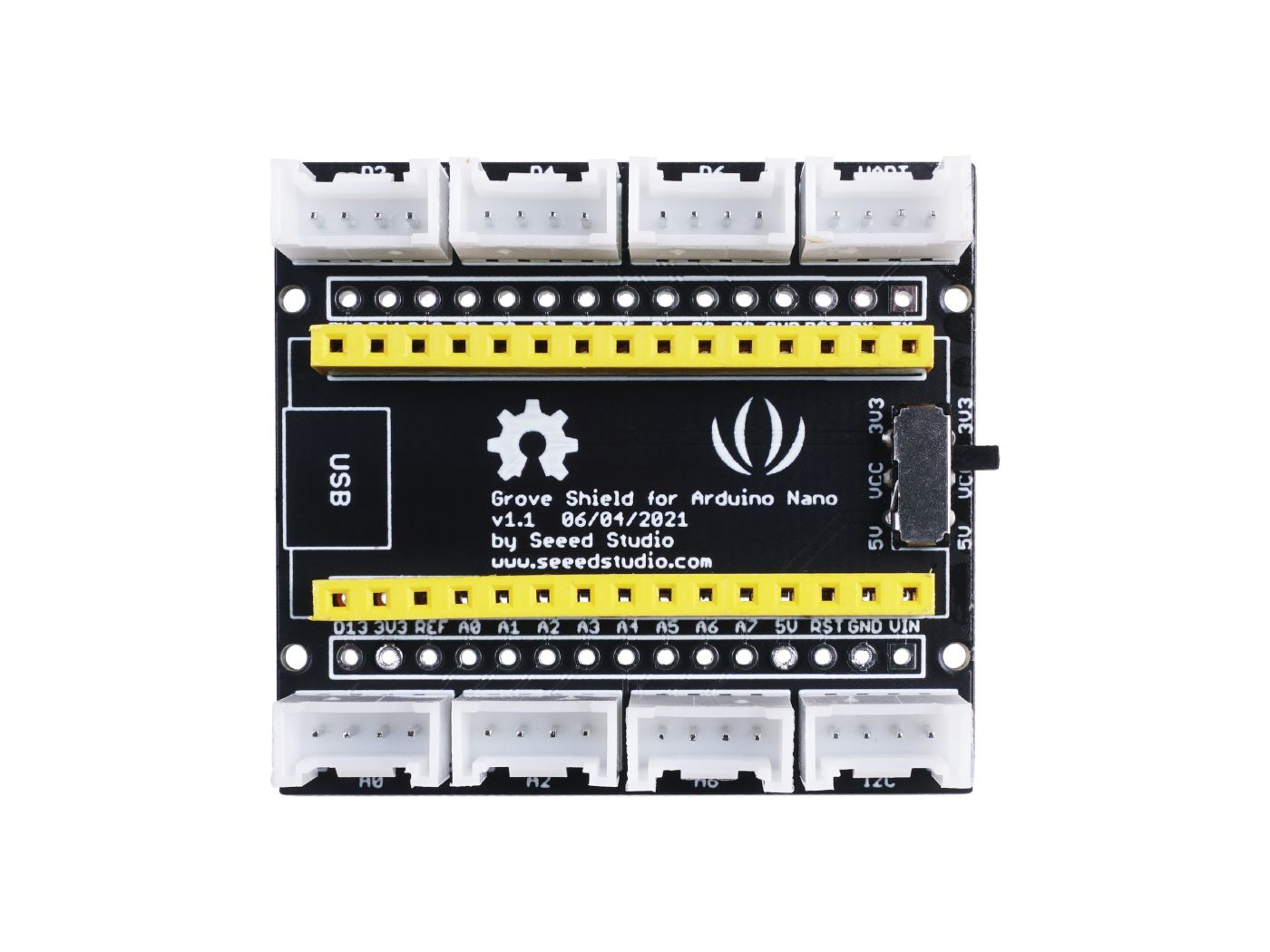

As the name indicate this shield is made for Arduino Nano, but it also can be used with Seeeduino Nano. This shield pulls out the pins of the motherboard and expands to 8 Grove connectors, including 3 Grove digital connectors, 3 Grove analog connectors, 1 Grove I2C connector, and 1 Grove UART connector.

With the help of the Grove system, you can connect hundreds of Grove sensors, Grove actuators and Grove displays to the Arduino Nano with a simple plug.

Seeed Studio has updated Grove Shield to V1.1, supports the Arduino Nano 33 series development board.

V1.1 Change Note:

Add VCC 3.3V/5V Switch

V1.1 Support List:

Arduino Nano
Seeeduino Nano
Arduino Nano Every
Arduino Nano 33 IoT*
Arduino Nano 33 BLE*
Arduino Nano 33 BLE Sense*

Attention

To work with Arduino 33 serial boards, please switch the VCC power to 3.3V. If the VCC power supply is switched to 5V, the development board may be damaged!

Part List

1x Grove Shield for Arduino Nano

Product Information

Availability Temporarily out of stock in the online store
Manufacturer Seeed Studio
Product path Home Development Cards Modules Grove Grove Shield for Arduino Nano
SKU SEEED-103100124
Attributes
- Compatible Arduino Nano
- Manufacturer's model 103100124
- Click for more details https://www.seeedstudio.com/Grove-Shield-for-Arduino-Nano-p-4112.html
