PRODUCT DETAILS

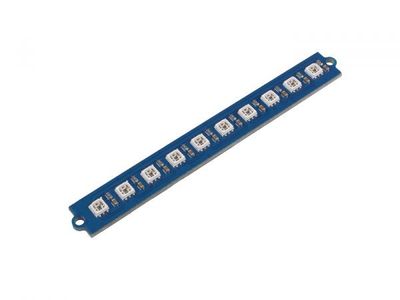

Grove – RGB LED Stick is built with 10 WS2813B and each pixel gray level are 256 which achieves“256*256*256=16777216” full-color display. You can use this little stick to create hundreds and thousands of light effects.

Grove - RGB LED Stick is integrated with 10 full-color RGB LEDs with 2KHz refresh frequency, and Each pixel gray levels are 256 on the stick. All the LEDs are WS2813 Mini, which is an intelligent control and high cost-effective LED. The WS2813 supports signal break-point continuous transmission, which means you can continue to use other LEDs with one led be broken. You can use this little stick to create hundreds and thousands of light effects, you can use it on Christmas or Halloween decorations even your light shows!

Features

• 10 WS2813B IC, 3535 LED
• Intelligent Reverse-connection protection.
• Each pixel gray levels are 256, which achieves 16777216 full-color display.
• The refresh frequency reaches to 2KHz.
• Plug-and-play: Easy to use by Grove compatible interface

Typical application

• Christmas decoration
• Illumination
• Toys

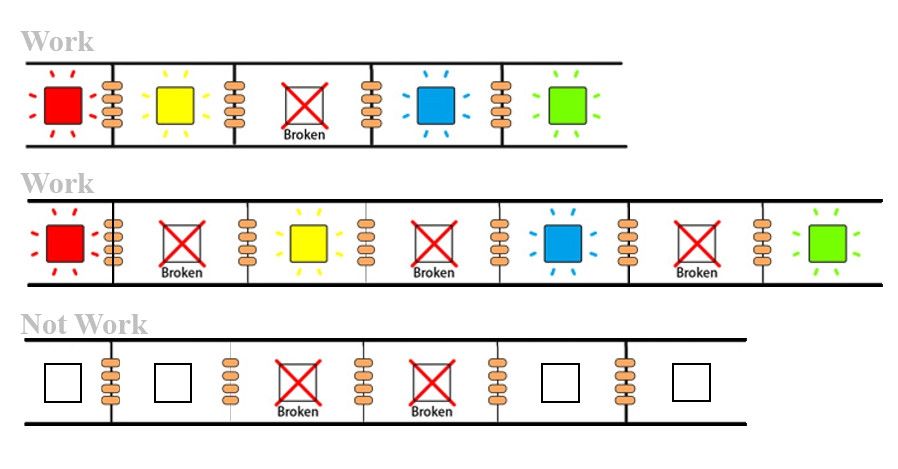

Signal break-point continuous transmission

[img-25667-left-desc_default]

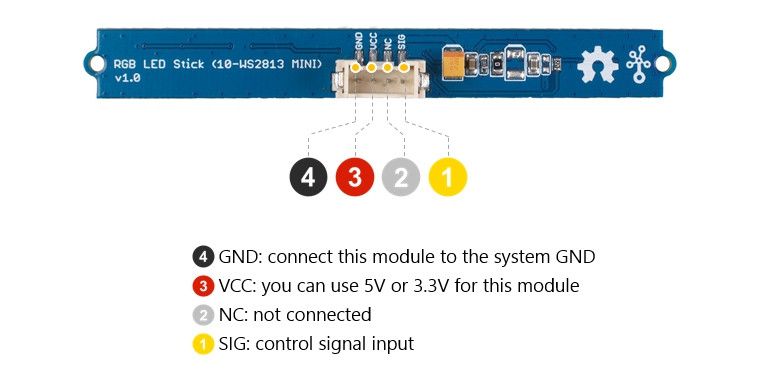

Pinout

[img-25668-left-desc_default]

Part List

Links

• Wiki Grove - RGB LED Stick (10 - WS2813 Mini)
• Datasheet WS2813-Mini
