Note! Not for professional use. Do not use to control mains-powered devices despite the relay's markings. For use only below 50VAC/DC.

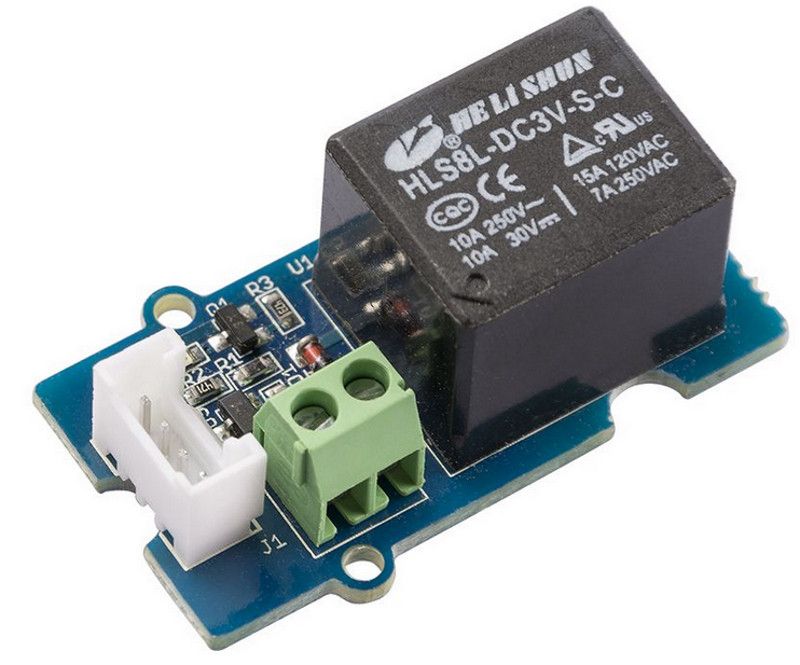

Grove Relay can handle the current up to 5A for long periods of time. When the relay is switched on, the LED will light up and the relay will allow current to flow.

Features

• Operate voltage: 3.3V-5V
• Input current: 100mA
• Rated load: C 5A@30VDC
• Contact resistance: 50mΩ @6VDC 1A
• Insulation resistance: 100MΩ 10ms Max.
• Operate time: 10ms Max.
• Release time: 5ms Max.
• Input interface: Digital

Links

• Wiki Grove - Relay
• Grove - Relay Schematic and PCB in Eagle format
• Grove - Relay PCB in PDF format
• Grove - Relay Schematic in PDF format
• HLS8-T73 Series Relay Datasheet
