Grove PIR Motion Sensor - Large Lens version

Name: Grove PIR Motion Sensor - Large Lens version
Brand: Seeed Studio
SKU: SEEED-101020060
Price: 16.11 EUR
Availability: InStock

Temporarily out of stock

SKU#: SEEED-101020060

Grove PIR Motion Sensor - Large Lens version

Grove PIR Motion Sensor - Large Lens version

Temporarily out of stock

SKU#: SEEED-101020060

Seeed Studio 101020060 - PIR Motion Sensor - Large Lens version

16,11 €

Temporarily out of stock

Add a comment about the product to my order

Fast delivery from Finland

Reliable and versatile delivery options

Payment options

Invoice, online payments, cards, MobilePay

Product Description

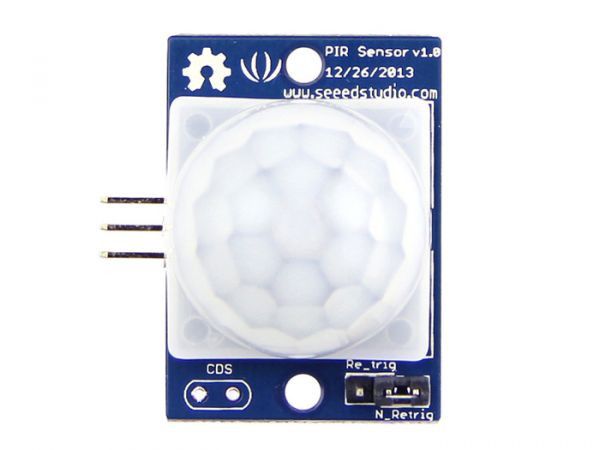

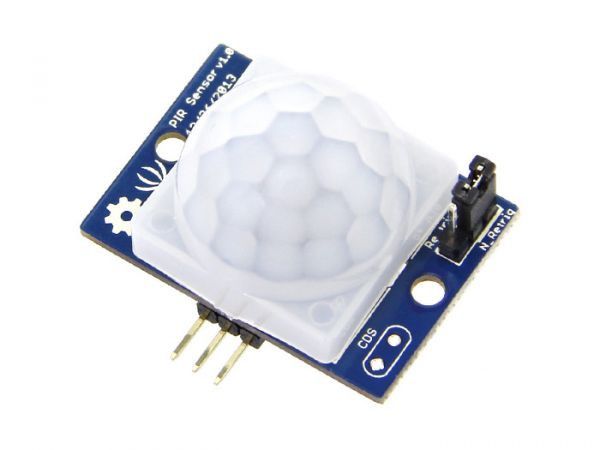

PIR（Passive Infrared Detection）are used to detect motion of human movement. This version has a large lens which can support long range and wide angle. 2.54mm standard connector is easy to fix it anywhere.

Want to know more about how the PIR sensor works with Arduino and Raspberry pi, please click here to view the blog. If you need tutorials for operating the sensor, please click here to view the wiki.

Features

Long-range
Wide-angle
Low consumption
DC 3.0-5.5V power supplier

Specifications

Input Voltage: DC3.0-5.5V
Current: 100uA(max)
Output signal: 0,VCC (Output high when motion detected)
Sentry Angle: 120°
Connector:3Pin 2.54mm pitch
Size： L36*W26*H21(mm)

Technical details

Dimensions	45mm x35mm x19.5mm
Weight	G.W 6.5g
Battery	Exclude

Part List

PIR Motion Sensor - Large Lens version

Product Information

Availability Temporarily out of stock
Manufacturer Seeed Studio
Product path Home Development Cards Modules Grove Grove PIR Motion Sensor - Large Lens version
SKU SEEED-101020060
Attributes
- Weight 6.5g
- Manufacturer's model 101020060
- Click for more details https://www.seeedstudio.com/PIR-Motion-Sensor-Large-Lens-version.html
- Dimensions 45 x 35 x 19.5mm
