PRODUCT DETAILS

Key Features

• 3.3V/5V power supply compatible
• Changeable I2C address
• SPI available
• Low power consumption
• Yellow and Blue two-colour 128×64 pixels
• High contrast, high brightness
• Wide operating temperature range: -40℃ ~ +85 ℃

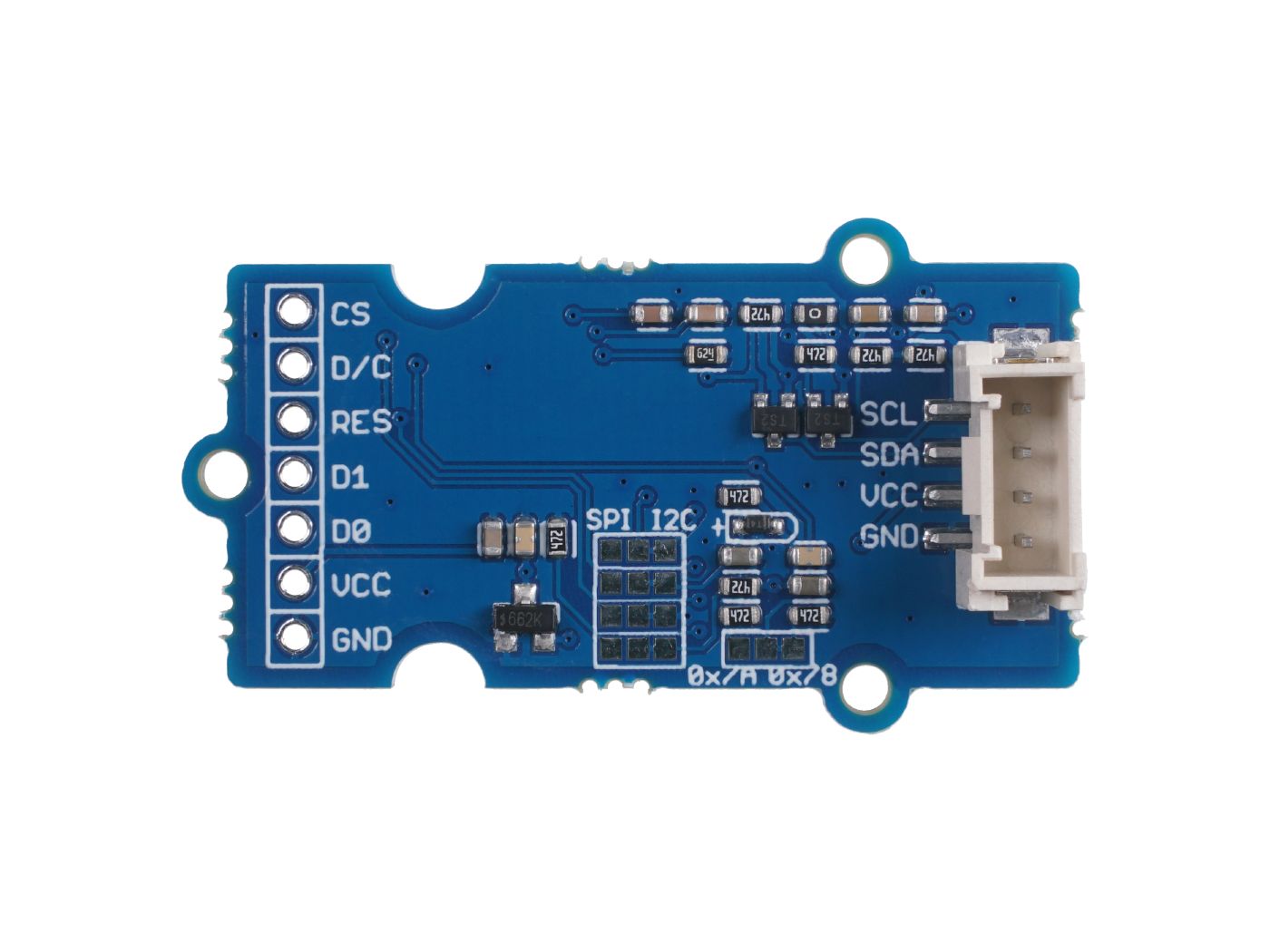

• Grove connector is hidden on the back

Description

The Grove - OLED Yellow&Blue Display 0.96 (SSD1315) is a blue and yellow bi-colour display with 128*64 resolution. Compared with LCDs, there are many advantages of OLED(Organic Light Emitting Diode) like self-emission, high contrast ratio, slim/thin outline, wide viewing angle and low power consumption. The display works on both 3.3V and 5V supply voltage.

You can use either the I2C or SPI interface to light up the display with your microcontroller to display words, images, and whatever you want. SPI helps to get the quicker images reaction which brings a better product experience.

Specification

Links

• Wiki Grove - OLED Yellow&Blue Display 0.96(SSD1315) - SPI/IIC -3.3V/5V
• Grove Selection Guide

• SSD1315 datasheet
• Schematic files
